D22KH42 (960410183-01) - Dixon 42" Lawn Tractor, 22hp Kohler (2011-06) ENGINE Parts Diagram

42" Lawn Tractor, 22hp Kohler

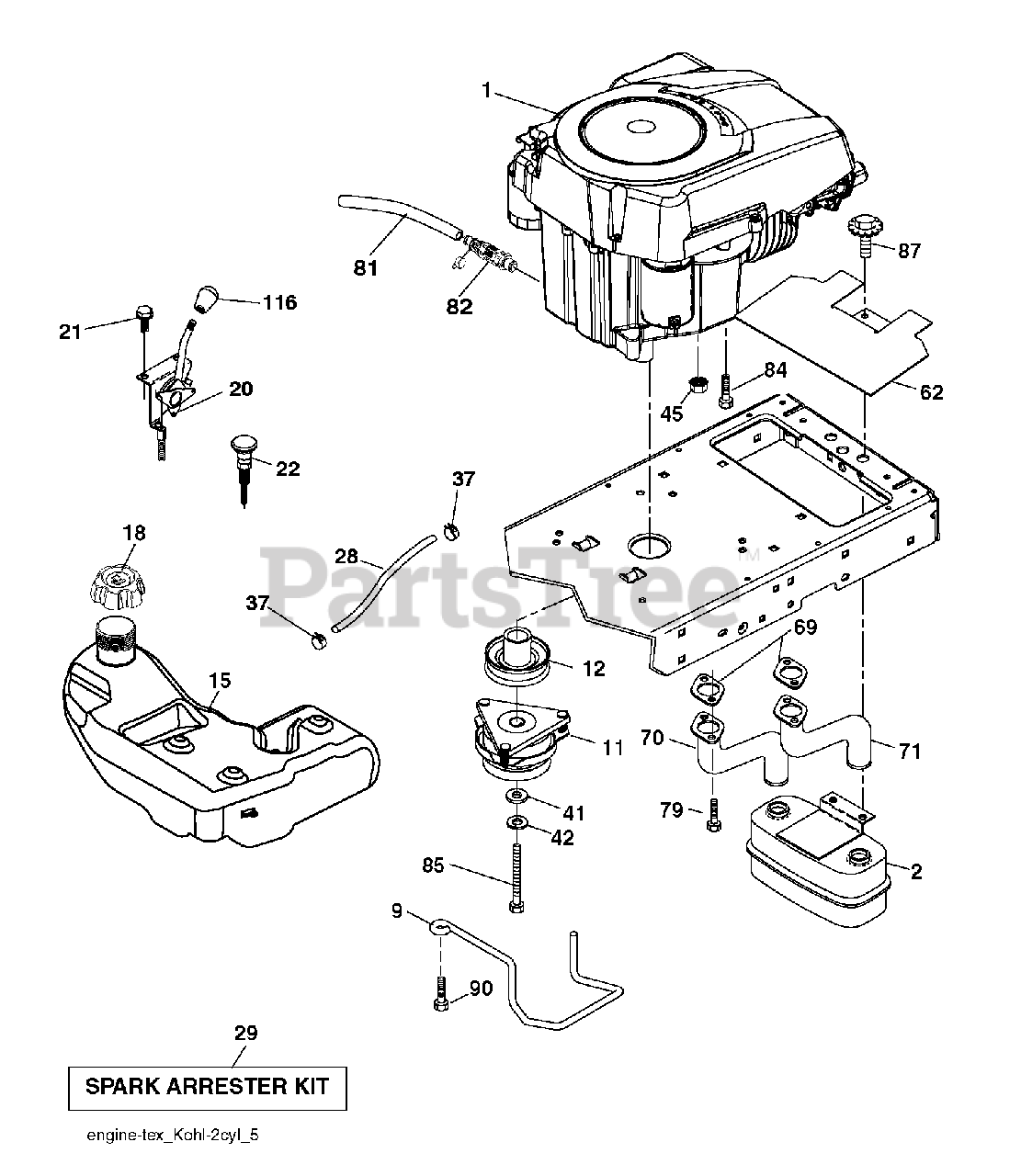

ENGINE Parts Diagram

  • Title
1

Dixon 000000000

No Description Available

Note: Engine Kohl Model No SV715-3028 (438341)

$

$

Not available

2

Dixon 532149723

MUFFLER ASSM

$74.99

$

Usually ships in 3-10 days

0

9

Dixon 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

11

Dixon 532180505

CLUTCH
(Superseded to 583389701)

$399.99

$

Usually ships in 3-10 days

0

12

Dixon 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Dixon 532442448

No Description Available
(Superseded to 532438031)

$206.99

$

Usually ships in 3-10 days

0

18

Dixon 532430214

CAP ASM.FL.RTCHT.3"GRY.E10

$40.99

$

Usually ships in 3-10 days

0

20

Dixon 532426184

CONTROL.THROT.PRO

$93.99

$

Usually ships in 3-10 days

0

21

Dixon 532416358

SCREW.#10 X 0.750.BOS THREAD

$

$

Not available

22

Dixon 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

28

Dixon 863083730

No Description Available
(Superseded to 587044808)

$6.99

$

Usually ships in 3-10 days

0

29

Dixon 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Dixon 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Dixon 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Dixon 873510400

No Description Available
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

62

Dixon 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Dixon 532186054

No Description Available

$

$

Not available

70

Dixon 532146699

PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

71

Dixon 532146700

PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

79

Dixon 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Dixon 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Dixon 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Dixon 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

85

Dixon 532173937

No Description Available
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Dixon 532198239

BOLT.5/16-18UNCX1.W/SE

$7.49

$

In Stock, only 4 left!

0

90

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

116

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0
