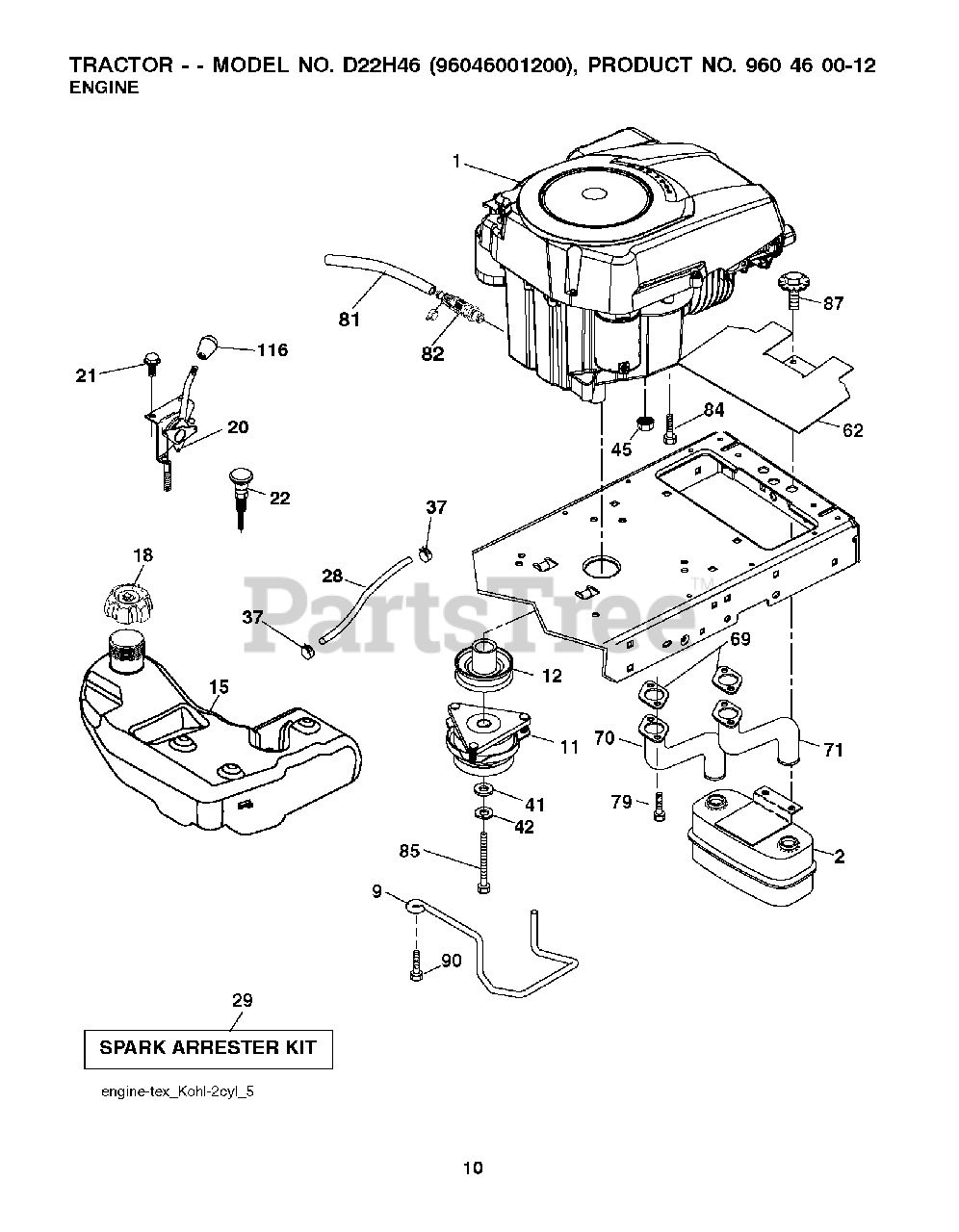

D22H46 (960460012-00) - Dixon 46" Lawn Tractor, 22hp Kohler (2010-02) ENGINE Parts Diagram

46" Lawn Tractor, 22hp Kohler

ENGINE Parts Diagram

  • Title

1

Dixon TBD

TBD

Note: ENGINE KOHL MODEL SV715-0026

$

$

Not available

2

Dixon 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Dixon 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

11

Dixon 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

12

Dixon 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Dixon 532400021

TANK.FUEL.SIDE-FILL.3.NON-EPA
(Superseded to 532442448)

$206.99

$

Usually ships in 3-10 days

0

18

Dixon 532430218

CAP.ASM.FUEL.TANK.3"BLACK
(Superseded to 584248701)

$17.99

$

Usually ships in 3-10 days

0

20

Dixon 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, only 3 left!

0

21

Dixon 532416358

SCREW.#10 X 0.750.BOS (2 2)

$

$

Not available

22

Dixon 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

28

Dixon 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Dixon 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Dixon 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

Dixon 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Dixon 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Dixon 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

62

Dixon 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Dixon TBD

TBD

Note: ORDER FROM ENGINE MFG

$

$

Not available

70

Dixon 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

Note: LH

$22.99

$

In Stock, only 1 left!

0

71

Dixon 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

Note: RH

$20.99

$

In Stock, only 1 left!

0

79

Dixon 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Dixon 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

82

Dixon 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Dixon 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

85

Dixon 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Dixon 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

116

Dixon 532424659

RP KNOB SOFT TOUCH
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0
