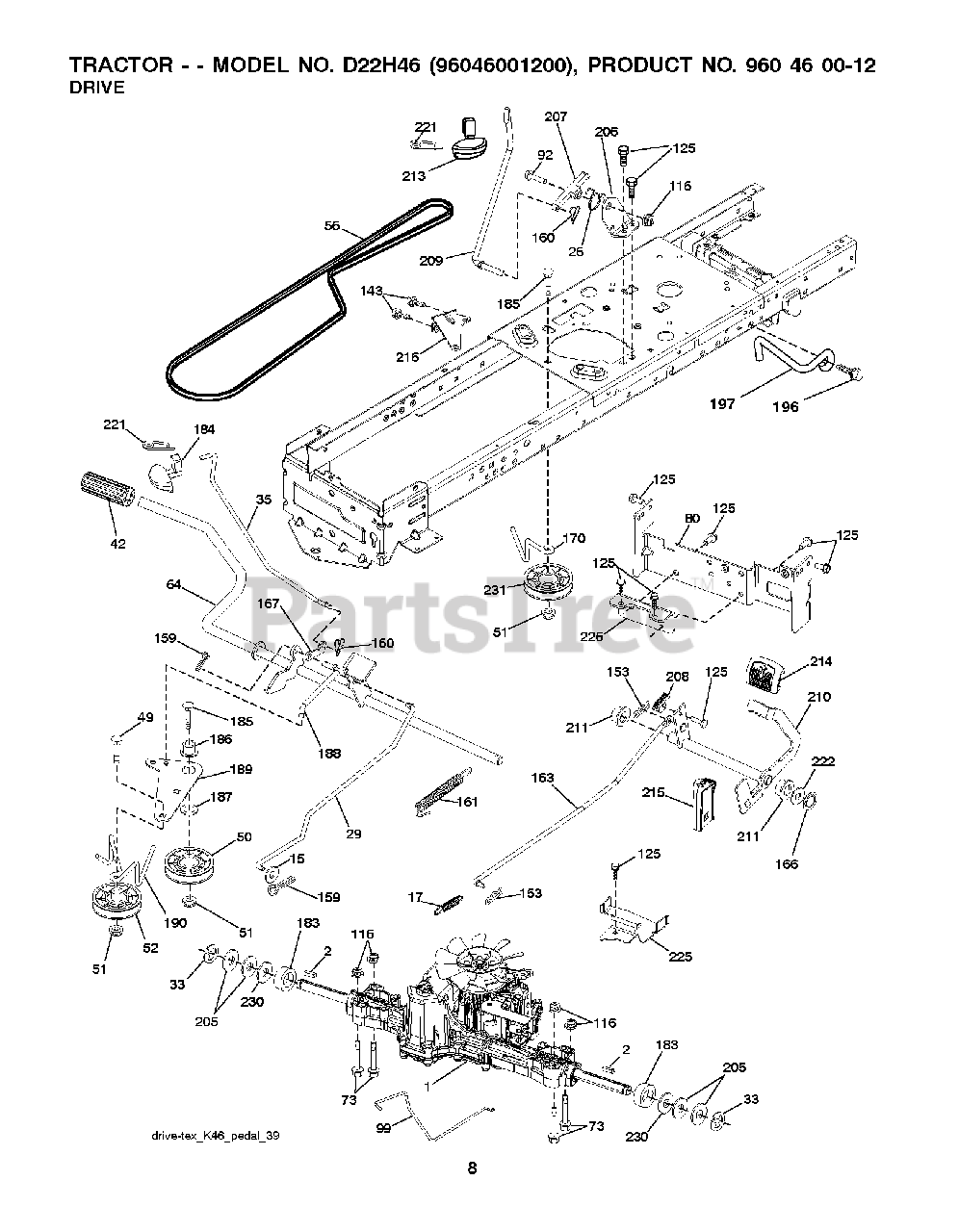

D22H46 (960460012-00) - Dixon 46" Lawn Tractor, 22hp Kohler (2010-02) DRIVE Parts Diagram

46" Lawn Tractor, 22hp Kohler

DRIVE Parts Diagram

  • Title

1

Dixon TBD

TBD

Note: TUFFTORQ K46BT ORDER PARTS FROM TRANSAXLE MFG

$

$

Not available

2

Dixon 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Dixon 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

26

Dixon 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

29

Dixon 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

Dixon 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Dixon 532197275

ROD.BRAKE.PARKING.STEALTH

$26.99

$

Usually ships in 3-10 days

0

42

Dixon 532124872

Pedal Cover
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

49

Dixon 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Dixon 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

Dixon 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Dixon 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Dixon 532130969

V-BELT.MOWER.92.40.42/K46

$31.99

$

In Stock, Qty 20+

0

64

Dixon 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

73

Dixon 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

80

Dixon 532410024

STRAP TORQUE
(Superseded to 532440619)

$24.99

$

Usually ships in 3-10 days

0

92

Dixon 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Dixon 532415742

ROD.SPRING.BYPASS.K46.LT.Z

$10.99

$

In Stock, only 2 left!

0

116

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Dixon 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Dixon 532124788

Retainer, M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Dixon 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Dixon 532169484

RETAINER CLIP

$

$

Not available

161

Dixon 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

Dixon 532401034

ROD.CONTROL.PEDAL.K46
(Superseded to 532448275)

$

$

Not available

166

Dixon 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Dixon 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Dixon 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

In Stock, only 1 left!

0

183

Dixon 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Dixon 532411716

HANDLE.PRKG.BRAKE.STLTH.TX.RED

$

$

Not available

185

Dixon 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Dixon 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Dixon 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Dixon 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Dixon 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

Dixon 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

196

Dixon 532170006

ASM.CROSS.SHAFT.REAR.CRD.0510

$

$

Not available

197

Dixon 532195804

LINK.CLUTCH.ANIT-ROTAT

$8.99

$

In Stock, only 4 left!

0

205

Dixon 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

206

Dixon 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$5.99

$

Usually ships in 3-10 days

0

207

Dixon 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Dixon 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Dixon 532199466

ROD.CONTROL.CRUISE.STEALTH.TEX

$26.99

$

Usually ships in 3-10 days

0

210

Dixon 532400980

ROCKER.ASM.PEDAL.CONTR

$37.99

$

In Stock, only 1 left!

0

211

Dixon 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

213

Dixon 532412324

KNOB.CONTROL.CRUISE

$7.99

$

Usually ships in 3-10 days

0

214

Dixon 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Dixon 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

216

Dixon 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

Dixon 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

Dixon 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

225

Dixon 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

226

Dixon 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 3-10 days

0

230

Dixon 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

231

Dixon 532407287

IDLER.V-GROOVE.1.688.OFFSET

Note: OFFSET

$22.99

$

In Stock, Qty 9

0
