D21KH46 (960460035-00) - Dixon 46" Lawn Tractor, 21hp Kohler (2011-08) ENGINE Parts Diagram

46" Lawn Tractor, 21hp Kohler

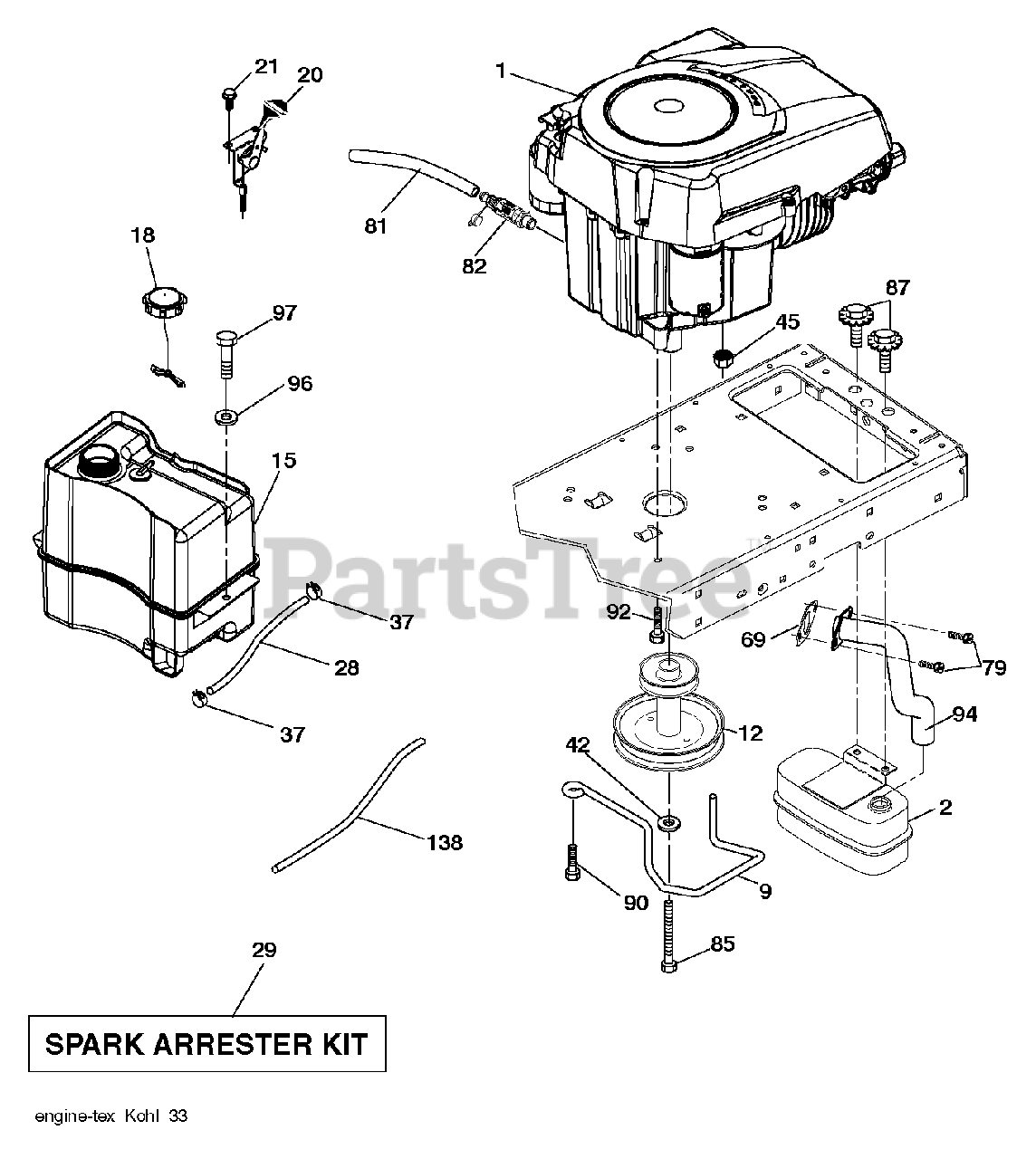

ENGINE Parts Diagram

  • Title
1

Dixon 000000000

No Description Available

Note: ENGINE KOHLER MODEL SV610-3213 (438324)

$

$

Not available

2

Dixon 532188655

No Description Available

$45.99

$

In Stock, only 2 left!

0

9

Dixon 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

12

Dixon 532405472

No Description Available

$48.99

$

In Stock, only 1 left!

0

15

Dixon 532433003

No Description Available

$169.99

$

Usually ships in 3-10 days

0

18

Dixon 532438596

No Description Available
(Superseded to 581075501)

$37.99

$

In Stock, only 1 left!

0

20

Dixon 532183897

No Description Available
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

21

Dixon 532416358

SCREW.#10 X 0.750.BOS THREAD

$

$

Not available

28

Dixon 532401137

No Description Available
(Superseded to 587044822)

$11.99

$

In Stock, Qty 9

0

29

Dixon 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Dixon 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

42

Dixon 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Dixon 873510400

OBSOLETE - NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

69

Dixon 532185909

No Description Available

$4.99

$

In Stock, Qty 9

0

79

Dixon 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 5

0

81

Dixon 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

82

Dixon 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 2 left!

0

85

Dixon 532173937

OBSOLETE - BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Dixon 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, only 2 left!

0

90

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

92

Dixon 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

94

Dixon 532188654

No Description Available
(Superseded to 583955301)

$34.99

$

Usually ships in 3-10 days

0

96

$6.49

$

Usually ships in 3-10 days

0

97

Dixon 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

138

Dixon 532414119

No Description Available
(Superseded to 532448562)

$

$

Not available
