D20KH42 (960460043-01) - Dixon 42" Lawn Tractor, 20hp Kohler (2013-08) CHASSIS ENCLOSURES Parts Diagram

42" Lawn Tractor, 20hp Kohler

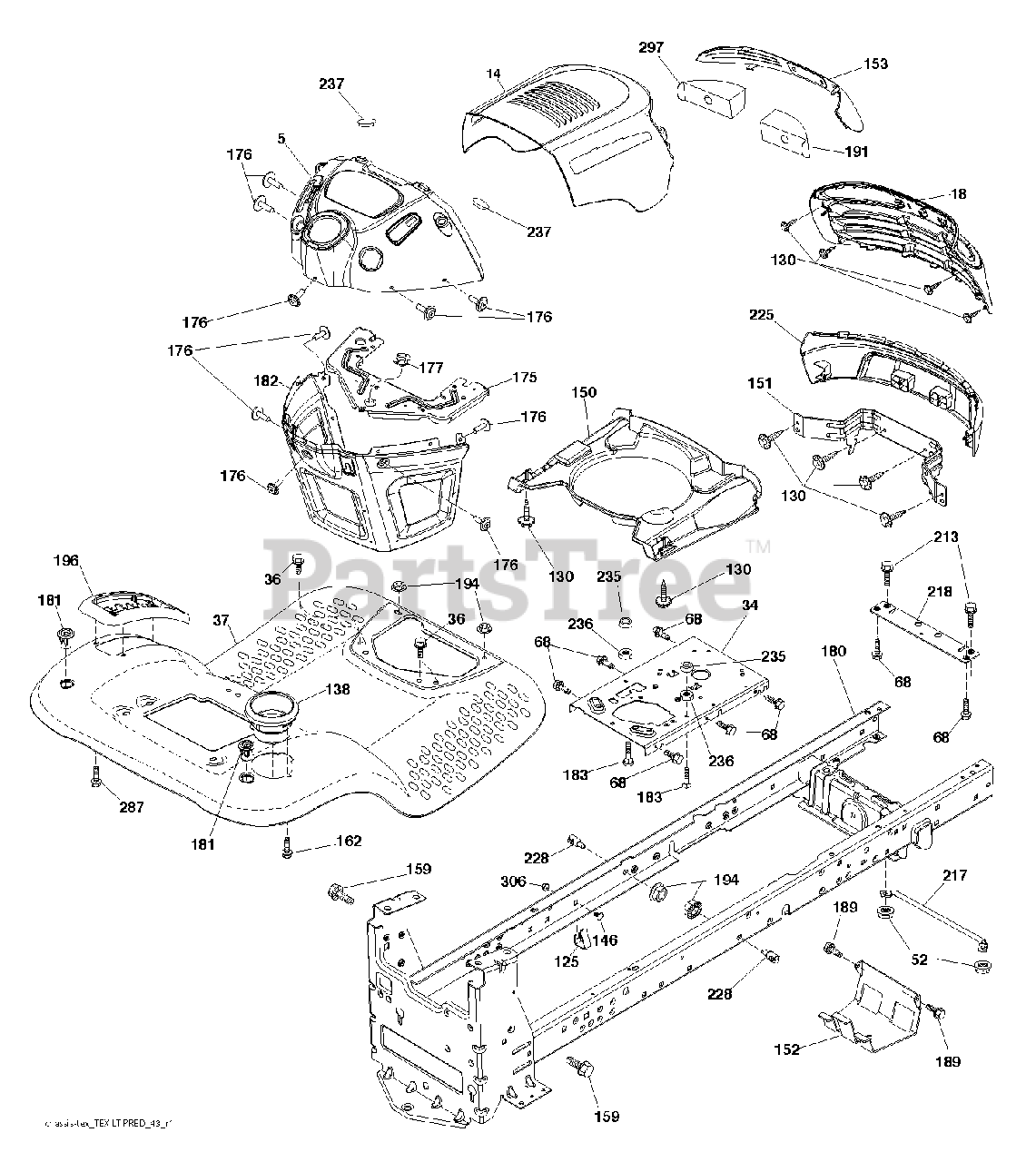

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Dixon 532426009

DASH.PRED.LT.CC.ICY.SRVMDR.BLK

$54.99

$

Usually ships in 3-10 days

0

14

Dixon 532446021

No Description Available
(Superseded to 587483501)

$

$

Not available

18

Dixon 532444884

No Description Available

$113.99

$

Usually ships in 3-10 days

0

34

Dixon 580910801

No Description Available

$68.99

$

In Stock, only 1 left!

0

36

Dixon 817060512

OBSOLETE - SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 532444887

FENDER.TLT.W/CPH.BLUE

$109.99

$

Usually ships in 3-10 days

0

52

Dixon 873680500

OBSOLETE - LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

68

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

125

Dixon 581684801

No Description Available

$3.99

$

Usually ships in 3-10 days

0

130

Dixon 532416358

SCREW.#10 X 0.750.BOS THREAD

$

$

Not available

138

Dixon 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

146

Dixon 581857901

No Description Available

$6.49

$

Usually ships in 3-10 days

0

150

Dixon 532408310

DUCT.AIR.TOP.VENT.PREDATOR.LT

$24.99

$

Usually ships in 3-10 days

0

151

Dixon 532187568

No Description Available

$28.99

$

Usually ships in 3-10 days

0

152

Dixon 532199535

SHIELD BROWNING

$

$

Not available

153

Dixon 532444264

LENS.PREDATOR.LT

$22.99

$

Usually ships in 3-10 days

0

159

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

162

Dixon 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

175

Dixon 532199472

No Description Available

$28.99

$

Usually ships in 3-10 days

0

176

Dixon 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Dixon 532195228

No Description Available

$5.99

$

Usually ships in 3-10 days

0

180

Dixon 532195457

CHASSIS
(Superseded to 579841501)

$250.99

$

Usually ships in 3-10 days

0

181

Dixon 532404796

OBSOLETE - FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Dixon 532407176

No Description Available

$79.99

$

Usually ships in 3-10 days

0

183

Dixon 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Dixon 817000512

OBSOLETE - SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

191

Dixon 532416502

INSERT.REFLECT.PREDATOR.LT.RH

$28.99

$

Usually ships in 3-10 days

0

194

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Dixon 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

213

Dixon 874760512

No Description Available
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

217

Dixon 532409167

No Description Available

$13.99

$

In Stock, only 2 left!

0

218

Dixon 532196395

No Description Available

$7.99

$

Usually ships in 3-10 days

0

225

Dixon 532444885

BUMPER.PREDATOR.LT.BLACK

$48.99

$

Usually ships in 3-10 days

0

228

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Dixon 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Dixon 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

237

Dixon 532403704

No Description Available

$4.99

$

Usually ships in 3-10 days

0

287

Dixon 817600406

SCREW

$6.49

$

Usually ships in 3-10 days

0

297

Dixon 532401827

REFLECTOR.INSERT.PRED.LH.LT

$28.99

$

Usually ships in 3-10 days

0

306

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

--

Dixon 532432372

No Description Available

$169.99

$

Usually ships in 3-10 days

0
