D2-163701 (LT-1637) - Toro Lawn Tractor (1983) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

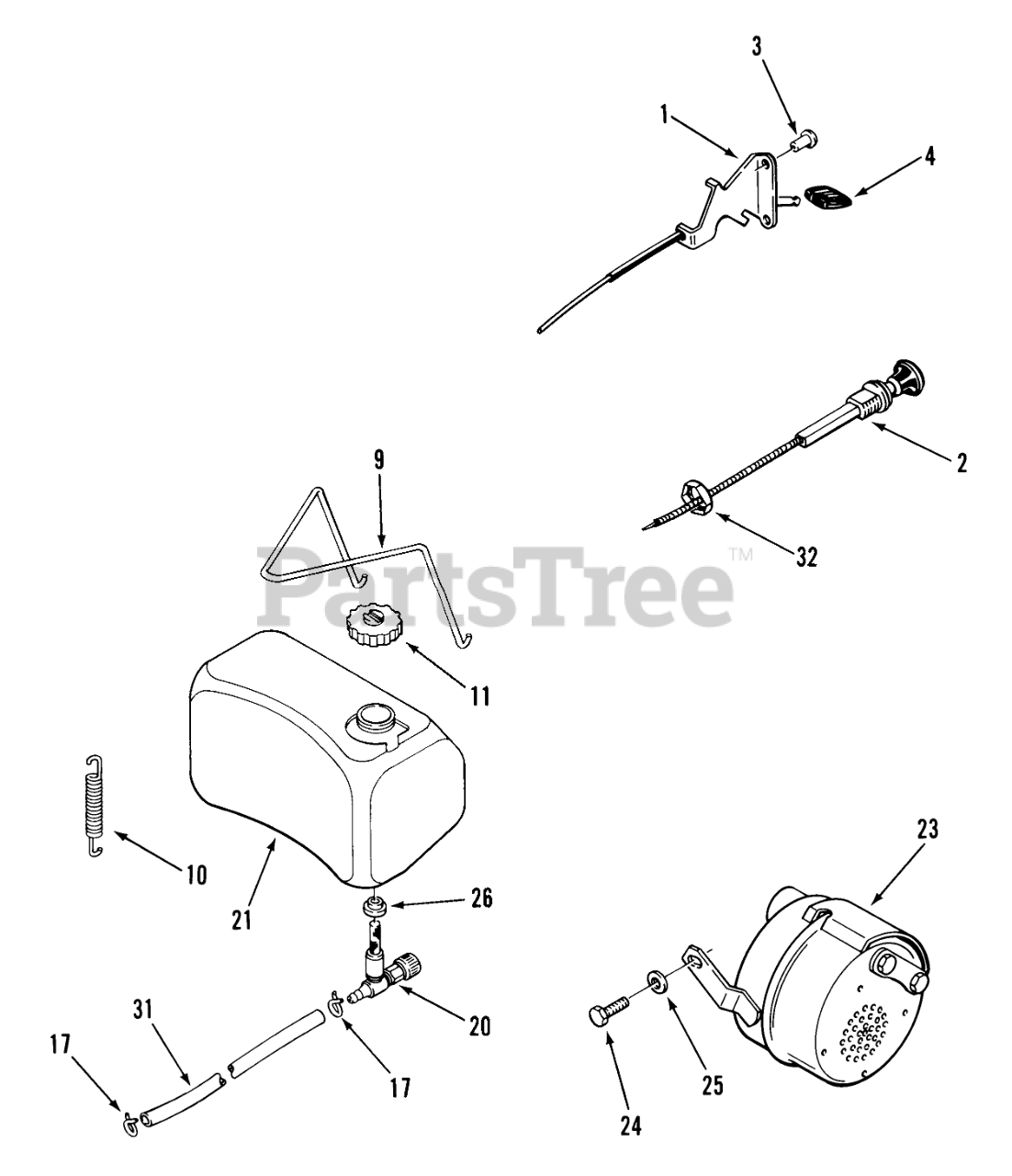

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 109533

CONTROL- THROTTLE

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

1

Toro 109532

Choke/Throttle Control LT-1100 Only

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

2

Toro 109483

CONTROL-CHOKE

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

3

Toro 923795

RIVET-4

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$0.99

$

Usually ships in 3-6 days

0

4

Toro 108917

KNOB-THROTTLE

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$3.49

$

In Stock, only 1 left!

0

9

Toro 109960

Hold Down Wire

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

10

Toro 107788

SPRING-EXTENSION

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$14.99

$

Usually ships in 3-6 days

0

11

Toro 109482

Gasoline Cap
(Superseded to 108011)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$61.99

$

In Stock, only 1 left!

0

11

Toro 108011

CAP-GASOLINE

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$61.99

$

In Stock, only 1 left!

0

17

Toro 108898

Clamp
(Superseded to 950154)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

20

Toro 104048

VALVE-FUEL

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$33.99

$

In Stock, only 1 left!

0

21

Toro 109961

Fuel Tank Assy

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

23

Toro 108614

ASSY-MUFFLER

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

24

Toro 908001

Bolt
(Superseded to 321-2)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$3.49

$

In Stock, only 3 left!

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$0.99

$

In Stock, Qty 20+

0

26

Toro 104047

BUSHING
(Superseded to 46-6560)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$5.99

$

In Stock, Qty 17

0

31

Toro 105442

Fuel Hose 18"
(Superseded to 100061)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

31

Toro 9147

Hose
(Superseded to 100061)

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$

$

Not available

32

Toro 109530

NUT-HEX PALNUT

Note: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON LT-832 & LT-1637 MODELS.

$1.49

$

In Stock, only 4 left!

0
