D19KH42 (960410230-03) - Dixon 42" Lawn Tractor, 19hp Kohler (2014-05) MOWER LIFT / DECK LIFT Parts Diagram

42" Lawn Tractor, 19hp Kohler

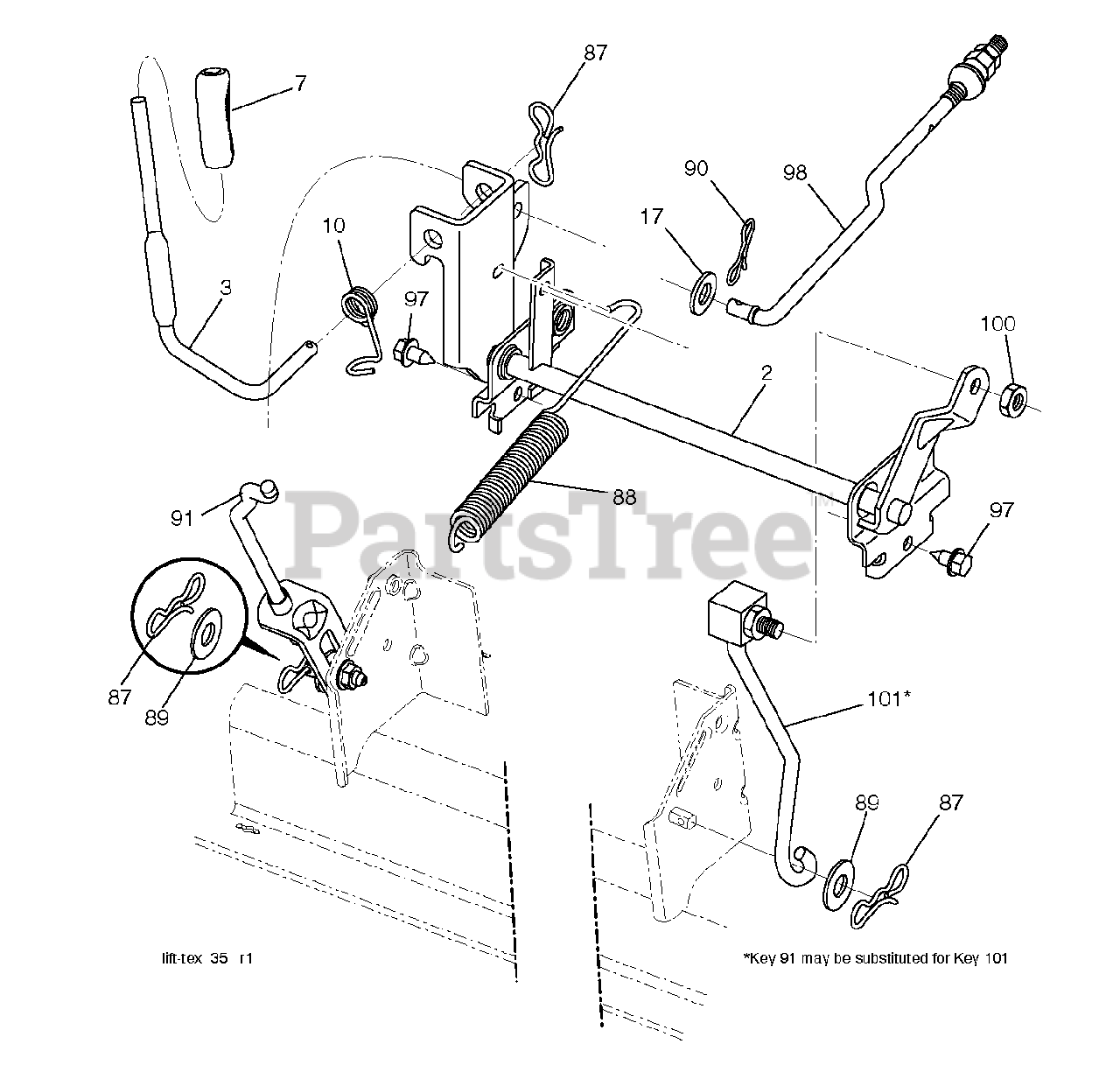

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

2

Dixon 532422027

SHAFT.ASM.CROSS.LIFT

$80.99

$

In Stock, only 1 left!

0

3

Dixon 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available

7

Dixon 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0

10

Dixon 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

17

Dixon 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

87

Dixon 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

Usually ships in 3-10 days

0

88

Dixon 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

89

Dixon 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

90

Dixon 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

91

Dixon 532195181

LINK.ASM.LIFT.REAR

$

$

Not available

97

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

98

Dixon 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, Qty 9

0

100

Dixon 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Dixon 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

In Stock, only 1 left!

0
