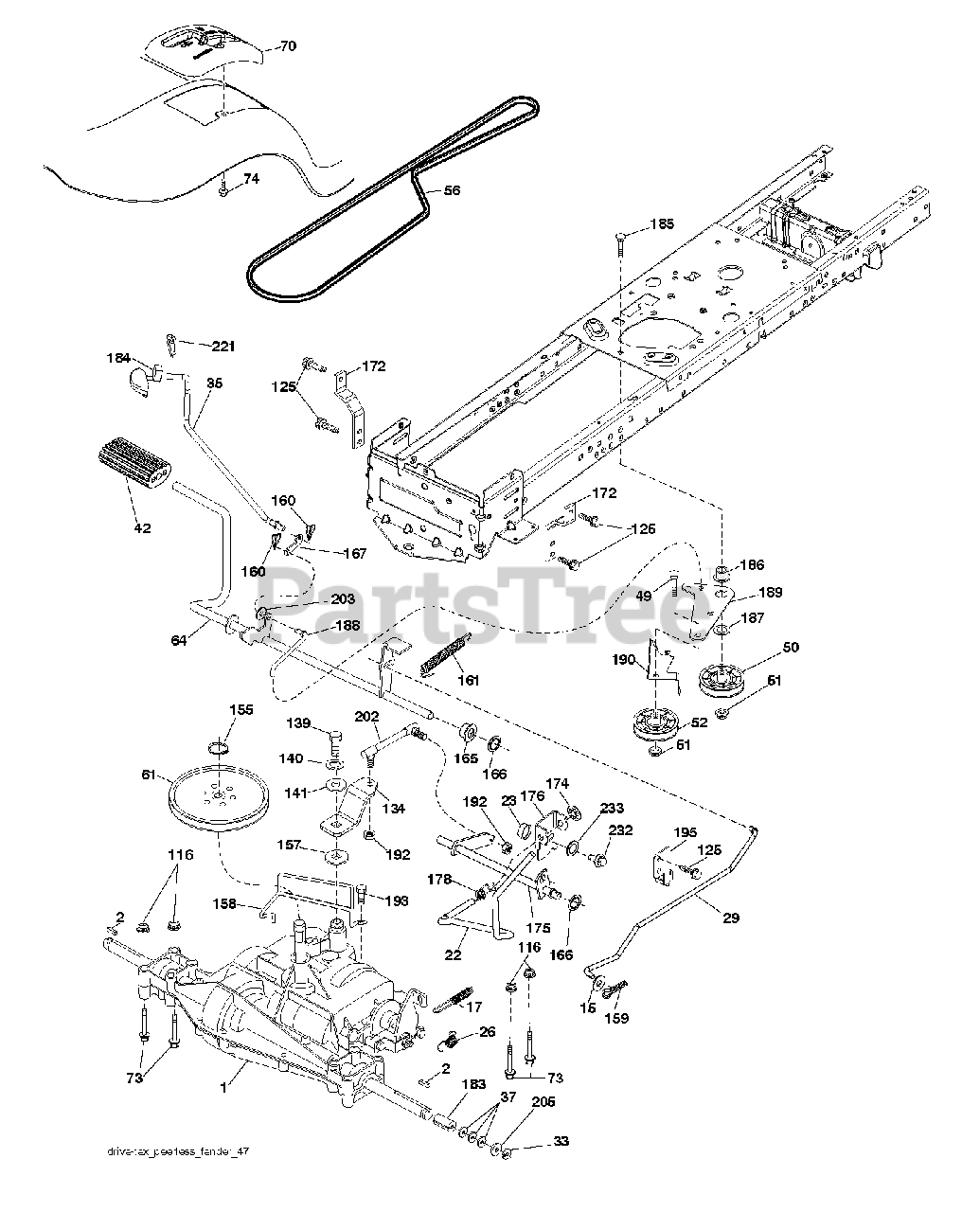

D17K38 (960410228-02) - Dixon 38" Lawn Tractor, 17hp Kohler (2013-04) DRIVE Parts Diagram

38" Lawn Tractor, 17hp Kohler

DRIVE Parts Diagram

  • Title

1

Dixon 000000000

No Description Available

Note: TRANSAXLE PEERLESS 206-565 (197941)

$

$

Not available

2

Dixon 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 7

0

15

Dixon 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Dixon 532197297

No Description Available

$9.49

$

Usually ships in 3-10 days

0

22

Dixon 532197660

No Description Available

$182.99

$

Usually ships in 3-10 days

0

23

Dixon 532121274

No Description Available

$10.99

$

Usually ships in 3-10 days

0

26

Dixon 532197455

No Description Available

$4.99

$

Usually ships in 3-10 days

0

29

Dixon 532197267

No Description Available

$30.99

$

Usually ships in 3-10 days

0

33

Dixon 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Dixon 532401031

No Description Available

$18.99

$

Usually ships in 3-10 days

0

37

Dixon 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

42

Dixon 532124872

No Description Available
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

49

Dixon 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Dixon 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 12

0

51

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Dixon 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Dixon 532194346

No Description Available

$43.99

$

In Stock, Qty 5

0

61

Dixon 532123666

No Description Available

$45.99

$

In Stock, only 1 left!

0

64

Dixon 532196200

No Description Available

$56.99

$

Usually ships in 3-10 days

0

70

Dixon 532411290

No Description Available

$40.99

$

In Stock, only 1 left!

0

73

Dixon 874490540

No Description Available

$4.99

$

Usually ships in 3-10 days

0

74

Dixon 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

116

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Dixon 817000512

OBSOLETE - SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

134

Dixon 532197857

No Description Available

$7.99

$

Usually ships in 3-10 days

0

139

Dixon 874550412

No Description Available
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

140

Dixon 810040400

No Description Available
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

141

Dixon 819091210

No Description Available

$6.99

$

Usually ships in 3-10 days

0

155

Dixon 812000028

No Description Available

$7.49

$

In Stock, Qty 8

0

157

Dixon 532105701

No Description Available

$6.49

$

Usually ships in 3-10 days

0

158

Dixon 532194352

No Description Available

$

$

Not available

159

Dixon 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Dixon 532169484

RETAINER CLIP

$

$

Not available

161

Dixon 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 3 left!

0

165

Dixon 532196212

No Description Available

$6.99

$

Usually ships in 3-10 days

0

166

Dixon 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Dixon 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

172

Dixon 532197657

No Description Available

$6.49

$

Usually ships in 3-10 days

0

174

Dixon 532197289

No Description Available

$6.49

$

In Stock, only 2 left!

0

175

Dixon 532197858

No Description Available

$39.99

$

Usually ships in 3-10 days

0

176

Dixon 532196214

No Description Available

$7.99

$

Usually ships in 3-10 days

0

178

Dixon 532197456

No Description Available

$6.49

$

Usually ships in 3-10 days

0

183

Dixon 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

Dixon 532441407

OBSOLETE - HANDLE.PARKING.BRK.PRED.LT.RED
(Superseded to 532411484)

$66.99

$

Usually ships in 3-10 days

0

185

Dixon 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Dixon 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Dixon 819133210

OBSOLETE - WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Dixon 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Dixon 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

Dixon 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

192

Dixon 532150360

No Description Available

$

$

Not available

193

Dixon 817060512

OBSOLETE - SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

195

Dixon 532197332

No Description Available

$5.99

$

Usually ships in 3-10 days

0

202

Dixon 532197859

No Description Available
(Superseded to 597079401)

$9.49

$

Usually ships in 3-10 days

0

203

Dixon 819111116

No Description Available
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Dixon 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

221

Dixon 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

232

Dixon 874780716

No Description Available

$4.99

$

Usually ships in 3-10 days

0

233

Dixon 532405296

No Description Available

$6.49

$

Usually ships in 3-10 days

0
