D17K38 (960410228-01) - Dixon 38" Lawn Tractor, 17hp Kohler (2012-07) MOWER LIFT / DECK LIFT Parts Diagram

38" Lawn Tractor, 17hp Kohler

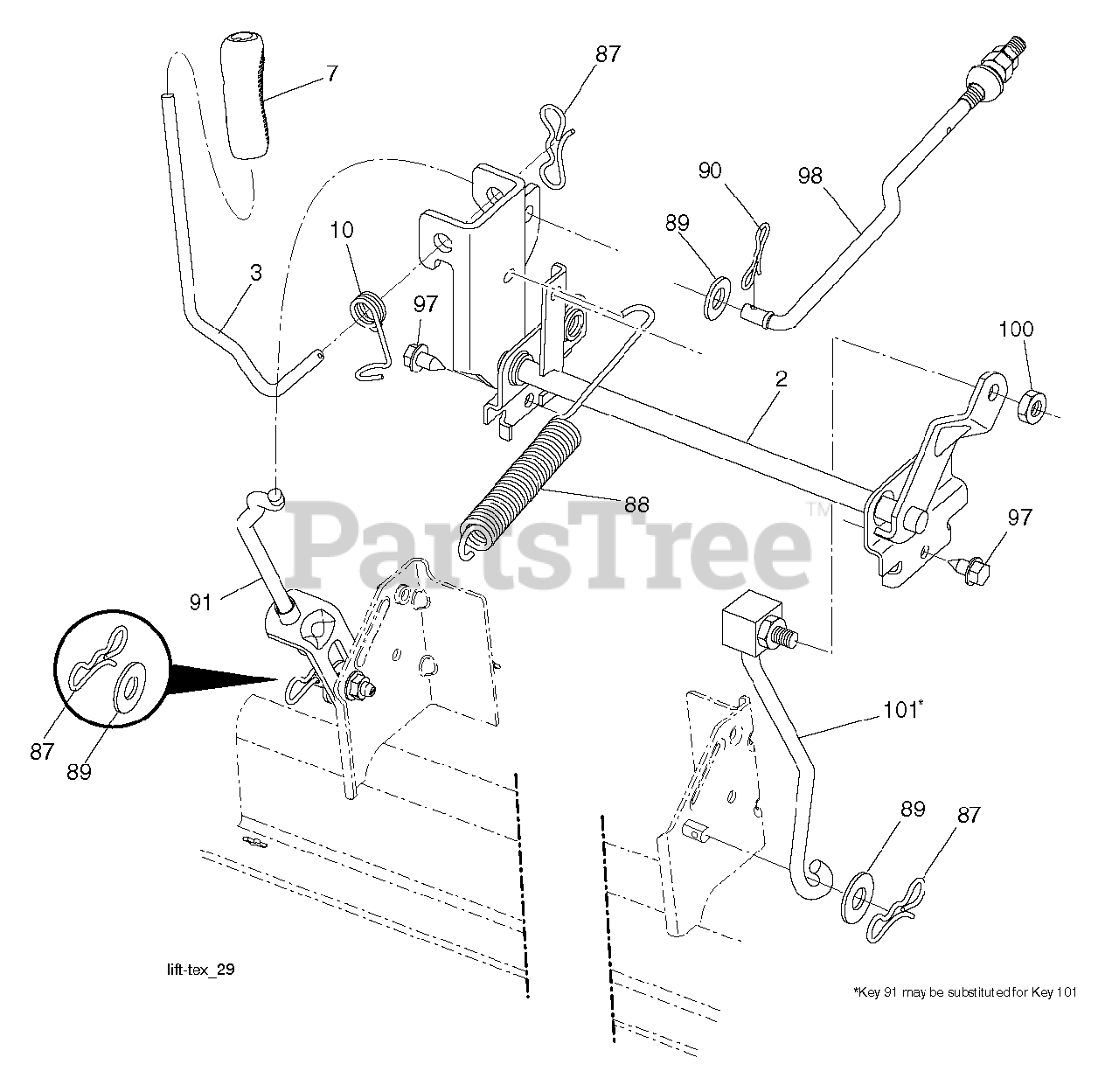

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

2

Dixon 532422027

SHAFT.ASM.CROSS.LIFT

$80.99

$

In Stock, only 1 left!

0

3

Dixon 532195231

LEVER.LIFT.HANDLE.LT

$

$

Not available

7

Dixon 580962301

No Description Available
(Superseded to 532411555)

$9.49

$

In Stock, only 1 left!

0

10

Dixon 532196314

SPRING.TORSION.LIFT.HA

$6.49

$

In Stock, only 2 left!

0

87

Dixon 532194209

PIN.COTTER.7/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

88

Dixon 532410710

SRPING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

89

Dixon 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 20+

0

90

Dixon 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

91

Dixon 532195181

LINK.ASM.LIFT.REAR

$

$

Not available

97

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

98

Dixon 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

$11.99

$

In Stock, Qty 9

0

100

Dixon 873930600

OBSOLETE - LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Dixon 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

$18.99

$

In Stock, only 1 left!

0
