D160H22 (961420109-01) - Dixon Walk-Behind Mower (2014-04) ENGINE Parts Diagram

Walk-Behind Mower

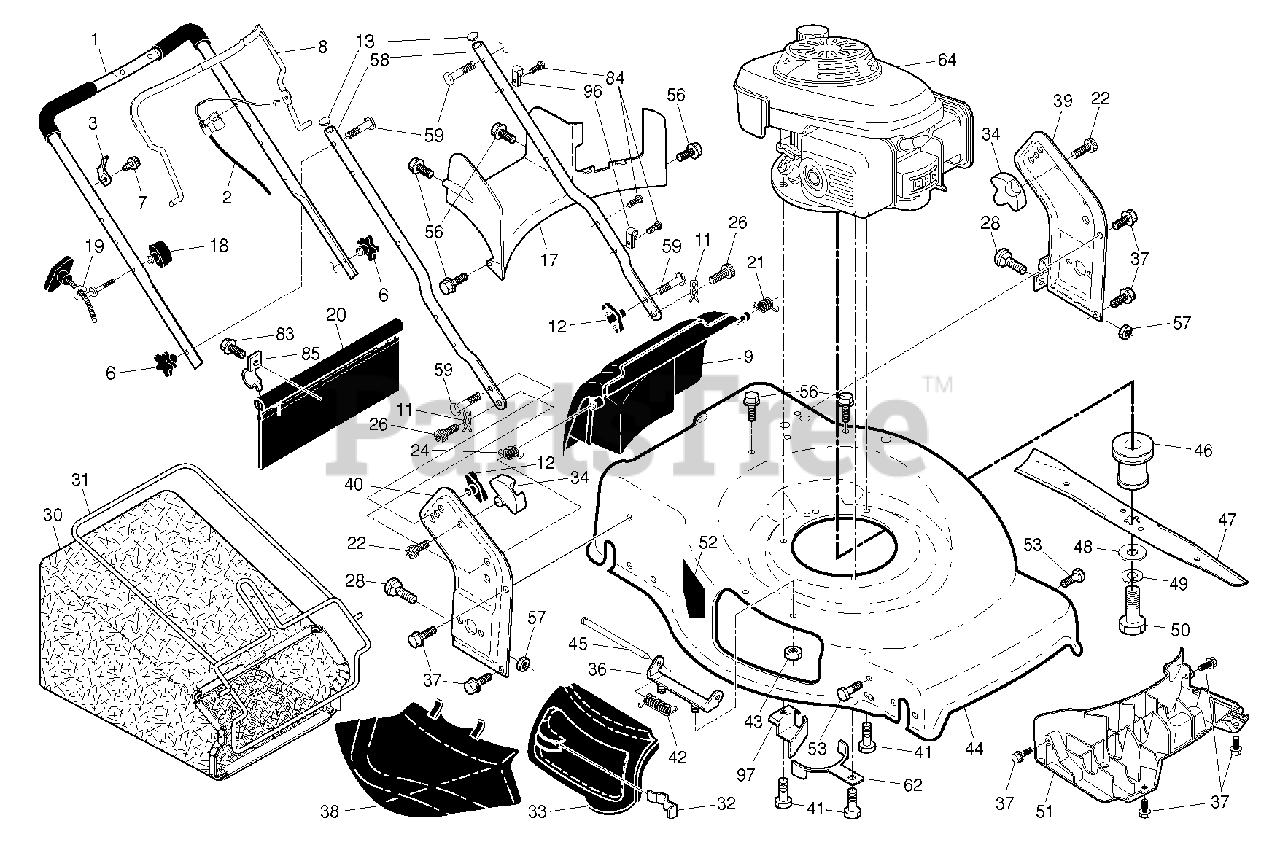

ENGINE Parts Diagram

  • Title

1

Dixon 532427657

HANDLE.ASM.UP.BLK.W/GRIP

Note: Includes Foam Grip

$46.99

$

Usually ships in 3-10 days

0

2

Dixon 532424983

CABLE.MZR.ZONE.CONTROL

$17.99

$

In Stock, Qty 8

0

3

Dixon 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

6

Dixon 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

7

Dixon 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Dixon 532428623

BAIL.MZR.EZ2.DSTR.22+.BLACK

$13.99

$

Usually ships in 3-10 days

0

9

Dixon 585847601

No Description Available

$45.99

$

In Stock, only 3 left!

0

11

Dixon 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

12

Dixon 532191938

No Description Available
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

13

Dixon 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Dixon 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

18

Dixon 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

19

Dixon 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

20

Dixon 532444501

SKIRT.REAR.22PLUS.RGD.LW.2012

$13.99

$

Usually ships in 3-10 days

0

21

Dixon 532419949

SPRING.LH.GRAY

$6.49

$

In Stock, Qty 9

0

22

Dixon 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Dixon 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, only 4 left!

0

26

Dixon 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

28

Dixon 586212501

No Description Available

$4.99

$

In Stock, Qty 8

0

30

Dixon 580947301

GBAG.A1640010.BLACK.GENERIC
(Superseded to 580947302)

$87.99

$

Usually ships in 3-10 days

0

31

Dixon 585054702

No Description Available

$34.99

$

In Stock, Qty 6

0

32

Dixon 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Dixon 532432642

DOOR.MULCH.22.BLACK.MULTI-BRAN

$10.99

$

In Stock, Qty 13

0

34

Dixon 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

36

Dixon 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

37

Dixon 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

38

Dixon 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 8

0

39

Dixon 585900702

BRACKET.ASM.HANDLE.LT.22+.BLAC

$

$

Not available

40

Dixon 585900802

BRACKET.ASM.HANDLE.RT.22+.BLAC

$27.99

$

In Stock, only 1 left!

0

41

Dixon 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Dixon 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

43

Dixon 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

44

Dixon 581708310

HOUSING.22+.RGD.MC.WO.SP.BLUE

$182.99

$

Usually ships in 3-10 days

0

45

Dixon 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

46

Dixon 581851501

ADAPTER.BLADE.25MM.3MPH

$17.99

$

In Stock, Qty 20+

0

47

Dixon 532421825

BLADE.22+.PREMIUM/PREC.FGD/RGD

$20.99

$

In Stock, only 2 left!

0

48

Dixon 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

49

Dixon 532850263

No Description Available
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

50

Dixon 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Dixon 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

52

Dixon 532404763

No Description Available
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Dixon 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

56

Dixon 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Dixon 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Dixon 532441196

HANDLE.LOWER.22+BT.2PC.BLK

$

$

Not available

59

Dixon 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

62

Dixon 581115302

BRACKET.BELT.GUIDE.22+.BZP

$

$

Not available

64

Dixon 000000000

No Description Available

Note: HONDA GCV160-LAOS3B FOR SERVICE PARTS 1-800-426-7701

$

$

Not available

83

Dixon 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

84

Dixon 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

85

Dixon 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

96

Dixon 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

97

Dixon 581313802

BRACKET.DRIVE.COVER.RGD.

$11.99

$

Usually ships in 3-10 days

0
