D160H22 (961420109-00) - Dixon Walk-Behind Mower (2013-01) DRIVE Parts Diagram

Walk-Behind Mower

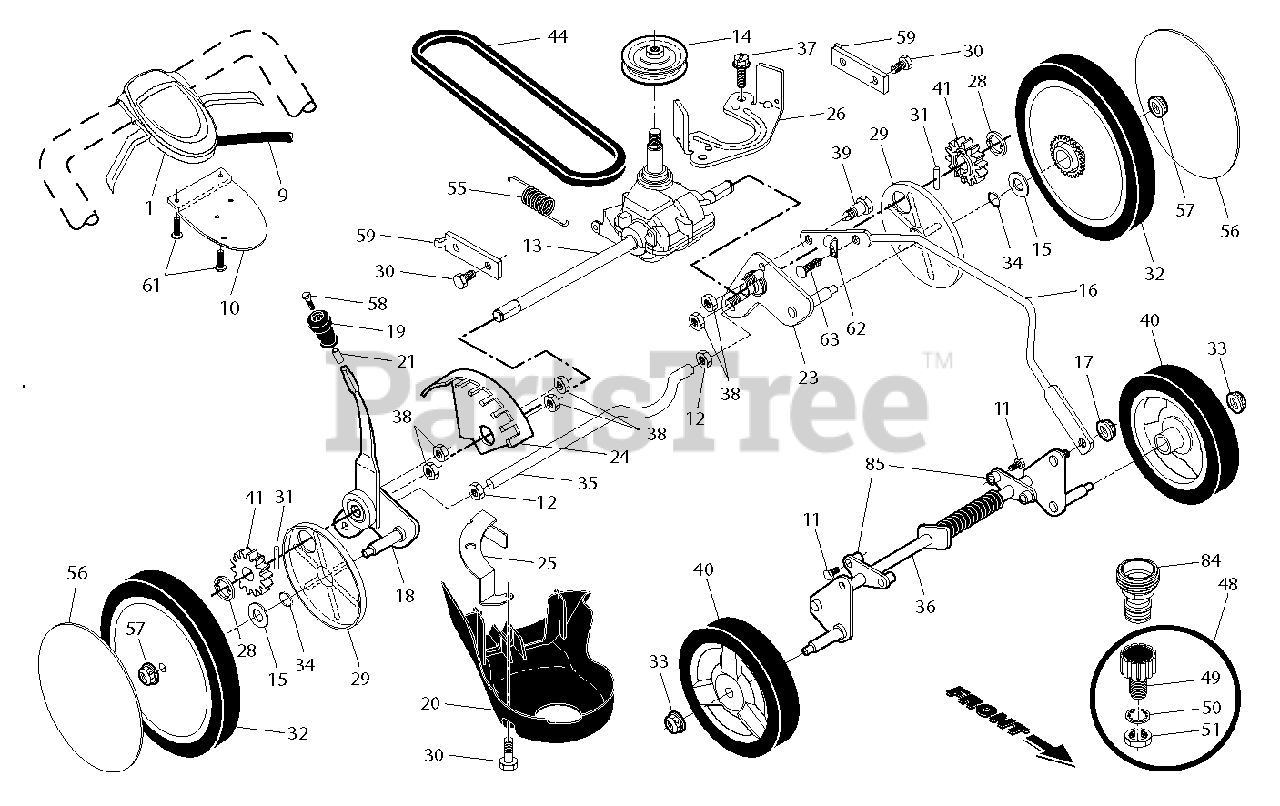

DRIVE Parts Diagram

  • Title

1

Dixon 532435508

No Description Available
(Superseded to 581950506)

Note: Includes Cable

$96.99

$

In Stock, only 1 left!

0

9

Dixon 532431650

CABLE.CONTROL.22RGD.GEN2

$43.99

$

In Stock, Qty 8

0

10

Dixon 532432790

No Description Available

$

$

Not available

11

Dixon 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

12

Dixon 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

13

Dixon 581680801

No Description Available
(Superseded to 532434564)

$148.99

$

In Stock, Qty 20+

0

14

Dixon 532194128

No Description Available

$20.99

$

In Stock, Qty 10

0

15

Dixon 532088348

No Description Available

$7.49

$

In Stock, Qty 6

0

16

Dixon 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$20.99

$

In Stock, only 1 left!

0

17

Dixon 532751153

No Description Available

$4.99

$

In Stock, only 2 left!

0

18

Dixon 532436459

KIT.SEL.ASM.22+.HI-WHEEL

$

$

Not available

19

Dixon 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$6.99

$

Usually ships in 3-10 days

0

20

Dixon 580806901

No Description Available

$31.99

$

In Stock, only 1 left!

0

21

Dixon 532435242

SCREW.PLASTIC.ANCHOR.5/16

$5.99

$

Usually ships in 3-10 days

0

23

Dixon 532428990

No Description Available
(Superseded to 583449401)

$

$

Not available

24

Dixon 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

25

Dixon 581313802

No Description Available

$11.99

$

Usually ships in 3-10 days

0

26

Dixon 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

28

Dixon 812000058

No Description Available

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 532428781

COVER.DUST.WHEEL.RGD.HW

$6.99

$

Usually ships in 3-10 days

0

30

Dixon 817000510

No Description Available

$7.49

$

In Stock, Qty 12

0

31

Dixon 532404845

No Description Available

$5.99

$

In Stock, only 3 left!

0

32

Dixon 581336701

No Description Available

$56.99

$

In Stock, only 1 left!

0

33

Dixon 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Dixon 532197480

No Description Available

$7.49

$

Usually ships in 3-10 days

0

35

Dixon 532430598

AXLE.REAR.RGD

$45.99

$

Usually ships in 3-10 days

0

36

Dixon 532447189

No Description Available
(Superseded to 583762601)

$

$

Not available

37

Dixon 581127601

No Description Available

$7.99

$

In Stock, Qty 10

0

38

Dixon 532191730

No Description Available

$7.49

$

In Stock, Qty 5

0

39

Dixon 532407059

No Description Available

$6.49

$

In Stock, only 1 left!

0

40

Dixon 532410625

No Description Available
(Superseded to 583733501)

$18.99

$

Usually ships in 3-10 days

0

41

Dixon 532428783

PINION.12.TEETH.RGD.22+HW

$7.99

$

In Stock, Qty 8

0

44

Dixon 532406557

No Description Available
(Superseded to 580364604)

$13.99

$

In Stock, Qty 9

0

48

Dixon 532438489

KIT.WASH-OUT PORT.ZINC

Note: . 49 50 51

$18.99

$

In Stock, only 1 left!

0

49

Dixon 532434994

OBSOLETE - WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

50

Dixon 532415585

No Description Available

$4.99

$

In Stock, only 2 left!

0

51

Dixon 532415586

No Description Available

$6.49

$

In Stock, only 4 left!

0

55

Dixon 581351301

No Description Available

$10.99

$

In Stock, Qty 5

0

56

Dixon 583902001

No Description Available
(Superseded to 583755701)

$15.99

$

Usually ships in 3-10 days

0

57

Dixon 532409149

No Description Available

$4.99

$

In Stock, Qty 20+

0

58

Dixon 532435241

SCREW.12-14X1.500

$4.99

$

Usually ships in 3-10 days

0

59

Dixon 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

61

Dixon 532181698

No Description Available

$7.49

$

In Stock, Qty 6

0

62

Dixon 532197991

No Description Available

$7.49

$

In Stock, Qty 6

0

63

Dixon 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

84

Dixon 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

85

Dixon 532439077

No Description Available

$26.99

$

Usually ships in 3-10 days

0
