D15KH30 (960410227-02) - Dixon 30" Lawn Tractor, 15hp Kohler (2013-04) ENGINE Parts Diagram

30" Lawn Tractor, 15hp Kohler

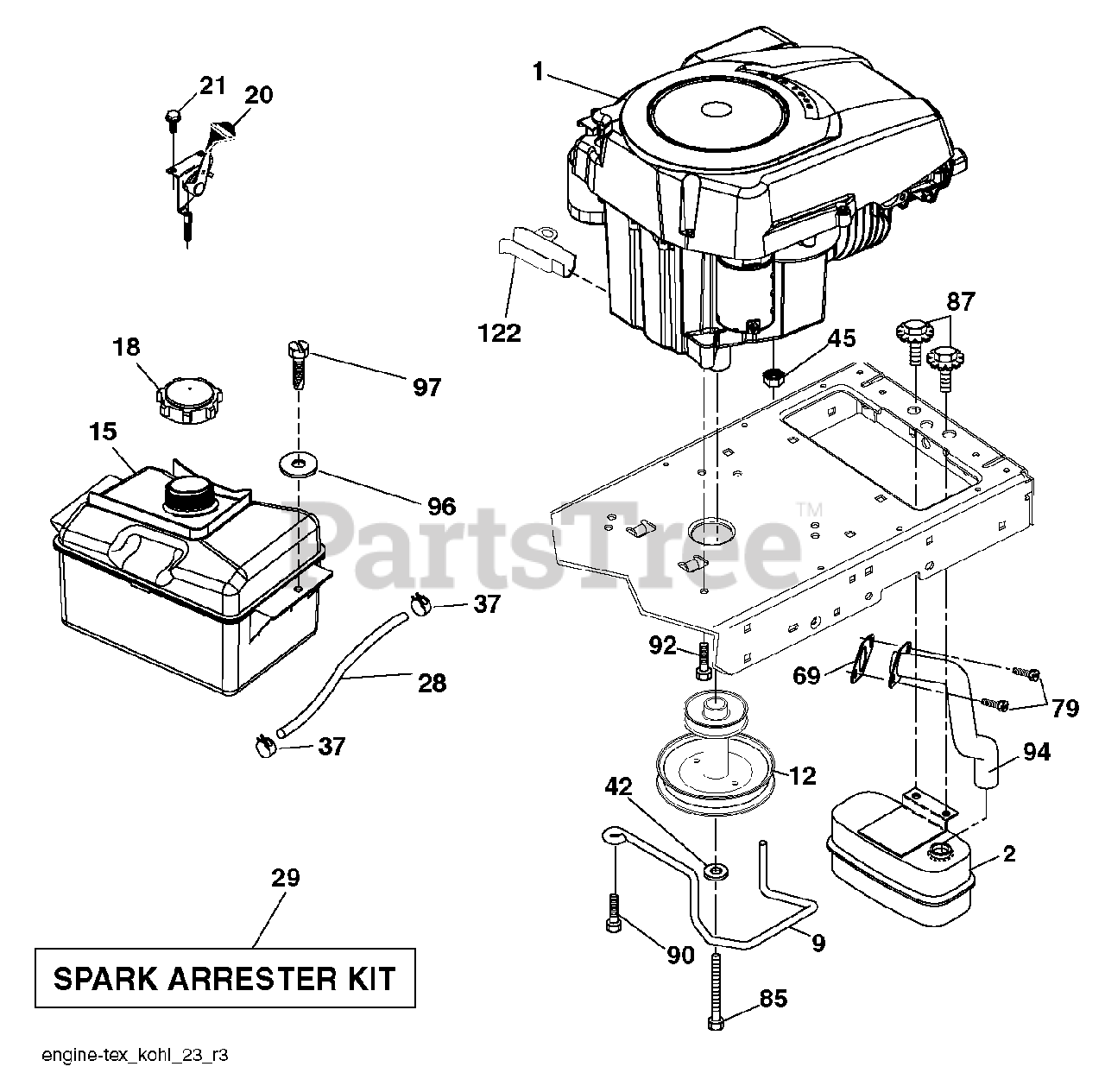

ENGINE Parts Diagram

  • Title

1

Dixon 000000000

No Description Available

Note: Engine Kohler Model No SV470-3213 (438344)

$

$

Not available

2

Dixon 580532301

MUFFLER.SINGLE.LRG.BRIGGS.KOHL
(Superseded to 532188655)

$45.99

$

In Stock, only 2 left!

0

9

Dixon 584911601

No Description Available
(Superseded to 582540301)

$10.99

$

In Stock, Qty 6

0

12

Dixon 532140186

PULLEY ENGINE

$113.99

$

Usually ships in 3-10 days

0

15

Dixon 581289901

FUEL.TANK.ASM.1.5.GAL.NON-EPA

$87.99

$

In Stock, only 1 left!

0

18

Dixon 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

20

Dixon 532183897

No Description Available
(Superseded to 532176636)

$37.99

$

Usually ships in 3-10 days

0

21

Dixon 532416358

SCREW.#10 X 0.750.BOS (2 2)

$

$

Not available

28

Dixon 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

29

Dixon 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Dixon 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

42

Dixon 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Dixon 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

69

Dixon 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

Usually ships in 3-10 days

0

79

Dixon 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

87

Dixon 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

85

Dixon 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

90

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

92

Dixon 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

94

Dixon 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0

96

Dixon 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

97

Dixon 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

122

Dixon 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
