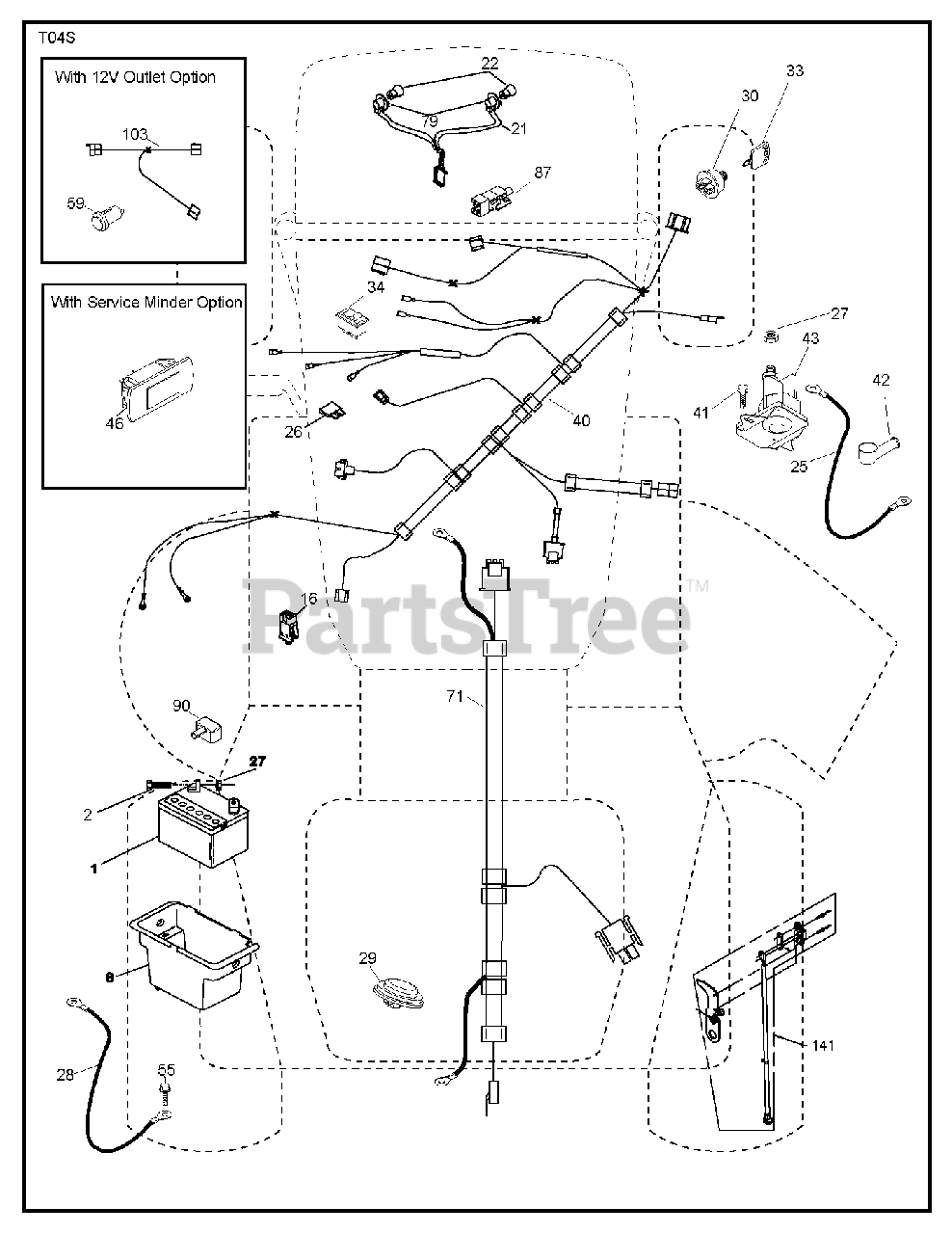

D15KH30 (960410227-01) - Dixon 30" Lawn Tractor, 15hp Kohler (2012-07) ELECTRICAL Parts Diagram

30" Lawn Tractor, 15hp Kohler

ELECTRICAL Parts Diagram

  • Title

1

Dixon 532144924

No Description Available
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Dixon 874760412

BOLT LT

$7.49

$

In Stock, only 1 left!

0

8

Dixon 532193228

No Description Available

$28.99

$

In Stock, only 1 left!

0

16

Dixon 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Dixon 532400252

No Description Available

$34.99

$

Usually ships in 3-10 days

0

22

Dixon 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

25

Dixon 532412894

CABLE STARTER

$15.99

$

Usually ships in 3-10 days

0

26

Dixon 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Dixon 873510400

OBSOLETE - NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Dixon 532198885

No Description Available

$30.99

$

Usually ships in 3-10 days

0

29

Dixon 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Dixon 532193350

IGNITION SWITCH

$22.99

$

Usually ships in 3-10 days

0

33

Dixon 532411933

KEY/CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

34

Dixon 532110712

SWITCH LT

$9.49

$

In Stock, only 3 left!

0

40

Dixon 532401098

No Description Available

$120.99

$

Usually ships in 3-10 days

0

41

Dixon 817720408

OBSOLETE - SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 532131563

OBSOLETE - TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Dixon 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

55

Dixon 817060512

OBSOLETE - SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Dixon 532400449

No Description Available

$40.99

$

Usually ships in 3-10 days

0

79

Dixon 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

87

Dixon 532197802

No Description Available

$18.99

$

In Stock, Qty 7

0

90

Dixon 532435395

No Description Available

$6.49

$

In Stock, only 2 left!

0

141

Dixon 532416977

No Description Available

$145.99

$

Usually ships in 3-10 days
