D15KH30 (960410227-01) - Dixon 30" Lawn Tractor, 15hp Kohler (2012-07) CHASSIS ENCLOSURES Parts Diagram

30" Lawn Tractor, 15hp Kohler

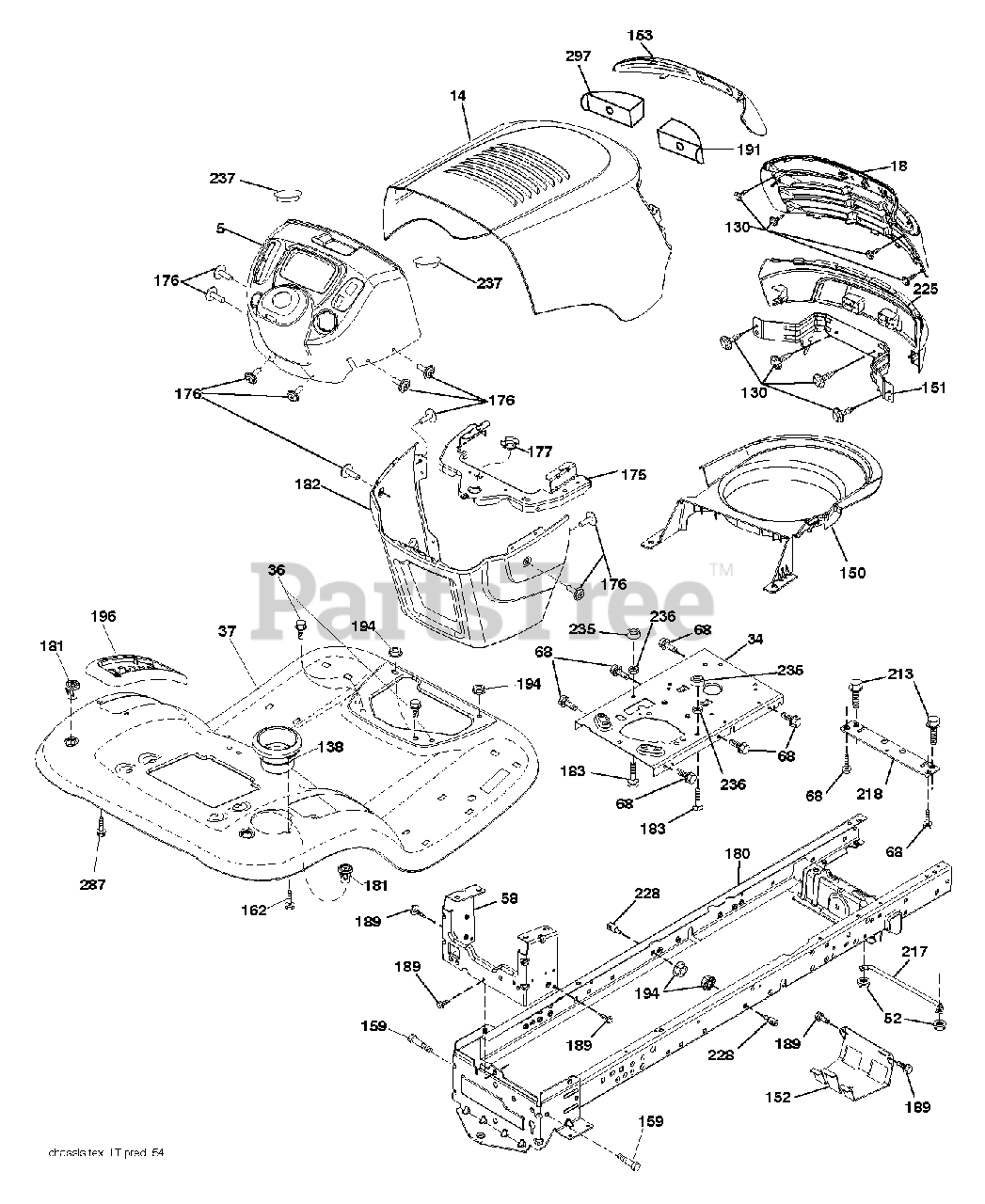

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Dixon 532425772

No Description Available

$96.99

$

Usually ships in 3-10 days

0

14

Dixon 532446021

No Description Available
(Superseded to 587483501)

$

$

Not available

18

Dixon 532444884

No Description Available

$113.99

$

Usually ships in 3-10 days

0

34

Dixon 532447253

No Description Available
(Superseded to 583590301)

$68.99

$

In Stock, only 1 left!

0

36

Dixon 817060512

OBSOLETE - SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 532444887

No Description Available

$109.99

$

Usually ships in 3-10 days

0

52

Dixon 873680500

OBSOLETE - LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

58

Dixon 532412280

DRAWBAR UPPER

$46.99

$

Usually ships in 3-10 days

0

68

Dixon 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Dixon 532416358

SCREW.#10 X 0.750.BOS THREAD

$

$

Not available

138

Dixon 532409730

CUPHOLDER

$7.99

$

Usually ships in 3-10 days

0

150

Dixon 532408310

No Description Available

$24.99

$

Usually ships in 3-10 days

0

151

Dixon 532187568

No Description Available

$28.99

$

Usually ships in 3-10 days

0

152

Dixon 532199535

SHIELD BROWNING

$

$

Not available

153

Dixon 532444264

No Description Available

$22.99

$

Usually ships in 3-10 days

0

159

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

162

Dixon 532142432

SCREW,HEX

$6.49

$

Usually ships in 3-10 days

0

175

Dixon 532199472

No Description Available

$28.99

$

Usually ships in 3-10 days

0

176

Dixon 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Dixon 532195228

No Description Available

$5.99

$

Usually ships in 3-10 days

0

180

Dixon 532414685

No Description Available
(Superseded to 597630801)

$250.99

$

Usually ships in 3-10 days

0

181

Dixon 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Dixon 532407176

No Description Available

$79.99

$

Usually ships in 3-10 days

0

183

Dixon 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Dixon 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

191

Dixon 532416502

No Description Available

$28.99

$

Usually ships in 3-10 days

0

194

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Dixon 532414579

CONSOLE ASM. DECK LIFT

$37.99

$

In Stock, only 1 left!

0

213

Dixon 874760512

No Description Available
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

217

Dixon 532409167

No Description Available

$13.99

$

In Stock, only 2 left!

0

218

Dixon 532196395

No Description Available

$7.99

$

In Stock, only 1 left!

0

225

Dixon 532444885

No Description Available

$48.99

$

Usually ships in 3-10 days

0

228

Dixon 532195161

STUD.FASTNER.W/D.ANTI-

$

$

Not available

235

Dixon 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Dixon 873930500

JAM LOCK NUT

$7.49

$

In Stock, only 1 left!

0

237

Dixon 532403704

No Description Available

$4.99

$

Usually ships in 3-10 days

0

287

Dixon 817600406

SCREW

$6.49

$

Usually ships in 3-10 days

0

297

Dixon 532406665

No Description Available

$9.99

$

Usually ships in 3-10 days

0

--

Dixon 532432372

No Description Available

$169.99

$

Usually ships in 3-10 days

0
