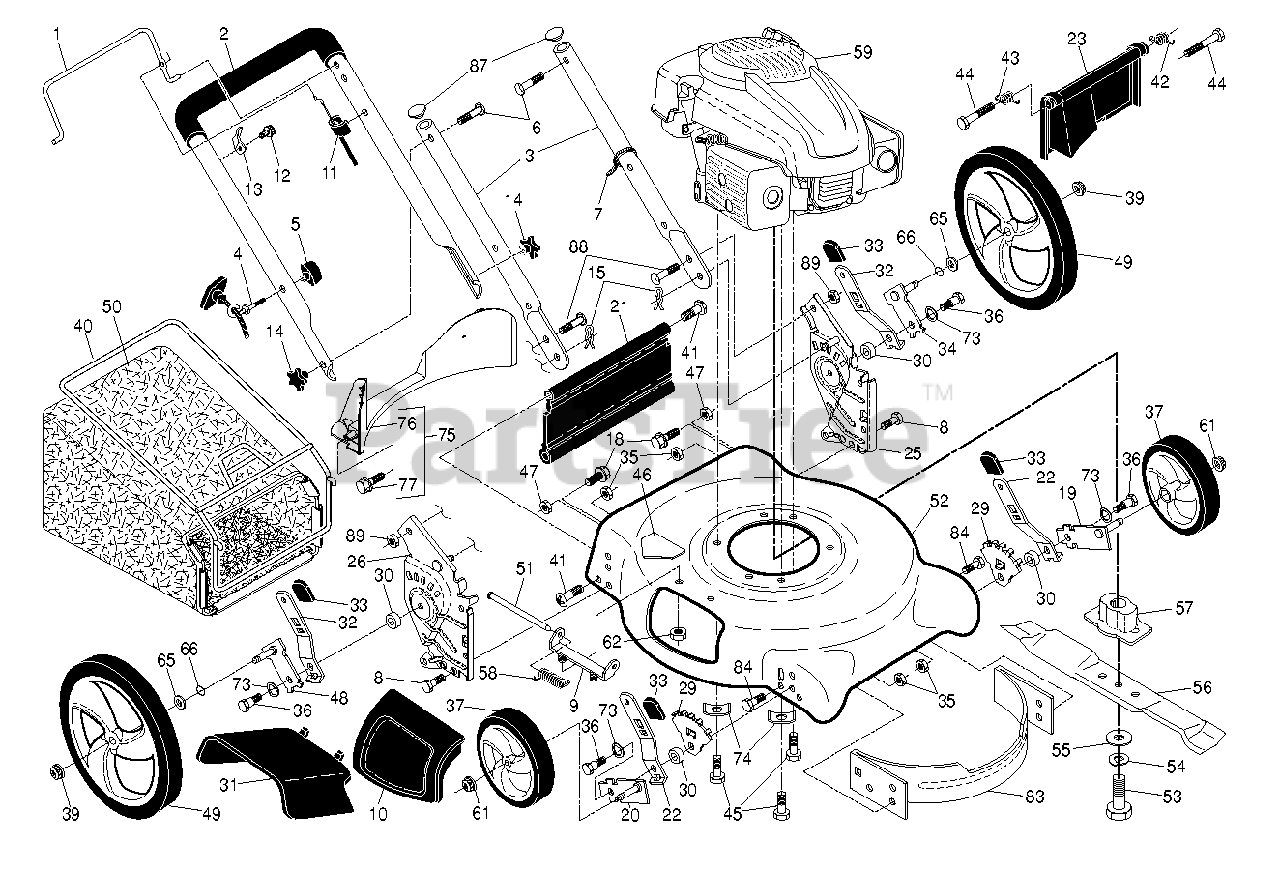

D149P21 (961320083-03) - Dixon Walk-Behind Mower (2014-03) FRAME ENGINE Parts Diagram

Walk-Behind Mower

FRAME ENGINE Parts Diagram

  • Title

1

Dixon 532196025

BAIL.CONT.D.STRAIGHT.PUSH.BLK

$

$

Not available

2

Dixon 581917601

HANDLE.UPPER.ECON.STRT.W/GRIP

$31.99

$

Usually ships in 3-10 days

0

3

Dixon 580638602

HANDLE.LOWER.DOME.BT.BLACK

$

$

Not available

4

Dixon 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

5

Dixon 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

6

Dixon 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

7

Dixon 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

8

Dixon 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Dixon 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

10

Dixon 532165754

MULCH DOOR

$11.99

$

In Stock, only 1 left!

0

11

Dixon 532440934

CABLE.MZR.RATO.22"LOW.

$17.99

$

In Stock, only 4 left!

0

12

Dixon 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

13

Dixon 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

14

Dixon 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

15

Dixon 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

18

Dixon 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

19

Dixon 532406689

No Description Available
(Superseded to 532401174)

Note: LH

$

$

Not available

20

Dixon 532406690

No Description Available
(Superseded to 532401175)

Note: RH

$6.99

$

In Stock, only 3 left!

0

21

Dixon 532418655

KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 5

0

22

Dixon 532406428

No Description Available
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

23

Dixon 532410603

No Description Available
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

25

Dixon 580915602

BRACKET.ASM.HANDLE.HW.21.LT.BL
(Superseded to 580915604)

Note: LH

$24.99

$

In Stock, only 1 left!

0

26

Dixon 580915702

BRACKET.ASM.HANDLE.HW.21.RT.BL
(Superseded to 580915704)

Note: RH

$17.99

$

Usually ships in 3-10 days

0

29

Dixon 532410594

No Description Available
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

30

Dixon 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

31

Dixon 532165760

CLIP ON DISCHARGE GUARD
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

32

Dixon 532441559

SPRING.SEL.22.ECON.HI-WHL.RATO

$6.99

$

Usually ships in 3-10 days

0

33

Dixon 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

34

Dixon 532410600

No Description Available
(Superseded to 532401176)

Note: LH

$6.99

$

Usually ships in 3-10 days

0

35

Dixon 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

36

Dixon 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

37

Dixon 532197025

WHEEL.8X1.75.MAG2.RAD3.GRAY

$

$

Not available

39

Dixon 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

40

Dixon 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

41

Dixon 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

42

Dixon 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 3 left!

0

43

Dixon 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 3 left!

0

44

Dixon 532184193

BOLT

$

$

Not available

45

Dixon 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

46

Dixon 532404763

No Description Available
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

47

Dixon 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

48

Dixon 532410601

No Description Available
(Superseded to 532401177)

Note: RH

$

$

Not available

49

Dixon 532433121

WHEEL.12X1.75.MAG2.RAD3.GRY.TB

$43.99

$

In Stock, only 1 left!

0

50

Dixon 581002101

RB GBAG.24710010.BLK.GEN

$93.99

$

In Stock, Qty 20+

0

51

Dixon 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

52

Dixon 581708316

HOUSING.21.MC.DOME.BLUE.TRI

Note: . 46

$

$

Not available

53

Dixon 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

54

Dixon 532850263

No Description Available
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

55

Dixon 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

56

Dixon 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

57

Dixon 532418373

ADAPTER.BLADE.W/KEY.25MM.CE

$11.99

$

In Stock, Qty 20+

0

58

Dixon 532152124

TORSION SPRING

$7.49

$

In Stock, only 3 left!

0

59

Dixon 000000000

No Description Available

Note: KOHLER XT650-3032 FOR SERICE PARTS 1-800-544-2444

$

$

Not available

61

Dixon 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

62

Dixon 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

65

Dixon 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

66

Dixon 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

73

Dixon 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

74

Dixon 532125078

No Description Available

$5.99

$

Usually ships in 3-10 days

0

76

Dixon 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$13.99

$

Usually ships in 3-10 days

0

77

Dixon 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

83

Dixon 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

84

Dixon 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

87

Dixon 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

88

Dixon 872250505

No Description Available
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

89

Dixon 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

Dixon 532404764
