D - Simplicity Two-Wheeled Tractor Tractor Group (3737I01) Parts Diagram

Two-Wheeled Tractor

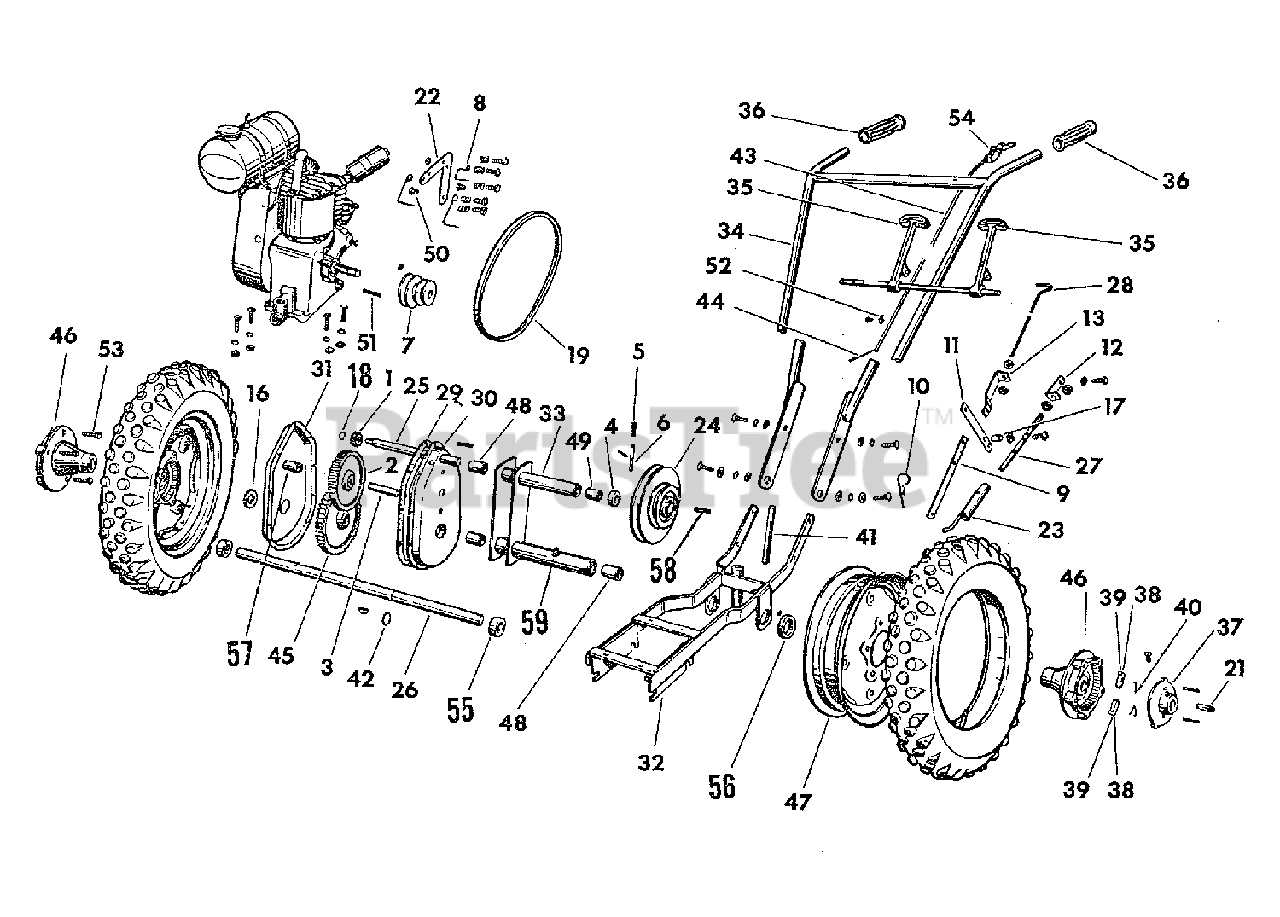

Tractor Group (3737I01) Parts Diagram

  • Title

1

Simplicity D-A4

PINION, Reduction

$

$

Not available

2

Simplicity D-AX3

GEAR, Cluster

$

$

Not available

3

Simplicity D-A9

SPINDLE, Intermediate

$

$

Not available

4

Simplicity D-A10

COLLAR, Set

$

$

Not available

5

Simplicity D-A11

SPRING, Transmission Sheave

$

$

Not available

6

Simplicity D-A12

PIN, Transmission Sheave

$

$

Not available

7

Simplicity D-A13

PULLEY, Engine

$

$

Not available

8

Simplicity D-A14

STOP, Belt

$

$

Not available

9

Simplicity D-A21

FRAME, Extension

$

$

Not available

10

Simplicity D-A24

PIN, Speed Change

$

$

Not available

11

Simplicity D-A25

LEVER, Lower Clutch

$

$

Not available

12

Simplicity D-A26

ROD END, Variable Clutch

$

$

Not available

13

Simplicity D-A27

ROD END, Clutch

$

$

Not available

16

Simplicity D-A31

GROMMET

$

$

Not available

17

Simplicity D-A34

BUSHING, Stop

$

$

Not available

18

Simplicity D-A35

RING, Retaining

$

$

Not available

19

Simplicity D-A36

BELT, Transmission, 40"

$

$

Not available

20

Simplicity D-A37

SHAFT, Lever

$

$

Not available

21

Simplicity D-A38

RATCHET CAGE, Key

$

$

Not available

22

Simplicity D-AX1

HOLDER ASSEMBLY, Belt Stop

$

$

Not available

23

Simplicity D-AX2

SOCKET ASSEMBLY, Throw-Out

$

$

Not available

24

Simplicity D-B1

SHEAVE, Transmission

$

$

Not available

25

Simplicity D-B2

SHAFT, Pulley

$

$

Not available

26

Simplicity D-B3

AXLE

$

$

Not available

27

Simplicity D-B6

ROD, Throw-Out

$

$

Not available

28

Simplicity D-B7

ROD, Clutch

$

$

Not available

29

Simplicity D-B8

GASKET, Gear Housing

$

$

Not available

30

Simplicity D-C1

CASE, Gear

$

$

Not available

31

Simplicity D-C2

COVER, Gear Case

$

$

Not available

32

Simplicity D-CX1

FRAME ASSEMBLY

$

$

Not available

33

Simplicity D-CX2

BEARING HOUSING ASSEMBLY

$

$

Not available

34

Simplicity D-CX3

HANDLE ASSEMBLY

$

$

Not available

35

Simplicity S1A8A

LEVER, Clutch

$

$

Not available

36

Simplicity S1A88

GRIP, Handle

$

$

Not available

37

Simplicity SSA1A

CAGE, Ratchet

$

$

Not available

38

Simplicity SSA15

RATCHET DOG, Right

$

$

Not available

39

Simplicity SSA16

RATCHET DOG, Left

$

$

Not available

40

Simplicity SSA21

SPRING

$

$

Not available

41

Simplicity SSA31

PIN, Draw Bar

$

$

Not available

42

Simplicity SSA32

RING, Retaining

$

$

Not available

43

Simplicity SSA85B

WIRE HOUSING, Throttle Control

$

$

Not available

44

Simplicity SSA86B

WIRE, Throttle Control

$

$

Not available

45

Simplicity SSB2

GEAR, Drive

$

$

Not available

46

Simplicity SSB18

HUB, Wheel

$

$

Not available

47

Simplicity SSB23

WHEEL

$

$

Not available

48

Simplicity S2A-43

BUSHING, Axle

$

$

Not available

49

Simplicity S2A44A

BUSHING, Pulley Shaft

$

$

Not available

50

Simplicity S2-A47

SPRING

$

$

Not available

51

Simplicity S3A42

KEY, Engine Sheave

$

$

Not available

52

Simplicity S7A71

CLAMP, Cable

$

$

Not available

53

Simplicity SSA100

BOLT, Rim

$

$

Not available

54

Simplicity 8061087

LEVER ASSEMBLY, Throttle

$

$

Not available

55

Simplicity D-A28

SET COLLAR, Axle

$

$

Not available

56

Simplicity D-A29

SET COLLAR, Axle Housing

$

$

Not available

57

Simplicity D-A32

BUSHING, Intermediate

$

$

Not available

58

Simplicity D-A33

KEY, Transmission Sheave

$

$

Not available

59

FITTING, Grease, #1641

$

$

Not available

-

TOOL KIT

$

$

Not available

-

GUN, Grease

$

$

Not available
