D RT875 (960920010-00) - Poulan Pro Tiller (2008-01) Transmission Parts Diagram

Tiller

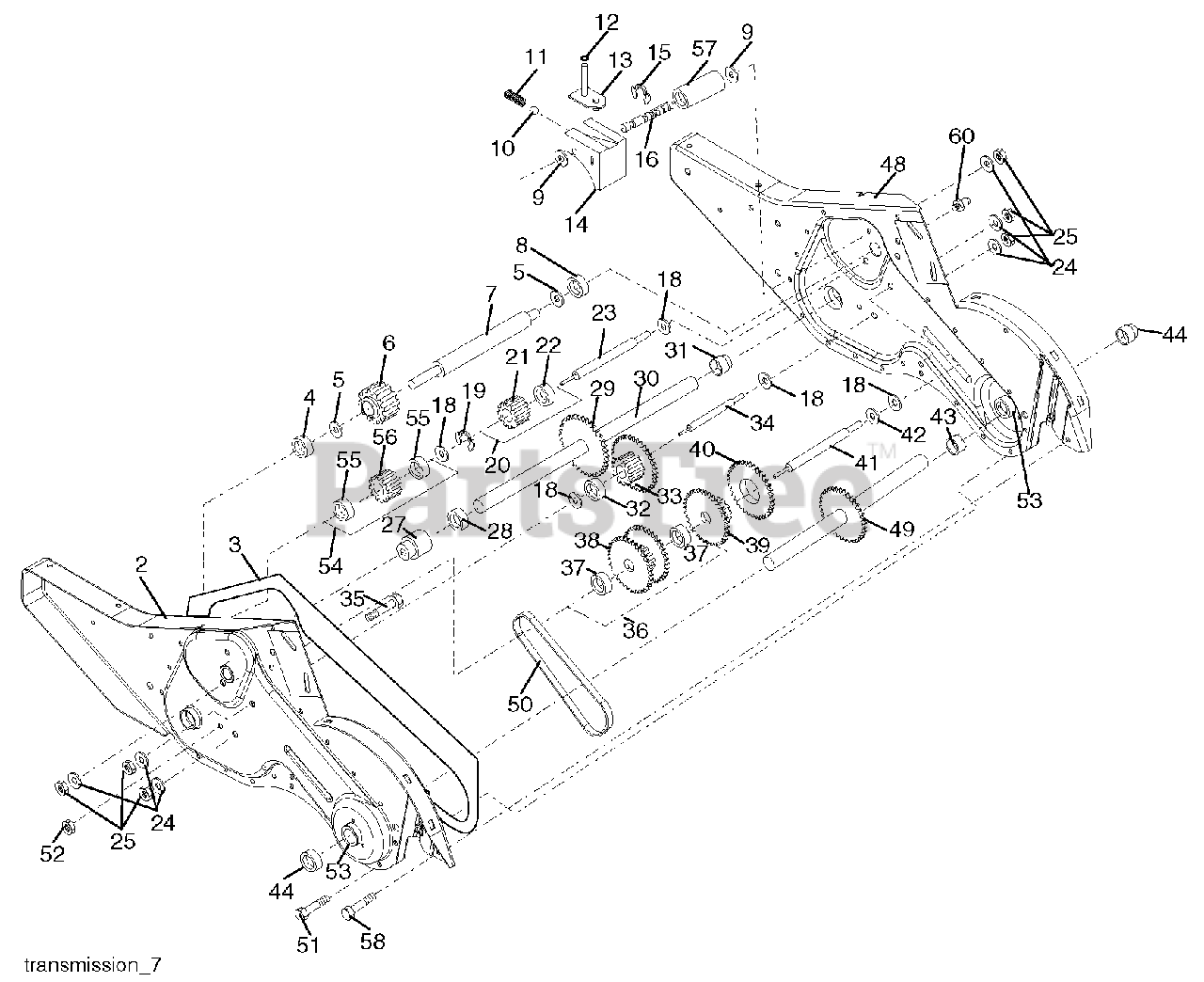

Transmission Parts Diagram

  • Title
1

Electrolux/AYP 188240

Transmission Assembly
(Superseded to 532181104)

Note: (Includes Key Nos. 2-52)

$

$

Not available

2

Electrolux/AYP 188220

Gearcase, L.H. w/Bearing
(Superseded to 532188220)

Note: (Includes Key No. 4)

$157.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 161963

Gasket, Gearcase
(Superseded to 532431022)

$24.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 5020J

Bearing, Needle
(Superseded to 532005020)

$17.99

$

In Stock, Qty 6

0

5

Electrolux/AYP 1370H

Washer, Thrust 5/8 x 1.10 x 1/32
(Superseded to 532001370)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 161520

Pinion, Input
(Superseded to 586196201)

$45.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 161518

Shaft, In put
(Superseded to 532161518)

$78.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 4895H

Bearing, Needle
(Superseded to 532004895)

$17.99

$

In Stock, Qty 15

0

9

Electrolux/AYP 154467

Washer, Seal
(Superseded to 532154467)

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 7392M

Ball, Steel
(Superseded to 532007392)

$

$

Not available

11

Electrolux/AYP 100371K

Spring, Shift, Fork
(Superseded to 532100371)

$7.49

$

In Stock, Qty 6

0

12

Electrolux/AYP 106160X

O-Ring
(Superseded to 532106160)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 142145

Arm, Shift
(Superseded to 532142145)

$

$

Not available

14

Electrolux/AYP 8353J

Fork, Shift
(Superseded to 532008353)

$34.99

$

In Stock, Qty 8

0

15

Electrolux/AYP 12000039

Ring, Klip
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

16

Electrolux/AYP 161516

Shaft, Shift
(Superseded to 532161516)

$9.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 4358J

Washer
(Superseded to 532004358)

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 12000040

Ring, Klip
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 102114X

Gear, As sem bly, Reverse Idler
(Superseded to 532102114)

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Electrolux/AYP 102115X

Gear, Re verse Idler
(Superseded to 532102115)

$26.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 6803J

Bearing, Needle
(Superseded to 532006803)

$10.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 161527

Shaft, Re verse Idler
(Superseded to 532161527)

$24.99

$

In Stock, only 2 left!

0

24

Electrolux/AYP 10040700

Washer, Lock 7/16
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 73610700

Nut, Hex 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

27

Electrolux/AYP 143009

Bearing, Shaft, Ground Drive L.H.
(Superseded to 532431219)

$

$

Not available

28

Electrolux/AYP 106390X

Spacer 0.765 x 1.125 x 1.23
(Superseded to 532106390)

$5.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 102134X

Chain #35-50 Pitch
(Superseded to 532102134)

$31.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 150737

Ground Shaft Assembly
(Superseded to 532150737)

$

$

Not available

31

Electrolux/AYP 143008

Bearing, Shaft, Ground Drive R.H.
(Superseded to 532143008)

$

$

Not available

32

Electrolux/AYP 106388X

Spacer 0.70 x 1.00 x 1.150
(Superseded to 532106388)

$6.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 102121X

Sprocket and Gear Assembly
(Superseded to 532102121)

$

$

Not available

34

Electrolux/AYP 102112X

Shaft, Re duc tion (2nd)
(Superseded to 532102112)

$43.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 102101X

Screw, Whiz, Lock 5/16-18 x 3-1/2
(Superseded to 532102101)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 161524

Sprocket Assembly w/Bearing
(Superseded to 532161524)

Note: (Includes Key Nos. 37 and 38)

$206.99

$

In Stock, only 2 left!

0

37

Electrolux/AYP 100413K

Bearing, Needle
(Superseded to 585695501)

$24.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 161525

Sprocket, Tine
(Superseded to 532161524)

$206.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 161526

Gear, Clus ter, Red 1st & 2nd
(Superseded to 532161526)

$

$

Not available

40

Electrolux/AYP 105346X

Gear, Re verse
(Superseded to 532105346)

$45.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 161523

Shaft, Re duc tion (1st)
(Superseded to 532161523)

$

$

Not available

42

Electrolux/AYP 4220R

Washer, Thrust
(Superseded to 532004220)

$5.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 106146X

Spacer 1.01 x 1.75 x 0.760
(Superseded to 532106146)

$34.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 155236

Seal Asm. OIl
(Superseded to 532155236)

$7.49

$

In Stock, only 3 left!

0

48

Electrolux/AYP 188235

Gearcase, R.H. w/Bearing
(Superseded to 532188235)

Note: (In cludes Key No. 8)

$

$

Not available

49

Electrolux/AYP 132688

Shaft, Tine
(Superseded to 532432058)

$

$

Not available

50

Electrolux/AYP 106147X

Chain, Roller #50-50 Pitch
(Superseded to 532106147)

$66.99

$

In Stock, only 1 left!

0

51

Electrolux/AYP 17720408

Screw 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 165140

Bearing Kit, Tine Shaft
(Superseded to 532165140)

$93.99

$

In Stock, only 1 left!

0

54

Electrolux/AYP 161528

Gear, DRT Idler w/Bearing
(Superseded to 532161528)

Note: (Includes Key No. 55)

$

$

Not available

55

Electrolux/AYP 3400R

Bearing, Needle
(Superseded to 580755701)

$10.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 161529

Gear, DRT Idler
(Superseded to 532161529)

$

$

Not available

57

Electrolux/AYP 165889

Spacer, Split .52 x .64 x 1.04
(Superseded to 532165889)

$7.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 179520

Screw 1/4-20 x .875
(Superseded to 532179520)

$4.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 183226

Fitting Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

60

Electrolux/AYP 6066J

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
