D 825 SB (UT-15160) - Homelite String Trimmer Ignition - Rotor - Starter - Clutch Parts Diagram

String Trimmer

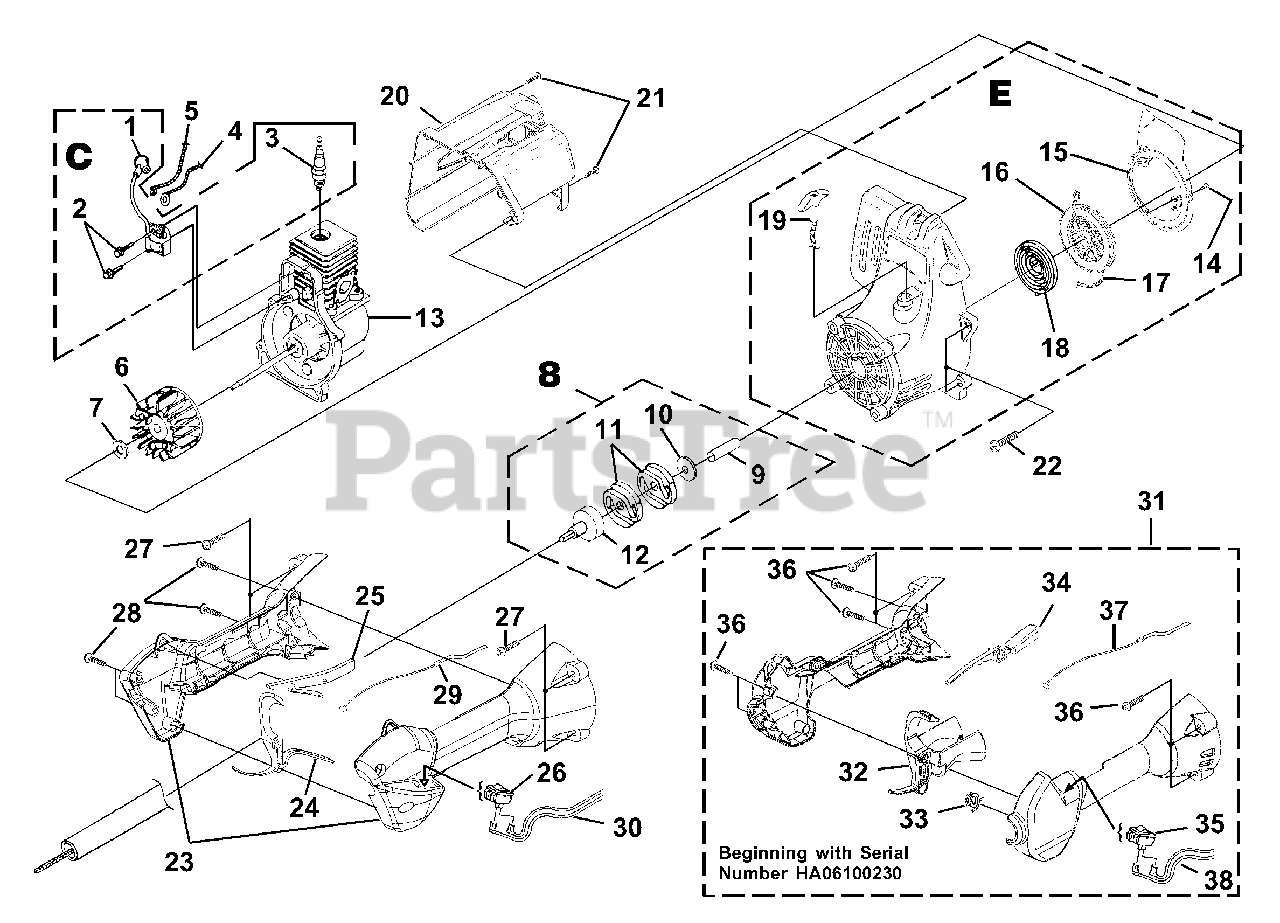

Ignition - Rotor - Starter - Clutch Parts Diagram

  • Title

C

Homelite A07174

IGNITION KIT
(Superseded to A07174A)

Note: Includes items 1-3

$

$

Not available

1

Homelite UP03868

TERMINAL & COVER
(Superseded to A33055)

$

$

Not available

2

Homelite UP03896

SCREW-Taptite (8-32 X 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite Blue 242

$2.49

$

Usually ships in 3-7 days

0

3

Homelite UP03883

SPARK PLUG

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm.

$3.49

$

In Stock, only 3 left!

0

4

Homelite UP04537

LEAD-Electrical
(Superseded to A06964)

$

$

Not available

5

Homelite UP04536

LEAD-Electrical
(Superseded to A06963)

$3.99

$

Usually ships in 3-7 days

0

6

Homelite UP03009

ROTOR KIT

Note: Includes item 7

$

$

Currently unavailable

7

Homelite UP04241

WASHER-Flat
(Superseded to PS84065)

$

$

Not available

8

Homelite UP00034

CLUTCH AND DRUM KIT
(Superseded to UP00034A)

Note: Includes items 9-12

$

$

Not available

9

Homelite UP04118

SPACER
(Superseded to PS04300)

$

$

Not available

10

Homelite UP04275

WASHER-Flat
(Superseded to 98929A)

$1.99

$

In Stock, only 4 left!

0

11

Homelite UP04103

CLUTCH
(Superseded to 00242)

$

$

Not available

12

Homelite UP04104

CONNECTOR AND DRUM
(Superseded to A005851)

$

$

Not available

13

Homelite UP02995

SHORT BLOCK
(Superseded to 984561001)

Note: (See "Engine Internal" illustration and parts list)

$166.99

$

In Stock, only 1 left!

0

E

Homelite UP02963

COMPLETE STARTER ASSEMBLY

Note: Includes items 14-19

$

$

Not available

14

Homelite UP04164

SCREW-Thread Form (8-16 X 1/2")
(Superseded to 82543)

Note: Torque Specs 10-20 In/Lbs, 1.1-2.3 Nm.

$

$

Not available

15

Homelite UP03013

BAFFLE-Air
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

16

Homelite UP03012

PULLEY-Starter
(Superseded to PS01122)

$1.99

$

In Stock, only 2 left!

0

17

Homelite UP03912

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

18

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$5.49

$

Usually ships in 3-7 days

0

19

Homelite UP03026

GRIP-Starter (Yellow)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

20

Homelite UP02964

HOUSING-Rear Kit
(Superseded to 984633001)

Note: Includes item 21

$14.99

$

Usually ships in 3-7 days

0

21

Homelite UP03900

SCREW-Plastite (10-14 X 3/4")
(Superseded to 82563)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

In Stock, Qty 6

0

22

Homelite UP03406

SCREW-Taptite (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

Usually ships in 3-7 days

0

23

Homelite UP02967

CONTROL HANDLE ASSY.
(Superseded to UP03114)

Note: Includes items 24-30

$

$

Not available

24

Homelite UP03015

TRIGGER-Throttle
(Superseded to 09219)

$

$

Not available

25

Homelite UP03014

THROTTLE INTERLOCK
(Superseded to UP04563)

$6.49

$

Usually ships in 3-7 days

0

26

Homelite UP03833

SWITCH
(Superseded to 985703001)

$

$

Not available

27

Homelite UP03895

SCREW-Taptite (10-14 X 7/8")
(Superseded to 82537)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

Usually ships in 3-7 days

0

28

Homelite UP03406

SCREW-Taptite (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

Usually ships in 3-7 days

0

29

Homelite UP03020

CABLE-Throttle
(Superseded to 09285)

$

$

Not available

30

Homelite UP04566

LEAD-Electrical

$

$

Not available

31

Homelite UP03114

CONTROL HANDLE ASSY.
(Superseded to UP03114A)

Note: Includes items 32-38

$

$

Not available

32

Homelite UP03207

TRIGGER-Throttle
(Superseded to UP03207A)

Note: Includes item 33

$5.99

$

Usually ships in 3-7 days

0

33

Homelite UP03210

SPRING
(Superseded to PS01718)

$2.49

$

In Stock, only 2 left!

0

34

Homelite UP03173

THROTTLE INTERLOCK
(Superseded to PS01128)

$11.99

$

Usually ships in 3-7 days

0

35

Homelite UP04197

SWITCH
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

36

Homelite UP04247

SCREW-Taptite (10-14 X 1")
(Superseded to 82589)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$2.99

$

In Stock, Qty 8

0

37

Homelite UP03172

CABLE-Throttle
(Superseded to PS01177)

$1.49

$

In Stock, only 1 left!

0

38

Homelite UP03174

LEAD-Electrical
(Superseded to PA00387)

$6.99

$

Usually ships in 3-7 days

0
