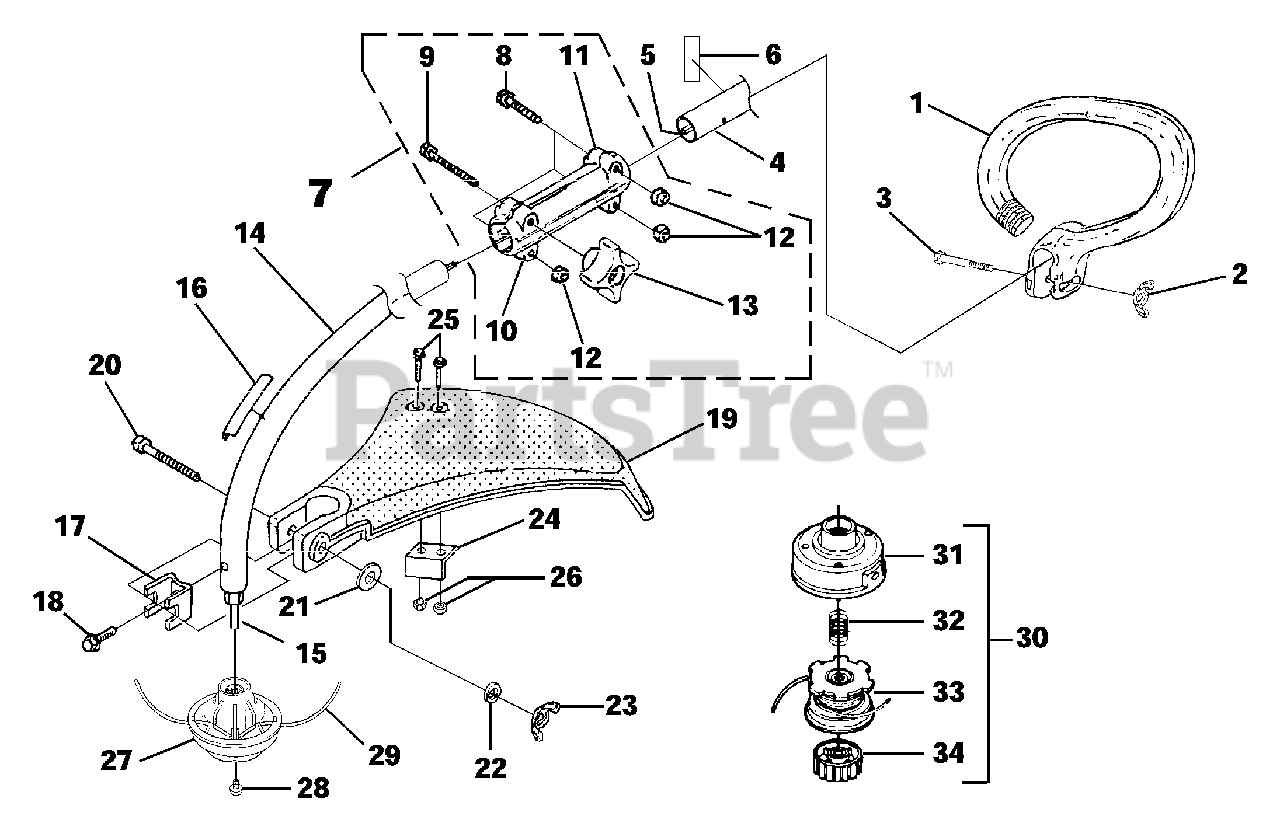

D 825 CA (UT-20711) - Homelite Plus String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

Plus String Trimmer

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06959

HANDLE-Anti-Vibe
(Superseded to 308472001)

Note: Includes items 2-3

$

$

Not available

2

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

3

Homelite UP06523

SCREW-Cap Hex Hd. (1/4-20 x 2")
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

4

Homelite UP00029

DRIVESHAFT ASSY. (Upper)

Note: Includes items 5-6

$

$

Currently unavailable

5

Homelite A07667

FLEXSHAFT w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

6

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

7

Homelite A07901

COUPLER ASSEMBLY

Note: Includes items 8-13

$

$

Not available

8

Homelite UP04153

SCREW-Hex Hd. (1/4-20 x 1 1/2")

$

$

Not available

9

Homelite UP06523

SCREW-Cap Hex (1/4-20 x 2")
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite UP04143

COUPLER (L.H.)

$

$

Not available

11

Homelite UP04144

COUPLER (R.H.)

$

$

Not available

12

Homelite UP03400

NUT-Hex (1/4-20)
(Superseded to 81267)

Note: Torque Specs 50-60 In/Lbs, 5.7-6.8 Nm.

$

$

Not available

13

Homelite UP04138

KNOB (1/4-20)
(Superseded to 08290)

Note: Torque Specs Hand Tight

$

$

Not available

14

Homelite UP02887

DRIVESHAFT HOUSING (Lower)
(Superseded to UP02887A)

Note: Includes items 15-18

$

$

Not available

15

Homelite UP04541

SHAFT-Flex
(Superseded to A07673)

$61.99

$

Usually ships in 3-7 days

0

16

Homelite UP04352

DECAL-Warning
(Superseded to PS02750)

$

$

Not available

17

Homelite UP04137

CLAMP
(Superseded to 07928)

$

$

Not available

18

Homelite UP04256

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm.

$

$

Not available

19

Homelite UP06710

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

Note: Includes items 20-26

$

$

Not available

20

Homelite UP06523

SCREW-Cap Hex Hd. (10-24 X 2")
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

21

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

22

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

23

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Specs 5-25 In/Lbs, .6-2.8 Nm.

$

$

Not available

24

Homelite UP04119

BLADE-Cut-Off

Note: Includes items 25-26

$

$

Not available

25

Homelite UP04159

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 82531)

$

$

Not available

26

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$

$

Not available

27

Homelite DA09364

STRINGHEAD-Pro-Cut w/line (UT20710)
(Superseded to DA09364A)

Note: Includes item 28

$

$

Not available

28

Homelite UP04102

SCREW-(5/16-18 x 5/8")
(Superseded to PS00082)

Note: Torque Specs 40-60 In/Lbs, 4.5-6.8 Nm.

$

$

Not available

29

Homelite D09365

LINE-Replacement
(Superseded to AC09365)

$

$

Not available

30

Homelite DA03001A

STRINGHEAD-Complete (.080") (UT20712)
(Superseded to UP04408A)

Note: Includes items 31-34

$

$

Not available

Homelite DA04591A

STRINGHEAD-Complete (.095") (UT20711, UT20736)
(Superseded to DA04591AA)

Note: Includes items 31-34

$103.99

$

In Stock, only 1 left!

0

31

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

32

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

33

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

Homelite UP00147

SPOOL & STRING (.095")
(Superseded to UP04661A)

$103.99

$

In Stock, only 1 left!

0

34

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available
