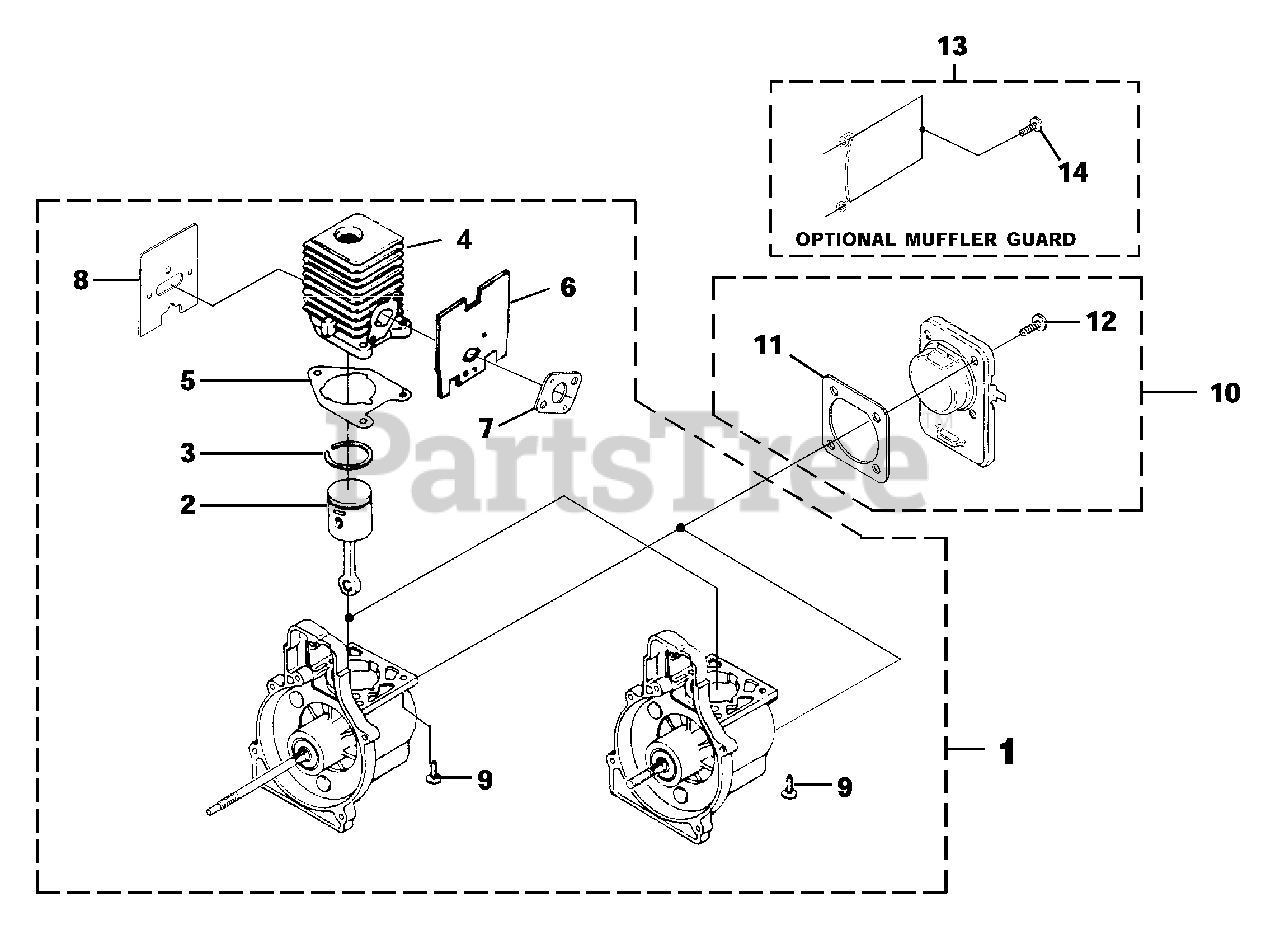

D 825 CA (UT-20711) - Homelite Plus String Trimmer Engine Internal Parts Diagram

Plus String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite UP02994

SHORT BLOCK (Non-Clutch)
(Superseded to 984525001)

Note: Includes items 2-9

$225.99

$

In Stock, only 1 left!

0

Homelite UP02995

SHORT BLOCK (Clutch)
(Superseded to 984561001)

Note: Includes items 2-9

$166.99

$

In Stock, only 1 left!

0

2

Homelite UP00768

PISTON & ROD ASSY.
(Superseded to UP00768A)

Note: Includes item 3

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite UP04136

CYLINDER ASSY.
(Superseded to UP07145A)

Note: Includes items 5-8

$74.99

$

In Stock, only 1 left!

0

5

Homelite UP03857

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

6

Homelite UP04308

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

7

Homelite UP03916

GASKET-Carburetor
(Superseded to 98766A)

$

$

Not available

8

Homelite UP04710

GASKET-Muffler
(Superseded to 09343)

$

$

Not available

9

Homelite UP04345

SCREW-Sems (12-24 X 3/4")
(Superseded to PS02807)

Note: Torque Specs 55-65 In/Lbs, 6.2-7.3 Nm. Required Loctite Red 262

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019

CRANKCASE COVER ASSEMBLY
(Superseded to UP00019A)

Note: Includes items 11-12

$

$

Not available

11

Homelite UP04335

GASKET-Crankcase Cover
(Superseded to 08661)

Note: (Also included w/short block)

$

$

Not available

12

Homelite UP04295

SCREW-Sems (10-24 X 1/2")
(Superseded to PS01565)

Note: Torque Specs 35-45 In/Lbs, 4.0-5.1 Nm. Required Loctite Red 262

$2.49

$

Usually ships in 3-7 days

0

13

Homelite UP00027

MUFFLER GUARD
(Superseded to UP04099)

Note: Includes item 14

$

$

Not available

14

Homelite UP03897

SCREW-Plastite (10-14 X 1/2")
(Superseded to 82541)

Note: Torque Specs 5-20 In/Lbs, .6-2.3 Nm.

$1.99

$

In Stock, only 3 left!
