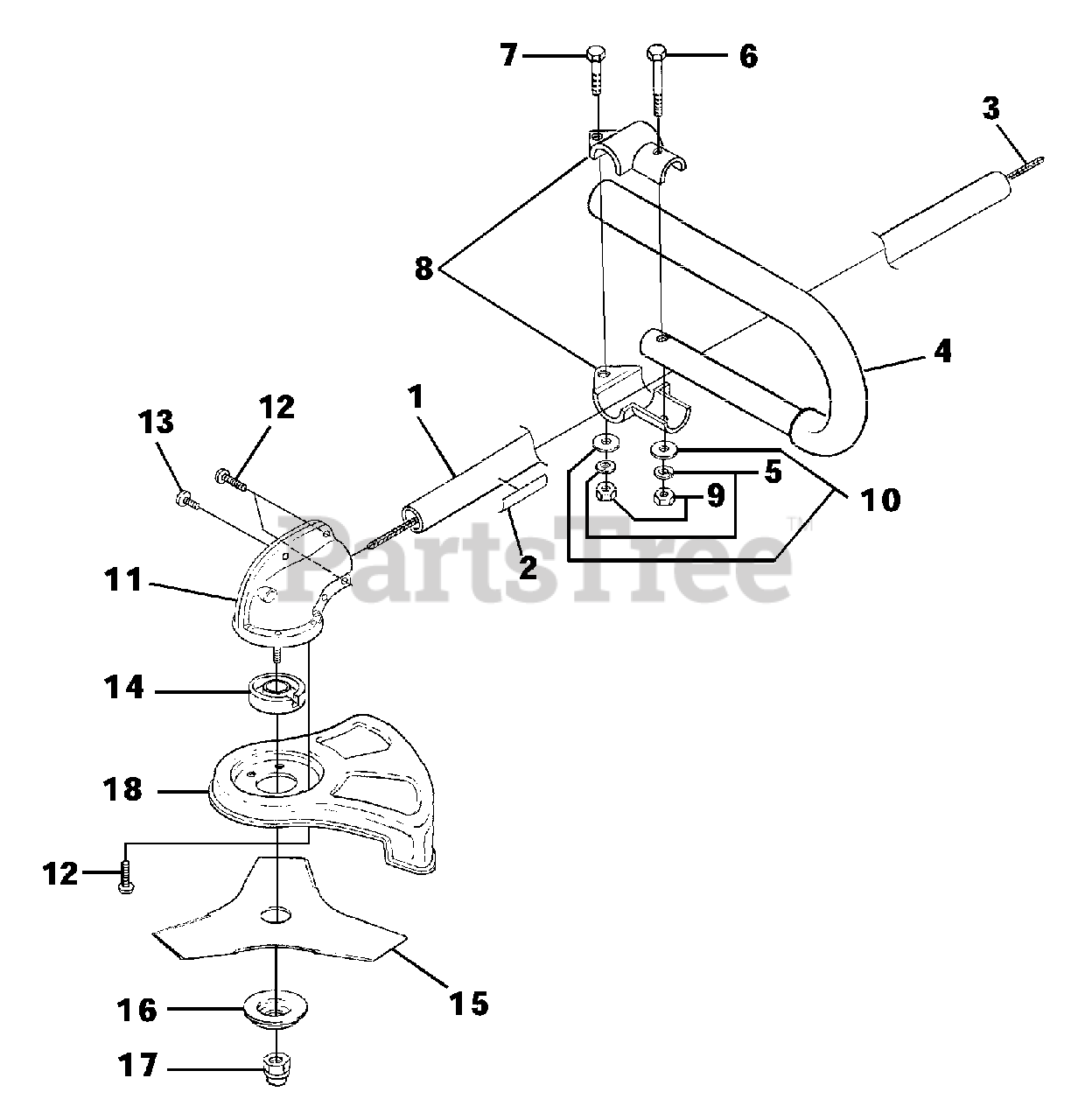

D 825 CA (UT-20711) - Homelite Plus String Trimmer Brushcutter Attachment Parts Diagram

Plus String Trimmer

Brushcutter Attachment Parts Diagram

  • Title
1

Homelite A07904

DRIVESHAFT HOUSING

Note: Includes items 2-3

$

$

Not available

2

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

3

Homelite UP04369

SHAFT-Flexible
(Superseded to A07679)

$12.99

$

Usually ships in 3-7 days

0

4

Homelite UP06534

FRONT HANDLE ("J")

Note: Includes items 5-10

$

$

Not available

5

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

6

Homelite UP04154

SCREW-Hex Hd. (1/4-20 X 1/2")
(Superseded to 82278)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite UP04158

SCREW-Hex Hd. (1/4-20 X 1")
(Superseded to 82496)

$

$

Not available

8

Homelite UP04105

CLAMP-Handle Bar
(Superseded to 00422)

$1.49

$

In Stock, only 1 left!

0

9

Homelite UP03399

NUT-Hex (1/4-20)
(Superseded to 81242)

Note: Torque Specs 90-100 In/Lbs, 10.2-11.3 Nm.

$1.99

$

Usually ships in 3-7 days

0

10

Homelite UP04251

WASHER-Flat (1/4")
(Superseded to 84004)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite UP06970

GEAR HEAD
(Superseded to UP06970A)

Note: Includes items 12-13

$

$

Not available

12

Homelite UP04157

Screw, Taptite Hex Hd. (10-24 x 1/2")
(Superseded to 82459)

Note: Torque Specs 15-20 In/Lbs, 1.7-2.3 Nm.

$

$

Not available

13

Homelite UP04155

Screw-Hex Hd. (10-24 x 5/8")
(Superseded to PS01605)

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm.

$

$

Not available

14

Homelite UP04126

WASHER-Flanged
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

15

Homelite D98717C

BLADE-Tri-Arc(TM) (8")
(Superseded to 638006004)

$21.99

$

In Stock, only 1 left!

0

16

Homelite UP04129

WASHER-Cupped
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

17

Homelite UP03492

NUT-Hex Locking (R.H.)

Note: Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm.

$4.99

$

Usually ships in 3-7 days

0

18

Homelite UP04535

BLADE GUARD
(Superseded to 044101)

$52.99

$

Usually ships in 3-7 days

0
