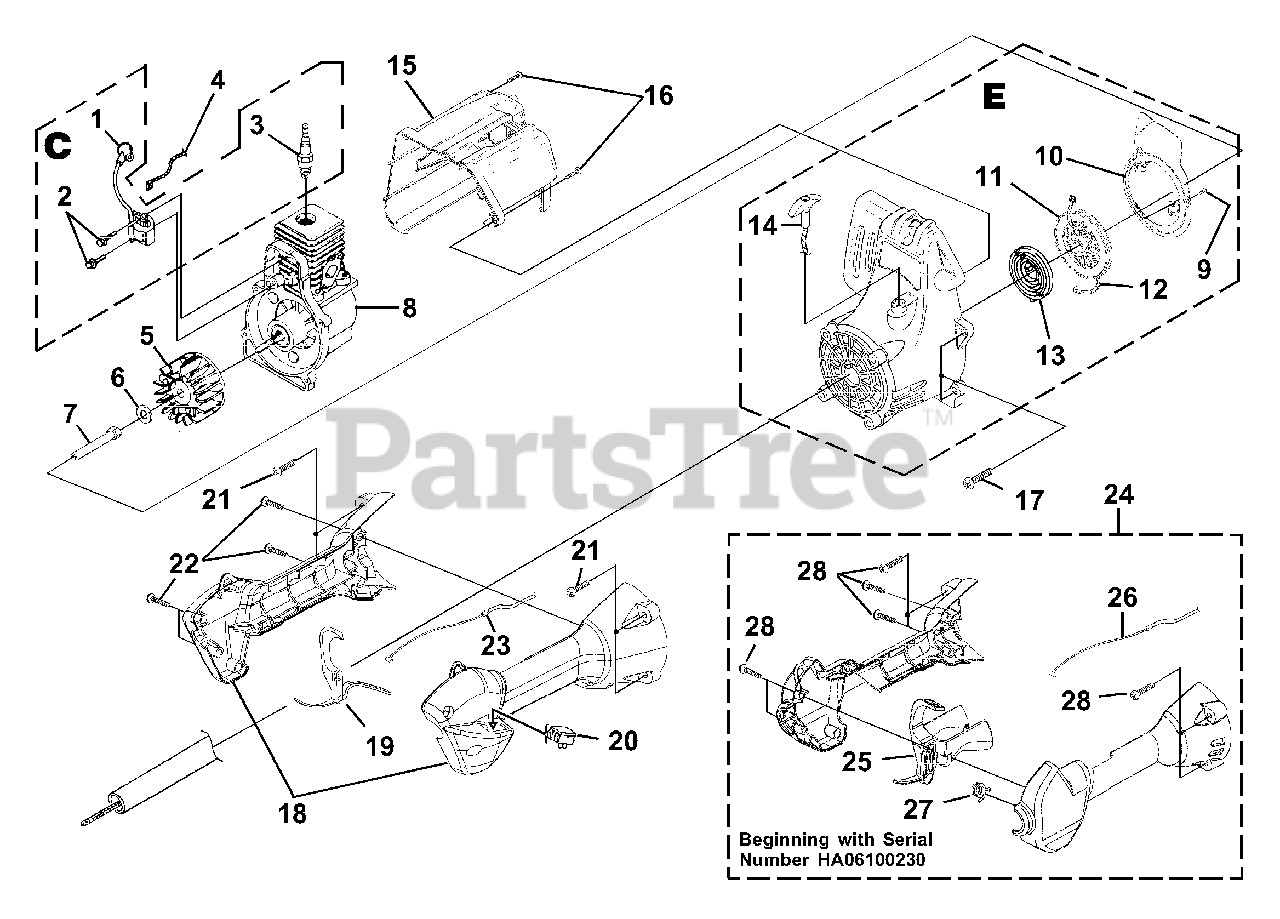

D 725 CDE (UT-20695) - Homelite Plus String Trimmer Ignition - Rotor - Starter Parts Diagram

Plus String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

C

Homelite A07174

IGNITION KIT
(Superseded to A07174A)

Note: Includes items 1-3

$

$

Not available

1

Homelite UP03868

TERMINAL & COVER
(Superseded to A33055)

$

$

Not available

2

Homelite UP03896

SCREW-Taptite (8-32 X 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite Blue 242

$2.49

$

Usually ships in 3-7 days

0

3

Homelite UP03883

SPARK PLUG

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm.

$3.49

$

In Stock, only 3 left!

0

4

Homelite UP04690

LEAD-Electrical
(Superseded to A07238)

$

$

Not available

5

Homelite UP03009

ROTOR KIT

Note: Includes item 6

$

$

Currently unavailable

6

Homelite UP03906

WASHER-Flat
(Superseded to 95479A)

$

$

Not available

7

Homelite UP04271

CONNECTOR-Drive (.250)
(Superseded to 98795A)

Note: Torque Specs 100-150 In/Lbs, 11.3-16.9 Nm.

$

$

Not available

8

Homelite UP02994

SHORT BLOCK
(Superseded to 984525001)

Note: (See "Engine Internal" illustration and parts list)

$225.99

$

In Stock, only 1 left!

0

E

Homelite UP02963

COMPLETE STARTER ASSEMBLY

Note: Includes items 9-14

$

$

Not available

9

Homelite UP04164

SCREW-Thread Form (8-16 X 1/2")
(Superseded to 82543)

Note: Torque Specs 10-20 In/Lbs, 1.1-2.3 Nm.

$

$

Not available

10

Homelite UP03013

BAFFLE-Air
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

11

Homelite UP03012

PULLEY-Starter
(Superseded to PS01122)

$1.99

$

In Stock, only 2 left!

0

12

Homelite UP03912

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

13

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$5.49

$

Usually ships in 3-7 days

0

14

Homelite UP03026

GRIP-Starter (Yellow)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

15

Homelite UP02964

HOUSING-Rear Kit
(Superseded to 984633001)

Note: Includes item 16

$14.99

$

Usually ships in 3-7 days

0

16

Homelite UP03900

SCREW-Taptite (10-14 X 3/4")
(Superseded to 82563)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

In Stock, Qty 6

0

17

Homelite UP03406

SCREW-Taptite (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

Usually ships in 3-7 days

0

18

Homelite UP03113

CONTROL HANDLE ASSY.

Note: Includes items 19-22

$29.99

$

Usually ships in 3-7 days

0

19

Homelite UP03015

TRIGGER-Throttle
(Superseded to 09219)

$

$

Not available

20

Homelite UP03027

PLUG-Switch
(Superseded to PS01447)

$

$

Not available

21

Homelite UP03895

SCREW-Taptite (10-14 X 7/8")
(Superseded to 82537)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

Usually ships in 3-7 days

0

22

Homelite UP04247

SCREW-Truss Hd. (10-14 x 1")
(Superseded to 82589)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$2.99

$

In Stock, Qty 8

0

23

Homelite UP03020

CABLE-Throttle
(Superseded to 09285)

$

$

Not available

24

Homelite UP03113

CONTROL HANDLE ASSY.

Note: Includes 25-28

$29.99

$

Usually ships in 3-7 days

0

25

Homelite UP03207

TRIGGER
(Superseded to UP03207A)

$5.99

$

Usually ships in 3-7 days

0

26

Homelite UP03172

CABLE-Throttle
(Superseded to PS01177)

$1.49

$

In Stock, only 1 left!

0

27

Homelite UP03210

SPRING
(Superseded to PS01718)

$2.49

$

In Stock, only 2 left!

0

28

Homelite UP04247

SCREW-Truss Hd. (10-14 x 1")
(Superseded to 82589)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$2.99

$

In Stock, Qty 8

0
