D 725 CD (UT-20761) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

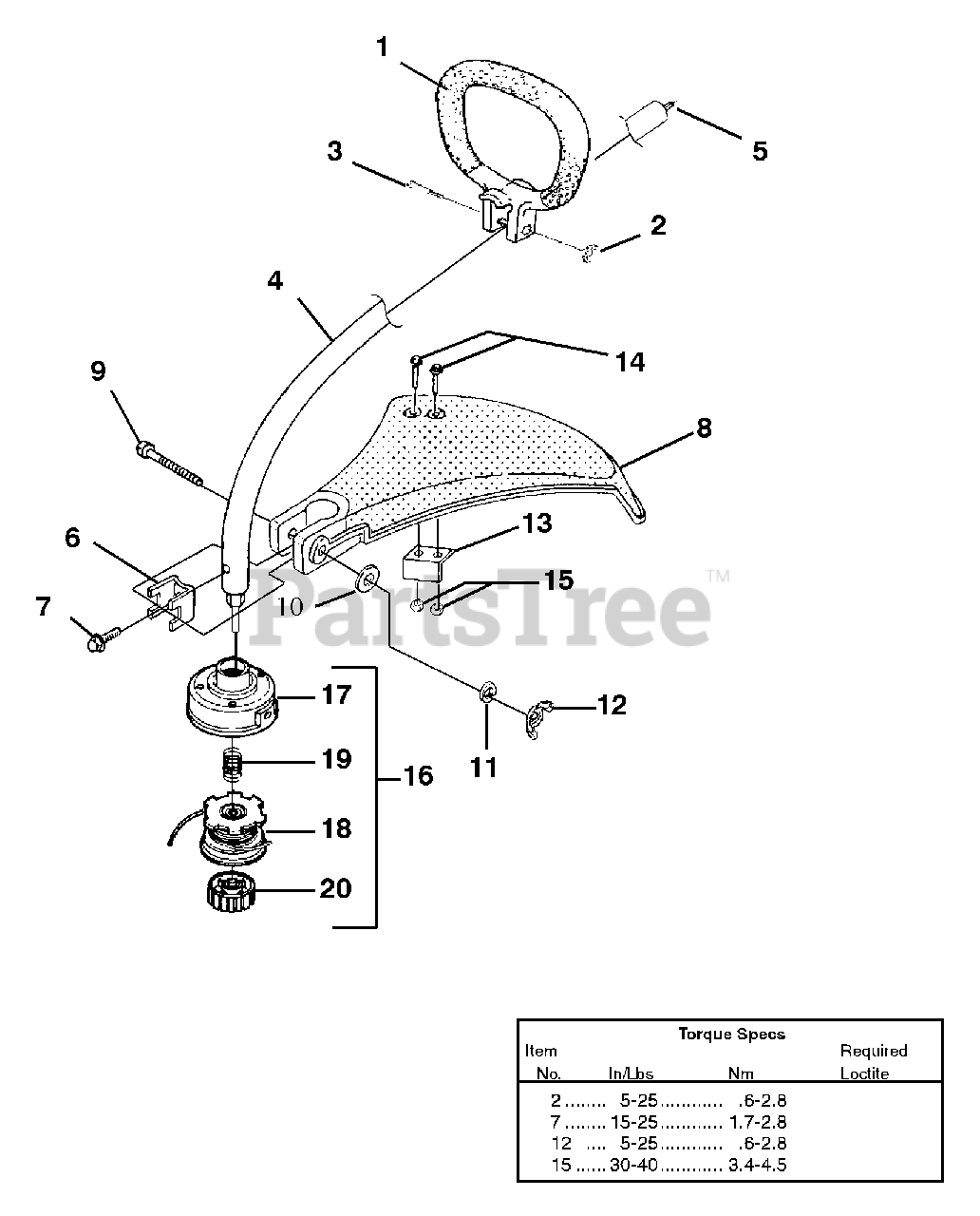

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP03010A

HANDLE ASSY.-Front

Note: Includes Items 1-3

$

$

Not available

2

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

3

Homelite 80295

SCREW-Cap Hex Hd.

$4.99

$

Usually ships in 3-7 days

0

4

Homelite PA00472A

DRIVESHAFT HOUSING ASSY.
(Superseded to 985380001)

$49.99

$

Usually ships in 3-7 days

0

5

Homelite PS01502

SHAFT-Flexible
(Superseded to 986117001)

$

$

Not available

6

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

7

Homelite 983823001

SCREW-Sems Hex Hd. (#10-24 X 3/8")
(Superseded to 660647001)

$1.99

$

In Stock, only 1 left!

0

8

Homelite UP06710A

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to T308744001)

Note: Includes Items 8-15

$

$

Not available

9

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

11

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

12

Homelite 93992

NUT-Wing, Washer Faced (1/4-20)

$

$

Not available

13

Homelite UP04119

BLADE-Cut-Off

$

$

Not available

14

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

15

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

16

Homelite UP04408

STRINGHEAD-Complete
(Superseded to UP04408A)

Note: Includes Items 16-20

$

$

Not available

17

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

18

Homelite PA0387A

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

19

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

20

Homelite A98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to 308042002)

$

$

Not available
