D 4400 B (UT-10750) - Homelite Chainsaw Carburetor - Muffler Parts Diagram

Chainsaw

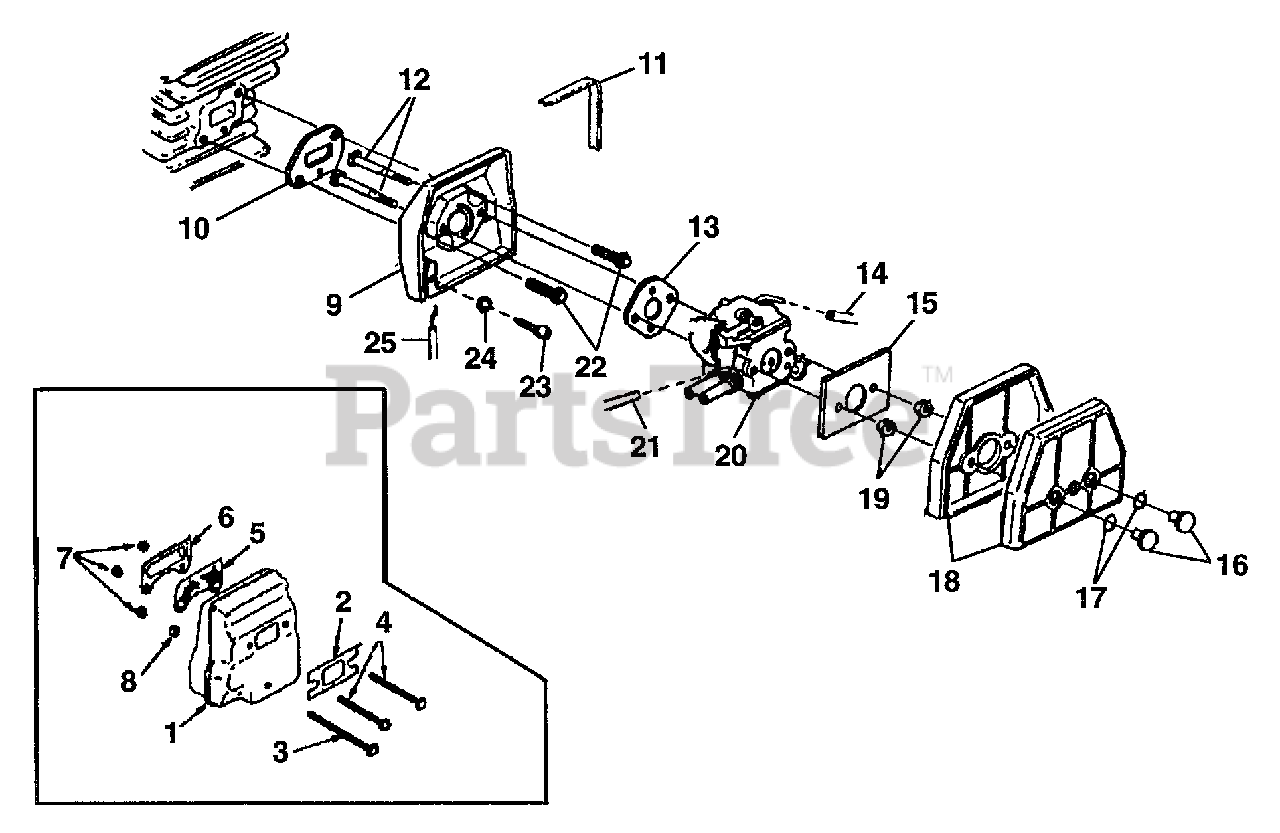

Carburetor - Muffler Parts Diagram

  • Title

1

Homelite A04414

MUFFLER - Complete
(Superseded to A06631A)

$62.99

$

Usually ships in 3-7 days

0

2

Homelite 01543B

GASKET-Muffler

$

$

Not available

3

Homelite 02176

SCREW- Square Hd. (10-32 x 2 1/2)

$

$

Not available

4

Homelite 02509

SCREW- Square Hd. (10-32 x 2 1/4)

$

$

Not available

5

Homelite 01532

SCREEN-Spark Arrestor

$

$

Not available

6

Homelite 01531A

COVER- Exhaust

$

$

Not available

7

Homelite 81206

NUT Locking Hex (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 7

0

8

Homelite 84009

WASHER- Flat (#12)
(Superseded to 84003)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite A02583

SPACER-Carburetor

$

$

Currently unavailable

10

Homelite 01029

GASKET- Carburetor Spacer
(Superseded to UP06622)

$

$

Not available

11

Homelite 01823

FOAM- Adhesive

$

$

Not available

12

Homelite 00905A

SCREW- Carburetor Retainer

$

$

Not available

13

Homelite 98339

GASKET-Carburetor
(Superseded to 900843001)

$

$

Not available

14

Homelite 7031036

TUBING-Rubber (9")
(Superseded to UP06561)

$

$

Not available

15

Homelite 02695

RETAINER PLATE

$

$

Not available

16

Homelite 01178

RETAINER NUT- Filter

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 02718

"O" RING

$

$

Not available

18

Homelite A02582A

AIR FILTER
(Superseded to UP06788)

$

$

Currently unavailable

19

Homelite 81009

NUT- Hex (#8-32)

$

$

Not available

20

Homelite A08628

CARBURETOR (Walbro WT-452)

$

$

Currently unavailable

21

Homelite 7031019

TUBING- Rubber (4 3/4")
(Superseded to 0745422)

$9.49

$

In Stock, only 1 left!

0

22

Homelite 82430

SCREW Mach. Hex Hd. (8-32 x 7/8")

$

$

Not available

23

Homelite 82513

SCREW Thread Form (6-19 x 5/8")

$2.49

$

In Stock, Qty 5

0

24

Homelite 84123

WASHER Flat (#6)

$

$

Not available

25

Homelite 00997D

CABLE Throttle

$

$

Currently unavailable
