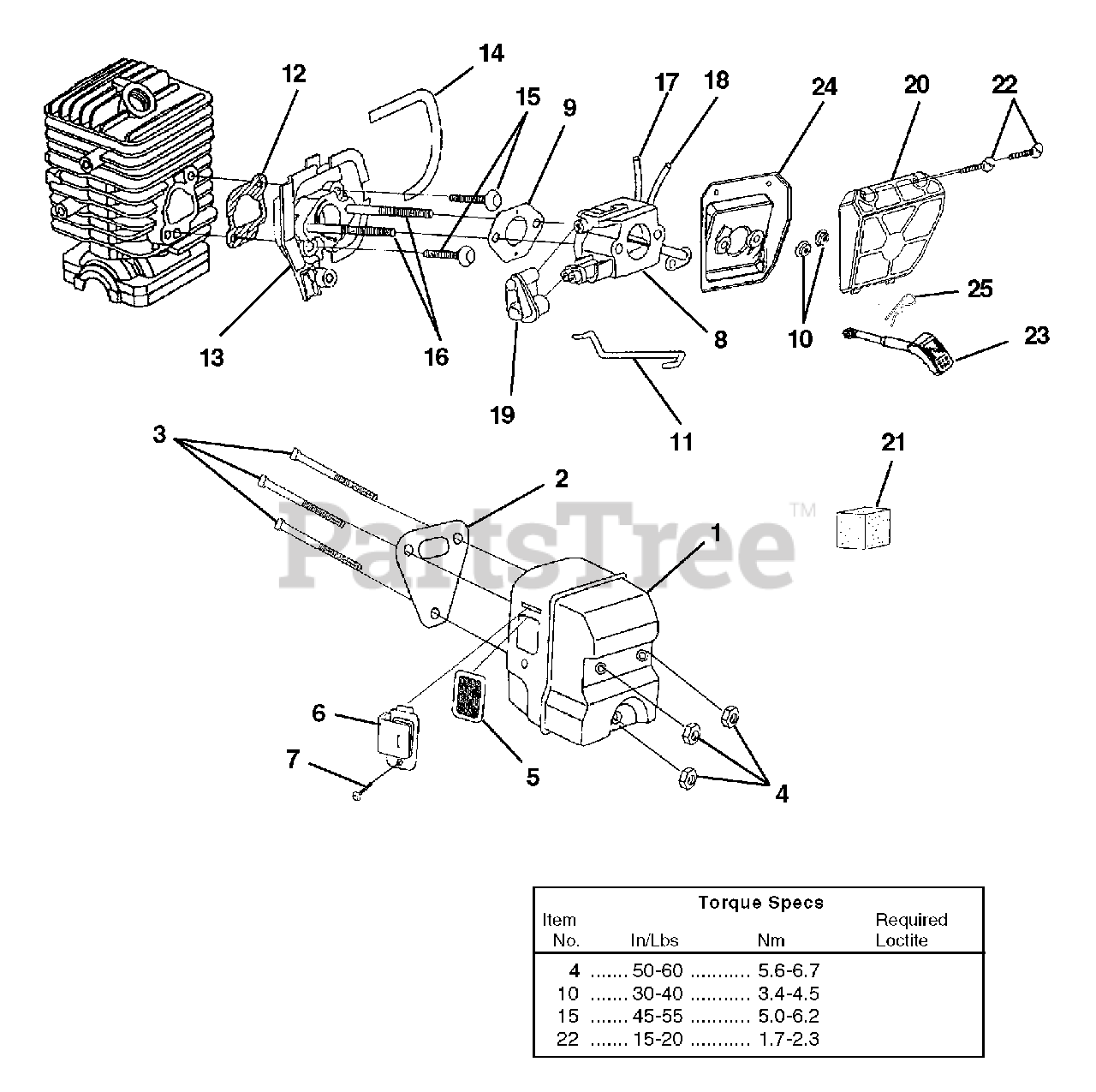

D 3300 C (UT-10882) - Homelite Chainsaw Carburetor - Muffler - Air Filter Parts Diagram

Chainsaw

Carburetor - Muffler - Air Filter Parts Diagram

  • Title
1

Homelite 984890001

Muffler Kit
(Superseded to UP06752A)

Note: Includes items 2-7

$

$

Not available

2

Homelite 900848001

Muffler Gasket
(Superseded to 06839)

$2.49

$

In Stock, only 4 left!

0

3

Homelite PS04525

Screw-Square Hd.
(Superseded to 660626001)

$

$

Not available

4

Homelite 81206

Nut-Locking Hex (10-32)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

5

Homelite 07394

Screen, Spark
(Superseded to A07402)

$

$

Not available

6

Homelite 07396A

Deflector, Muffler

$6.49

$

Usually ships in 3-7 days

0

7

Homelite 95922

Screw (8-32 x .312)
(Superseded to 660624001)

$

$

Not available

8

Homelite A09159A

Carburetor Assembly
(Superseded to 000998271)

Note: Includes items 9-10

$154.99

$

Usually ships in 3-7 days

0

9

Homelite 98339

Carburetor Gasket
(Superseded to 900843001)

$

$

Not available

10

Homelite 07589

Flange Nut (10-24)

$1.99

$

In Stock, only 1 left!

0

11

Homelite PS01591

Throttle Wire
(Superseded to 631078002)

$

$

Not available

12

Homelite 06840A

Gasket, Heat Dam

$

$

Not available

13

Homelite 04916

Carburetor Spacer

$

$

Not available

14

Homelite 06873

Seal, Heat Dam

$

$

Not available

15

Homelite 82539

Screw, Truss Hd. Taptite (10-24 x 7/8")
(Superseded to 660616001)

$

$

Not available

16

Homelite 06852

Screw, Carburetor

$4.99

$

In Stock, only 1 left!

0

17

Homelite 0745434

Fuel Line (Tank to Carburetor 8 1/2")

$

$

Not available

18

Homelite 0745416

Fuel Line (Carburetor to Purge Bulb 4")

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 04907

Carburetor Grommet

$

$

Not available

Homelite UP06753A

Air Filter Kit

Note: Includes items 20-22

$

$

Not available

20

Homelite 04938

Air Filter Cover

$

$

Not available

21

Homelite PS05070

Pre Filter (In engine housing)

$

$

Not available

22

Homelite 82617

Screw-Slotted Pan Hd. (8-16 x 5/8")

$1.99

$

In Stock, only 2 left!

0

23

Homelite PS06280

Rod, Choke

$

$

Not available

24

Homelite 04937

Air Filter Plate

$

$

Not available

25

Homelite 08939

Spring Clip (Choke Rod)

$

$

Not available
