CZT 72 x (967943501-00) - RedMax 72" Zero-Turn Riding Mower (2018-07) SEAT Parts Diagram

72" Zero-Turn Riding Mower

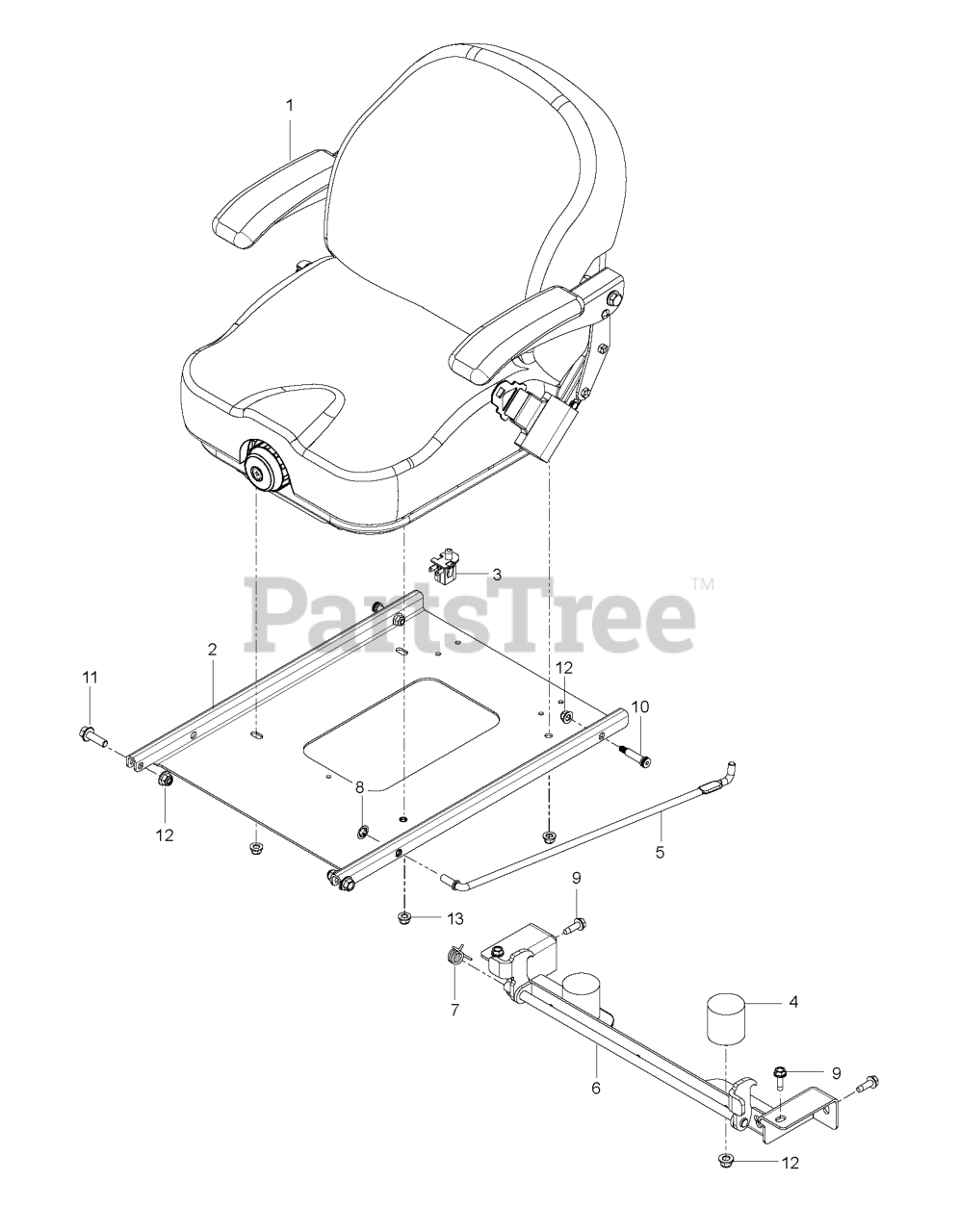

SEAT Parts Diagram

  • Title

1

RedMax 590899801

SEAT.I3M.SUSPENSION.REDMAX

$1595.99

$

Usually ships in 3-10 days

0

2

RedMax 510039302

PAN, SEAT, BLACK

$145.99

$

Usually ships in 3-10 days

0

3

RedMax 532421062

SWITCH.SNAPMOUNT.NC

$14.99

$

In Stock, only 2 left!

0

4

RedMax 510283801

BUMPER, RUBBER

$24.99

$

Usually ships in 3-10 days

0

5

RedMax 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 585857402

BRACKET.PNT.LATCH.SEAT.BUMPER

$170.99

$

Usually ships in 3-10 days

0

7

RedMax 520283101

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

8

RedMax 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 817490516

SCREW
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0

10

RedMax 515990601

BOLT, SHOULDER 3/8 X 1.25
(Superseded to 515990602)

$2.49

$

Usually ships in 3-10 days

0

11

RedMax 525834201

HHFS 3/8-16 X 1.25 GD 5
(Superseded to 525834202)

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

13

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
