CZT 72 x (967943501-00) - RedMax 72" Zero-Turn Riding Mower (2018-07) HYDRAULIC PUMP - MOTOR Parts Diagram

72" Zero-Turn Riding Mower

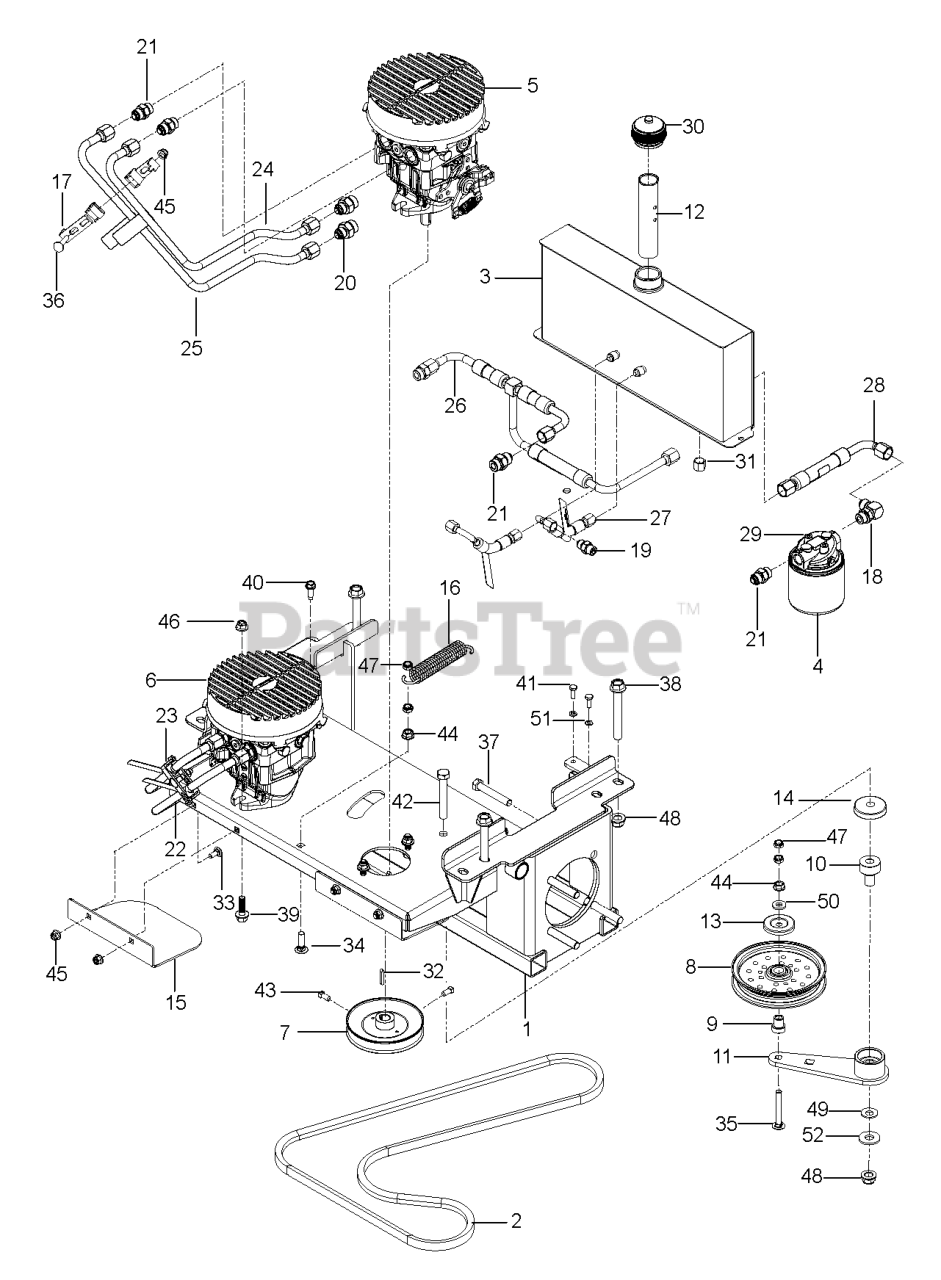

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

1

RedMax 506007902

FRAME, NYDR SUB, BLK

$909.99

$

Usually ships in 3-10 days

0

2

RedMax 573978301

BELT, "B", 75.5"

$66.99

$

In Stock, only 3 left!

0

3

RedMax 576035902

ASSEMBLY, RESERVOIR, OIL

$376.99

$

Usually ships in 3-10 days

0

4

RedMax 522805401

FILTER 25 MICRON

$31.99

$

Usually ships in 3-10 days

0

5

RedMax 506120401

HG_PUMP, 16CC

$1595.99

$

In Stock, only 1 left!

0

6

RedMax 506120501

HG_PUMP, 16CC

$1481.99

$

Usually ships in 3-10 days

0

7

RedMax 510019002

PULLEY, PUMP 17MM

$47.99

$

In Stock, only 2 left!

0

8

RedMax 510283702

IDLER, FLAT, 5.5"
(Superseded to 510283701)

$60.99

$

Usually ships in 3-10 days

0

9

RedMax 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

10

RedMax 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

11

RedMax 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

12

RedMax 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

13

RedMax 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 539114662

SHIELD, DUST
(Superseded to 596394601)

$3.99

$

In Stock, only 3 left!

0

15

RedMax 574398502

SHIELD, PULLEY, BLK

$34.99

$

Usually ships in 3-10 days

0

16

RedMax 577437201

SPRING, PUMP

$8.99

$

In Stock, only 2 left!

0

17

RedMax 576577701

ASM, VIB, HYDRO HOSE
(Superseded to 576587101)

$18.99

$

In Stock, only 1 left!

0

18

RedMax 539101242

ELBOW, 90 DEGREE

$34.99

$

Usually ships in 3-10 days

0

19

RedMax 539103316

STRAIGHT FITG

$11.99

$

Usually ships in 3-10 days

0

20

RedMax 539101239

CONNECTOR, STRAIGHT
(Superseded to 539101237)

$12.99

$

In Stock, only 2 left!

0

21

RedMax 539101237

FITTING, STRAIGHT F6400-8-8-0

$12.99

$

In Stock, only 2 left!

0

22

RedMax 510013601

LINE, RT A

$120.99

$

Usually ships in 3-10 days

0

23

RedMax 510013701

LINE, RT B

$109.99

$

Usually ships in 3-10 days

0

24

RedMax 510013801

LINE, LT A

$242.99

$

Usually ships in 3-10 days

0

25

RedMax 510013901

LINE, LT B

$121.99

$

In Stock, only 1 left!

0

26

RedMax 510014001

LINE, CHARGE

$205.99

$

In Stock, only 1 left!

0

27

RedMax 510014501

LINE, CASE

$169.99

$

Usually ships in 3-10 days

0

28

RedMax 510010701

LINE, SUCTION

$34.99

$

Usually ships in 3-10 days

0

29

RedMax 575872301

FILTER HEAD

$43.99

$

Usually ships in 3-10 days

0

30

RedMax 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0

31

RedMax 539105168

NUT 9/16-18 JIC CAP

$3.99

$

In Stock, only 3 left!

0

32

RedMax 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

33

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

RedMax 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 872140622

BOLT

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 525544801

HHFS 1/2-13 X 4.0 GD8 ZD

$6.49

$

Usually ships in 3-10 days

0

39

RedMax 525834201

HHFS 3/8-16 X 1.25 GD 5
(Superseded to 525834202)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 817490516

SCREW
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0

41

RedMax 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

42

RedMax 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

$3.49

$

Usually ships in 3-10 days

0

43

RedMax 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

44

RedMax 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

46

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

47

RedMax 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

48

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

49

RedMax 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

50

RedMax 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

51

RedMax 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0
