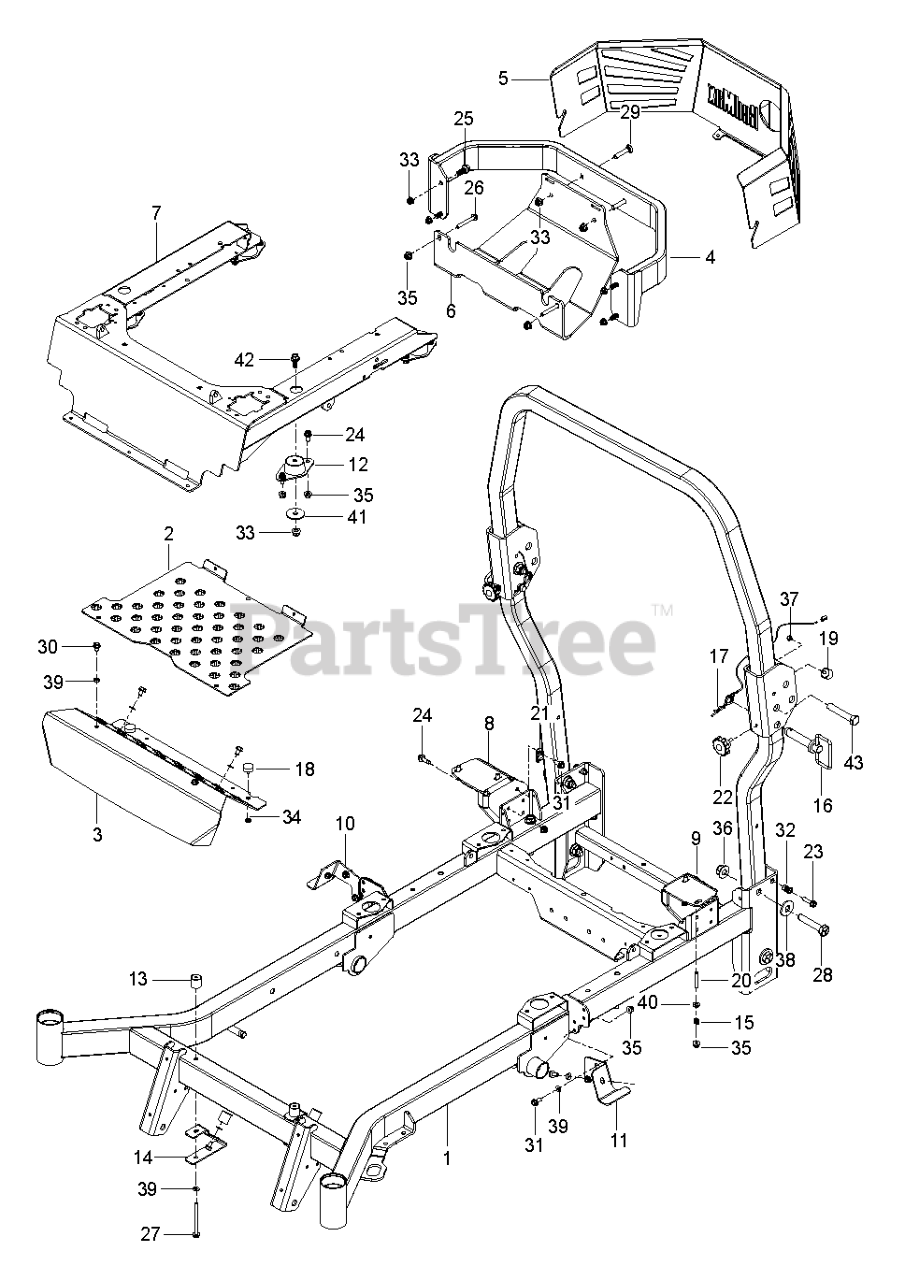

CZT 72 x (967943501-00) - RedMax 72" Zero-Turn Riding Mower (2018-07) FRAME Parts Diagram

72" Zero-Turn Riding Mower

FRAME Parts Diagram

  • Title

1

RedMax 574482808

FRAME W/DECALS REDMAX 72

$2165.99

$

Usually ships in 3-10 days

0

2

RedMax 574215605

PLATE FLOOR PAN SNAPPER RED X6

$91.99

$

Usually ships in 3-10 days

0

3

RedMax 574215704

PLATE.FOOT.REST.BLACK

$79.99

$

Usually ships in 3-10 days

0

4

RedMax 522675705

BUMPER REAR LONG SNAPPER RED X

$227.99

$

Usually ships in 3-10 days

0

5

RedMax 574299106

GUARD REAR SNAPPER RED X672

$250.99

$

Usually ships in 3-10 days

0

6

RedMax 574228604

PLATE, SKID, BLACK
(Superseded to 596694103)

$113.99

$

Usually ships in 3-10 days

0

7

RedMax 577327704

FRAME SEAT MOUNT SNAPPER RED X

$376.99

$

Usually ships in 3-10 days

0

8

RedMax 529279603

MOUNT, RT TANK, BLK

$72.99

$

Usually ships in 3-10 days

0

9

RedMax 529279703

MOUNT, LT TANK, BLK

$72.99

$

Usually ships in 3-10 days

0

10

RedMax 593803203

BRACKET TANK.FT.RT BLACK MS-43

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 529280003

MOUNT, TANK, LT-BLK

$60.99

$

Usually ships in 3-10 days

0

12

RedMax 510082101

MOUNT, ISO

$28.99

$

Usually ships in 3-10 days

0

13

RedMax 510083201

MOUNT, F/F INSERT

$7.49

$

In Stock, Qty 18

0

14

RedMax 510040301

BRACKET, REST MOUNT

$10.99

$

Usually ships in 3-10 days

0

15

RedMax 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

16

RedMax 591101601

PIN.ROPS.W/HANDLE

$15.99

$

Usually ships in 3-10 days

0

17

RedMax 591101701

PIN.HAIR.DOUBLE.LOOP.W/LANYARD

$

$

Not available

18

RedMax 575811501

BUMPER, 1/4-20 STUD, 1/4

$6.99

$

Usually ships in 3-10 days

0

19

RedMax 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

In Stock, only 2 left!

0

20

RedMax 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

21

RedMax 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

22

RedMax 591344501

KNOB.5/16-18X1"BLACK

$9.49

$

In Stock, only 2 left!

0

23

RedMax 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

25

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, Qty 5

0

26

RedMax 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 580754601

5/8-11 X 3-1/2 HHB GRADE 5
(Superseded to 580754602)

$9.49

$

In Stock, only 2 left!

0

29

RedMax 539100145

RHSNB 3/8C X 2

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 817490516

SCREW
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0

32

RedMax 539111028

NUTSERT 5/16-18 THICK GRIP

$

$

Not available

33

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

34

RedMax 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

36

RedMax 525829101

NUT 5/8-11 FLG NYLOC ZD
(Superseded to 525829102)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 539102653

WASHER, 5/8 FLAT

$3.99

$

In Stock, only 4 left!

0

39

RedMax 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

41

RedMax 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, Qty 6

0

42

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, Qty 5

0

43

RedMax 591176601

BOLT.HEXAG.5/8-11X4-1/4.G5.ZPY

$6.49

$

Usually ships in 3-10 days

0

RedMax 590877802

Note: NOT SHOWN

$

$

Currently unavailable
