CZT 60 x (967671801-00) - RedMax 60" Zero-Turn Riding Mower (2017-09) MOWER LIFT / DECK LIFT Parts Diagram

60" Zero-Turn Riding Mower

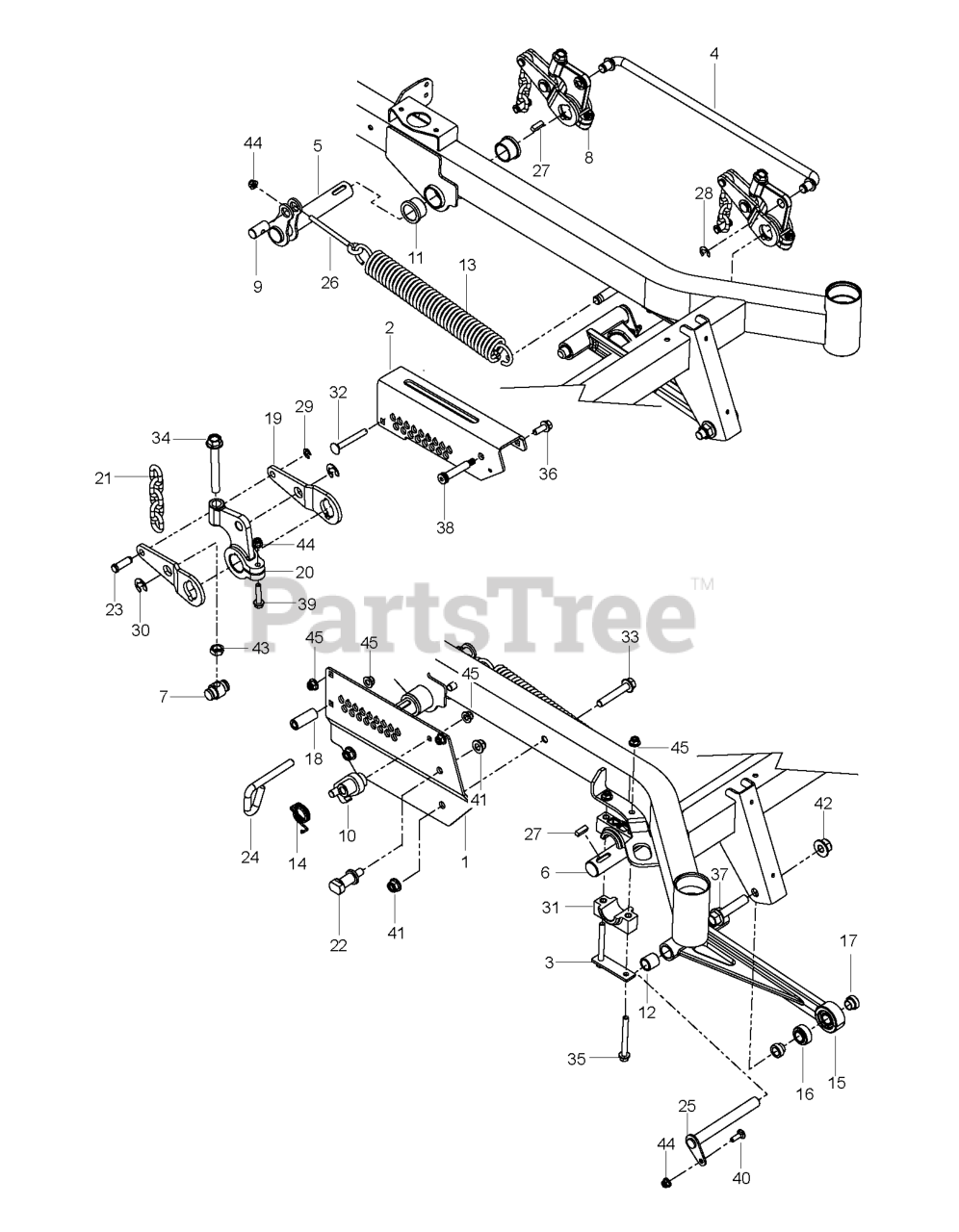

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

RedMax 510408505

PLATE INNER HEIGHT SNAPPER RED

$37.99

$

Usually ships in 3-10 days

0

2

RedMax 510408605

PLATE OUTER HEIGHT SNAPPER RED

$34.99

$

Usually ships in 3-10 days

0

3

RedMax 525822201

PLATE, PILLOW BLACK

$21.99

$

Usually ships in 3-10 days

0

4

RedMax 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

5

RedMax 510410703

SHAFT, RR LIFT

$60.99

$

Usually ships in 3-10 days

0

6

RedMax 510409602

SHAFT, LIFT, FT

$96.99

$

Usually ships in 3-10 days

0

7

RedMax 510023601

SHAFT, LIFT TRUNION WSL

$20.99

$

Usually ships in 3-10 days

0

8

RedMax 525465501

ASSEMBLY, DECK LIFT CRANK

$121.99

$

Usually ships in 3-10 days

0

9

RedMax 510412301

PIVOT, SPRING

$7.49

$

Usually ships in 3-10 days

0

10

RedMax 510406801

LATCH, TRANSPORT WLDMT
(Superseded to 510406802)

$24.99

$

Usually ships in 3-10 days

0

11

RedMax 510089401

BUSHING, FLANGE 1.25 X 1.0

$20.99

$

Usually ships in 3-10 days

0

12

RedMax 510089201

BUSHING, SLEEVE 3/4 X 1.0

$14.99

$

In Stock, only 4 left!

0

13

RedMax 510029201

SPRING, EXTENSION

$40.99

$

In Stock, only 1 left!

0

14

RedMax 510376601

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

15

RedMax 510106501

ASSEMBLY, STRUT

$121.99

$

Usually ships in 3-10 days

0

16

RedMax 510083801

BALL JOINT, 3/4" SWIVEL

$51.99

$

Usually ships in 3-10 days

0

17

RedMax 510362501

SPACER, STRUT

$7.49

$

Usually ships in 3-10 days

0

18

RedMax 510408401

SPACER, HEIGHT PLATE

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 510410002

$9.49

$

Usually ships in 3-10 days

0

20

RedMax 510022501

ARM, CAST LIFT
(Superseded to 525465501)

$121.99

$

Usually ships in 3-10 days

0

21

RedMax 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

22

RedMax 510406701

GUIDE, HEIGHT BAR
(Superseded to 510406702)

$12.99

$

Usually ships in 3-10 days

0

23

RedMax 510090101

PIN, 7/16 CLEVIS
(Superseded to 596919401)

$5.99

$

In Stock, only 2 left!

0

24

RedMax 510016501

PIN, HEIGHT

$14.99

$

Usually ships in 3-10 days

0

25

RedMax 515988201

PIN, STRUT

$24.99

$

Usually ships in 3-10 days

0

26

RedMax 539120993

EYE BOLT 4.5`

$46.99

$

Usually ships in 3-10 days

0

27

RedMax 525822501

KEY, 5/16 SQ X 1.0

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 522705201

RING, E, 7/16

$4.99

$

In Stock, only 1 left!

0

30

RedMax 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

32

RedMax 539122728

3/8-16 X 3` CARR BOLT

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 874490848

HFFS 1/2-13 X 3 GD 5 ZD

$1.99

$

Usually ships in 3-10 days

0

34

RedMax 525465701

HHFS 1/2-13 X 4 GR 5

$24.99

$

Usually ships in 3-10 days

0

35

RedMax 874490652

HHFS 3/8-16 X 3.5 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, Qty 5

0

37

RedMax 874451048

HHFS 5/8-11 X 3.0 GD 8 ZD

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

40

RedMax 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

42

RedMax 525829101

NUT 5/8-11 FLG NYLOC ZD
(Superseded to 525829102)

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 539990625

NUT 1/2 HEX JAM

$3.99

$

In Stock, Qty 10

0

44

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0
