CZT 60 x (967671801-00) - RedMax 60" Zero-Turn Riding Mower (2017-09) BELT GUARD PULLEY Parts Diagram

60" Zero-Turn Riding Mower

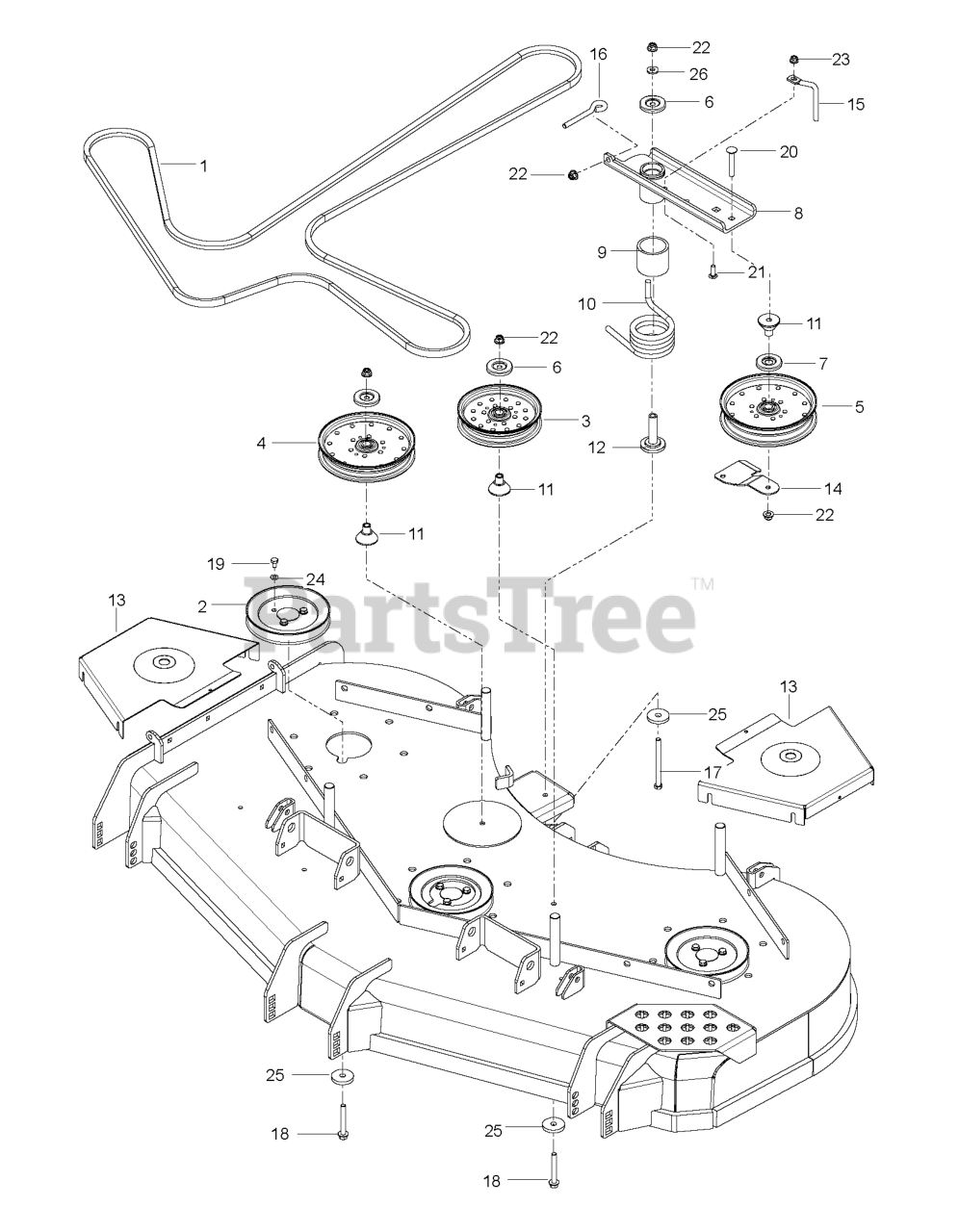

BELT GUARD PULLEY Parts Diagram

  • Title
1

RedMax 588264801

BELT 5V 176.00

$113.99

$

In Stock, Qty 7

0

2

RedMax 539130646

PULLEY - 6.57

$26.99

$

In Stock, only 2 left!

0

3

RedMax 525598201

PULLEY - 7" NARROW
(Superseded to 525598202)

$66.99

$

In Stock, Qty 5

0

4

RedMax 510019601

PULLEY IDLER, 6" NARROW
(Superseded to 597087101)

$66.99

$

In Stock, only 1 left!

0

5

RedMax 510015101

PULLEY - IDLER 7"
(Superseded to 510015102)

$56.99

$

In Stock, only 1 left!

0

6

RedMax 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, only 4 left!

0

7

RedMax 510262201

SHIELD, DUST
(Superseded to 596840301)

$22.99

$

In Stock, Qty 13

0

8

RedMax 525464403

ASSY, IDLER ARM, PZ

$

$

Not available

9

RedMax 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

10

RedMax 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

11

RedMax 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 8

0

12

RedMax 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

13

RedMax 510131205

SHIELD BELT - 60IN SNAPPER RED

$45.99

$

Usually ships in 3-10 days

0

14

RedMax 574262102

BELT.GUIDE.BLACK

$34.99

$

Usually ships in 3-10 days

0

15

RedMax 574262201

BELT KEEPER

$

$

Not available

16

RedMax 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

17

RedMax 874880672

HCS 3/8-16 X 4-1/2 GR 8 ZD

$1.99

$

Usually ships in 3-10 days

0

18

RedMax 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

19

RedMax 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 539128101

CARRIAGE BOLT 3/8-16 X
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

21

RedMax 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

23

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

RedMax 539109600

WASH 5/16 DISC SPRING ZD
(Superseded to 596565001)

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 20+

0

26

RedMax 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0
