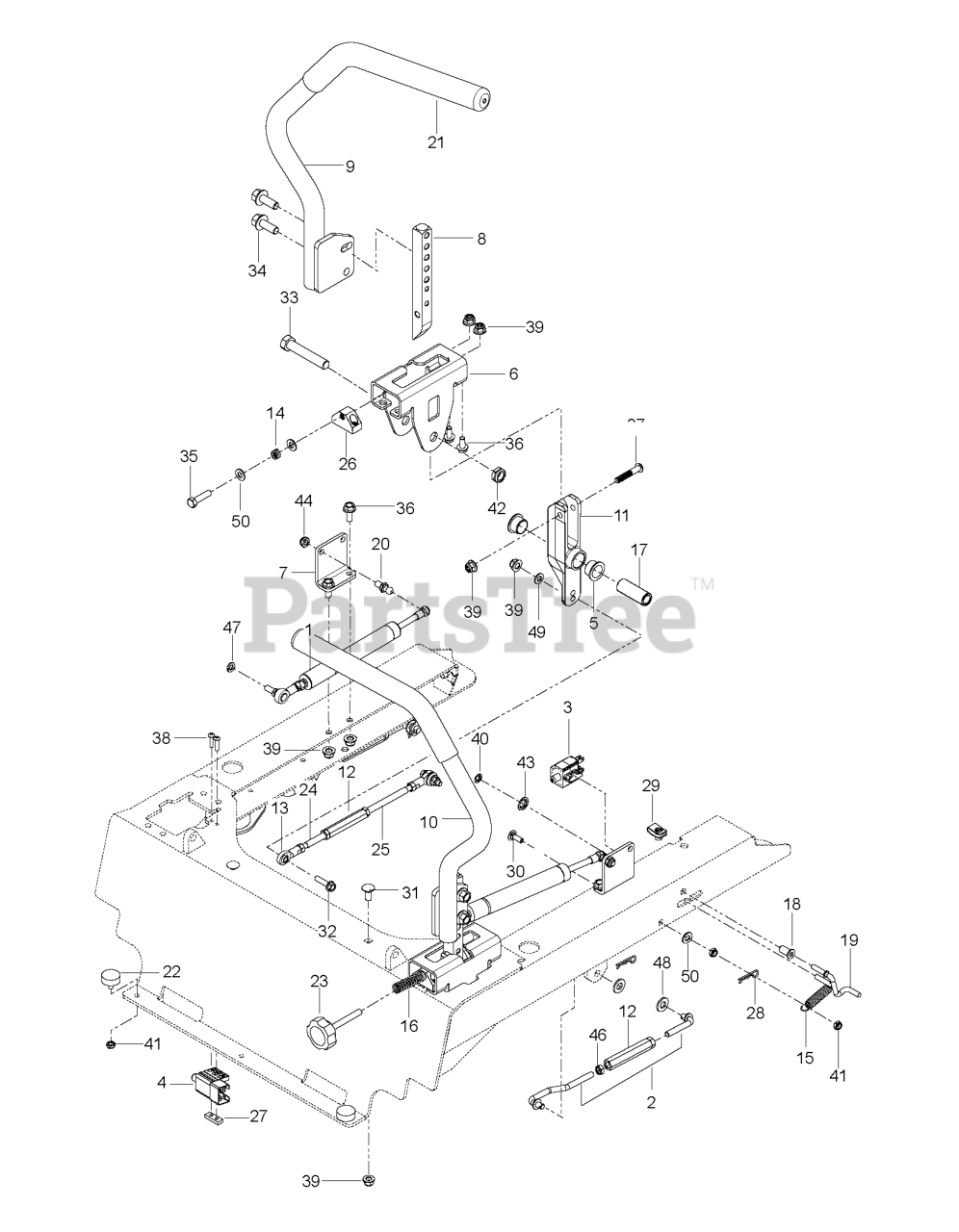

CZT 54 x (967671701-00) - RedMax 54" Zero-Turn Riding Mower (2017-09) STEERING Parts Diagram

54" Zero-Turn Riding Mower

STEERING Parts Diagram

  • Title
1

RedMax 516020301

ASSEMBLY, DAMPENER
(Superseded to 588775401)

$66.99

$

Usually ships in 3-10 days

0

2

RedMax 525447901

ASSEMBLY, SEAT STRUT

Note: . 12 46

$27.99

$

Usually ships in 3-10 days

0

3

RedMax 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

4

RedMax 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

5

RedMax 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

6

RedMax 586737202

BRACKET.CONTROL.NARROWSLOT.BLK

$26.99

$

In Stock, only 1 left!

0

7

RedMax 501741101

BRACKET.DAMPENER

$

$

Not available

8

RedMax 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

9

RedMax 577042403

LEVER.WITH GRIP.RT

$109.99

$

Usually ships in 3-10 days

0

10

RedMax 577042303

LEVER.WITH GRIP.LT

$109.99

$

Usually ships in 3-10 days

0

11

RedMax 576140302

LEVER.CONTROL.SHORT

$78.99

$

Usually ships in 3-10 days

0

12

RedMax 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

13

RedMax 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 1 left!

0

14

$4.99

$

In Stock, only 3 left!

0

15

RedMax 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

16

RedMax 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 9

0

17

RedMax 577252401

SPACER, PIVOT CONTROL
(Superseded to 584927201)

$5.99

$

In Stock, only 3 left!

0

18

RedMax 511594901

BUSHING, 1/4 FLANGE

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 511595001

LINK, SWITCH

$7.49

$

Usually ships in 3-10 days

0

20

RedMax 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 539130894

GRIP - DRIVE LEVER 12"

$9.99

$

In Stock, only 3 left!

0

22

RedMax 575811501

BUMPER, 1/4-20 STUD, 1/4

$6.99

$

Usually ships in 3-10 days

0

23

RedMax 539131799

KNOB
(Superseded to 596400701)

$10.99

$

In Stock, Qty 17

0

24

RedMax 522559201

LINKAGE, CONTROL, FT

$

$

Not available

25

RedMax 522842801

LINKAGE, CONTROL, RR

$91.99

$

Usually ships in 3-10 days

0

26

RedMax 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

27

RedMax 581223001

PLATE NUT ZTR
(Superseded to 581223002)

$3.99

$

In Stock, only 4 left!

0

28

RedMax 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

30

RedMax 872110406

BOLT
(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

31

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

RedMax 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, Qty 5

0

35

RedMax 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

38

RedMax 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

39

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

40

RedMax 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

Usually ships in 3-10 days

0

42

RedMax 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

43

RedMax 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

46

RedMax 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 539990187

WASHER 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

48

$4.99

$

In Stock, Qty 5

0

49

RedMax 539990692

WASHER 5/16 FLAT
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

50

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0
