CZT 54 L (967943601-00) - RedMax 54" Zero-Turn Riding Mower (2018-09) ENGINE PLATE Parts Diagram

54" Zero-Turn Riding Mower

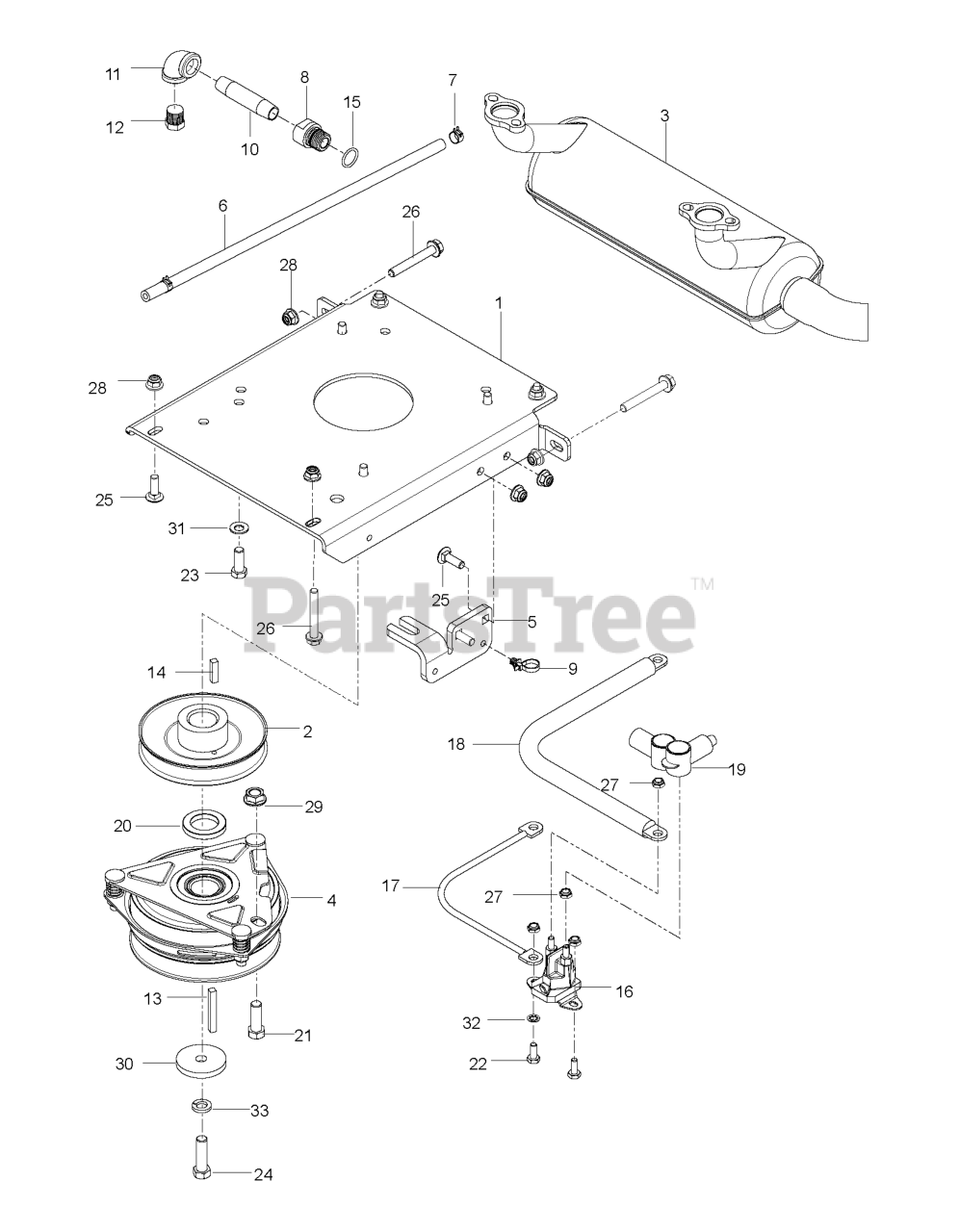

ENGINE PLATE Parts Diagram

  • Title

1

RedMax 510004602

PLATE.ENGINE.BLACK

$133.99

$

Usually ships in 3-10 days

0

2

RedMax 510019801

PULLEY, ENGINE

$56.99

$

In Stock, only 1 left!

0

3

RedMax 525750201

MUFFLER.26HP.KAW.FX651V-730V

$227.99

$

Usually ships in 3-10 days

0

4

RedMax 539113437

CLUTCH, 150 FT/LBS

$484.99

$

Usually ships in 3-10 days

0

5

RedMax 522676702

STOP, CLUTCH, OGURA

$30.99

$

Usually ships in 3-10 days

0

6

RedMax 587044820

HOSE 1/4" LOW PERMEATION FUEL

$11.99

$

In Stock, Qty 11

0

7

RedMax 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

8

RedMax 539119680

ADAPTER, OIL DRAIN

$20.99

$

Usually ships in 3-10 days

0

9

RedMax 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 539118911

PIPE NIPPLE 3/8 X 3

$7.49

$

Usually ships in 3-10 days

0

11

RedMax 539105072

90 DEG.ELBOW 3/8NPT

$7.99

$

Usually ships in 3-10 days

0

12

RedMax 522837001

PLUG, DRAIN 3/8 NPTF

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 539910210

KEY 1/4 SQ X 2

$7.49

$

In Stock, only 1 left!

0

14

RedMax 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 5

0

15

RedMax 539109618

O-RING

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 586638201

NEEDS DESCRIPTION

$

$

Currently unavailable

17

RedMax 522710701

CABLE, NEG, 55"

$34.99

$

Usually ships in 3-10 days

0

18

RedMax 522718701

CABLE, POSITIVE, 55"

$26.99

$

In Stock, only 2 left!

0

19

RedMax 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

20

RedMax 525313901

SPACER, .25 X 1.135 I.D.
(Superseded to 525313902)

$24.99

$

Usually ships in 3-10 days

0

21

RedMax 539104867

HCS 7/16-14 X 1-1/4 GR 5 ZD
(Superseded to 596436601)

$2.49

$

Usually ships in 3-10 days

0

22

RedMax 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 1 left!

0

23

RedMax 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 11

0

24

RedMax 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR
(Superseded to 581332805)

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

29

RedMax 539102582

NUT 7/16C WHIZ
(Superseded to 596577901)

$3.99

$

In Stock, only 4 left!

0

30

RedMax 539125626

BLADE WASHER

$9.99

$

Usually ships in 3-10 days

0

31

RedMax 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

32

RedMax 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, Qty 20+

0

RedMax 525554201

HARNESS, FX KAW

Note: NOT SHOWN

$37.99

$

Usually ships in 3-10 days

0

RedMax 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

Note: NOT SHOWN

$2.49

$

In Stock, Qty 20+

0

RedMax 574825801

KIT, SPARK ARRESTOR

$56.99

$

Usually ships in 3-10 days

0
