CZT 52 (967671301-00) - RedMax 52" Zero-Turn Riding Mower (2017-09) STEERING Parts Diagram

52" Zero-Turn Riding Mower

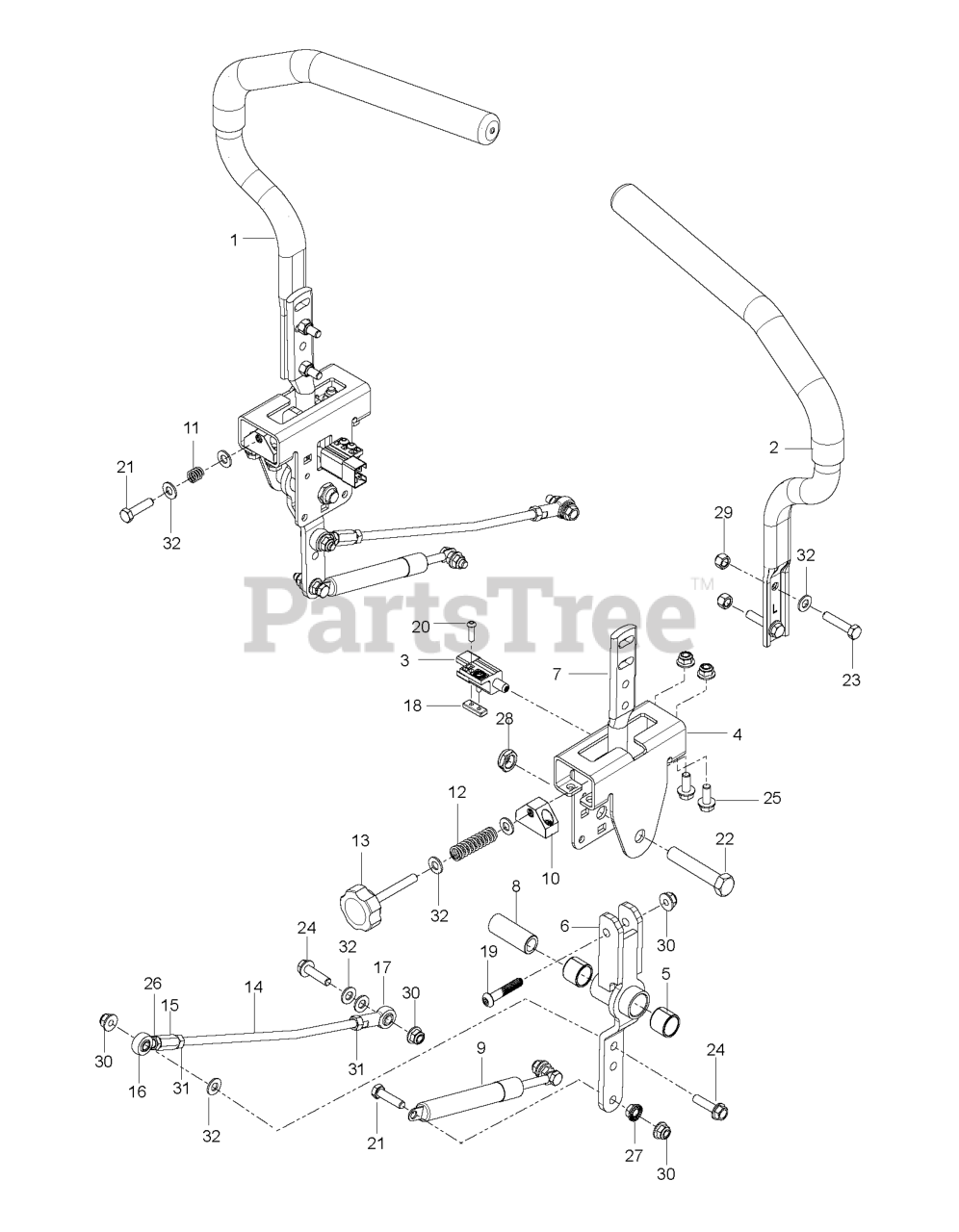

STEERING Parts Diagram

  • Title

1

RedMax 590090803

TUBE.LEVER.CONTROL.ZTR.RT.428

$36.99

$

Usually ships in 3-10 days

0

2

RedMax 590090804

TUBE.LEVER.CONTROL.ZTR.LT.428

$

$

Not available

3

RedMax 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

4

RedMax 585124705

BRACKET.CONTROLS.ZTR.X431
(Superseded to 585124702)

$

$

Not available

5

RedMax 532438282

BEARING.PT.750

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 587187701

CONTROL.WELDMENT.RZ

$20.99

$

In Stock, only 1 left!

0

7

RedMax 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$11.99

$

In Stock, Qty 20+

0

8

RedMax 584927201

SPACER.PIVOT.CONTROL

$5.99

$

In Stock, only 4 left!

0

9

RedMax 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

10

RedMax 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

11

RedMax 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

12

RedMax 576850301

SPRING COMPRESSION 2.0

$6.49

$

In Stock, Qty 9

0

13

RedMax 539131799

KNOB
(Superseded to 596400701)

$10.99

$

In Stock, Qty 17

0

14

RedMax 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

15

RedMax 539116689

ROD END COUPLER
(Superseded to 596718601)

$3.49

$

In Stock, only 2 left!

0

16

RedMax 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$10.99

$

In Stock, only 1 left!

0

17

RedMax 579764601

JOINT.HEIM.FEML.5/16.RH.THREAD

$9.49

$

Usually ships in 3-10 days

0

18

RedMax 581223001

PLATE NUT ZTR
(Superseded to 581223002)

$3.99

$

In Stock, only 4 left!

0

19

RedMax 576850402

SCREW 5/16-18 X 1 3/4 BTN-HD

$4.99

$

In Stock, only 2 left!

0

20

RedMax 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

21

RedMax 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

24

RedMax 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

26

RedMax 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

29

RedMax 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

31

RedMax 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
