CZT 52 (967671301-00) - RedMax 52" Zero-Turn Riding Mower (2017-09) PARKING BRAKE Parts Diagram

52" Zero-Turn Riding Mower

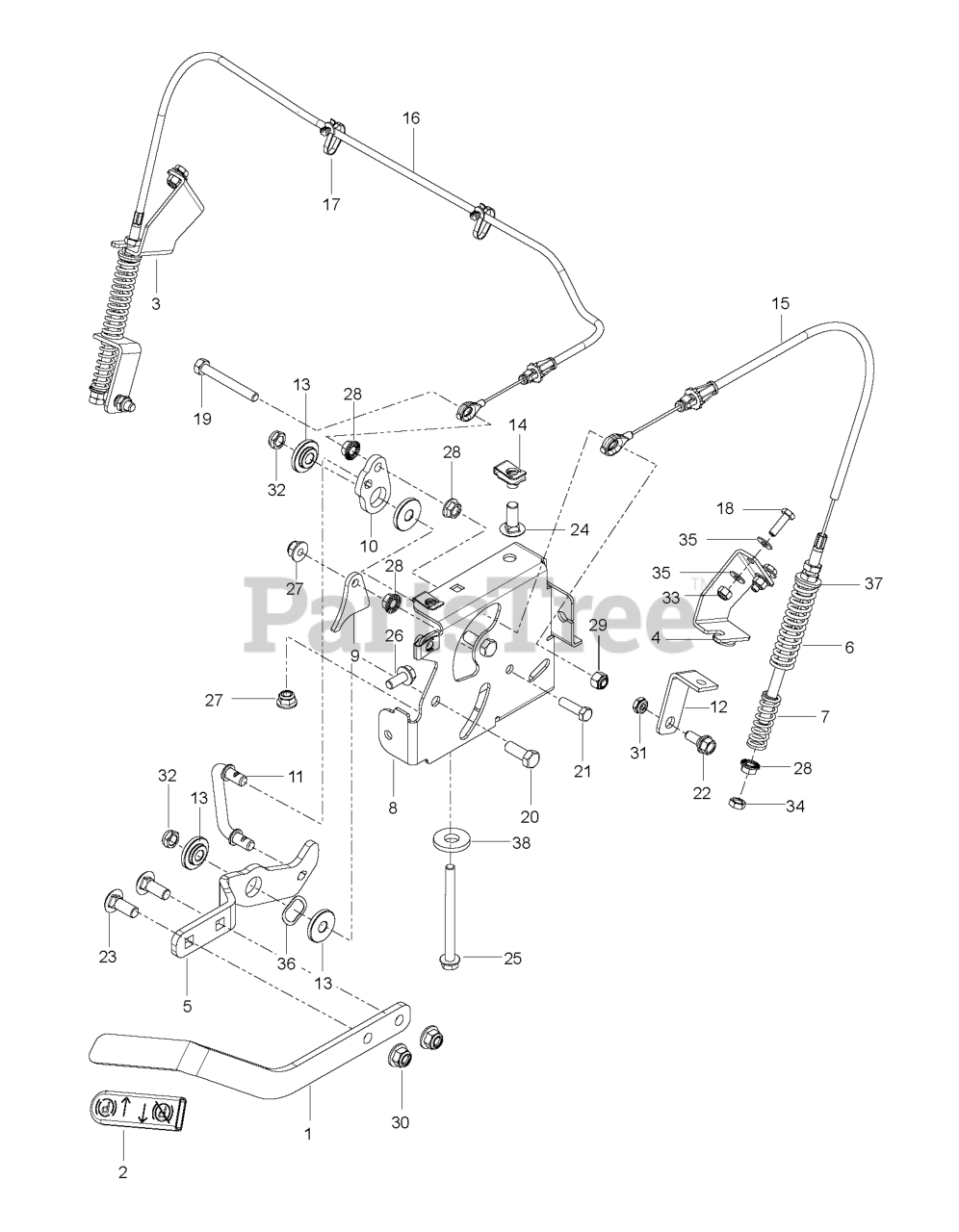

PARKING BRAKE Parts Diagram

  • Title

1

RedMax 539132151

ARM, BRAKE

$40.99

$

Usually ships in 3-10 days

0

2

RedMax 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

3

RedMax 575229602

BRKT, BRAKE RT, BLK

$36.99

$

Usually ships in 3-10 days

0

4

RedMax 575229702

BRKT, BRAKE LT, BLK

$45.99

$

Usually ships in 3-10 days

0

5

RedMax 586738802

LEVER.PNT.BRAKE.E-DIP
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

6

RedMax 575230201

SPRING, RETURN

$6.99

$

In Stock, only 2 left!

0

7

RedMax 575230301

SPRING, ENGAGEMENT

$6.49

$

In Stock, only 1 left!

0

8

RedMax 586830002

MOUNT.BRAKET.PNT.BLACK.MS431
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

9

RedMax 539132154

ACTUATOR, SWITCH
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

10

RedMax 539132153

BELLCRANK, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

11

RedMax 539132424

LINKAGE, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, only 4 left!

0

12

RedMax 575229802

BRKT, BRAKE, BLK

$34.99

$

Usually ships in 3-10 days

0

13

RedMax 539132161

BUSHING, BRAKE

$6.49

$

Usually ships in 3-10 days

0

14

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

15

RedMax 582121801

CABLE.ASSY.BRAKE.CABLE.SHORT

$13.99

$

Usually ships in 3-10 days

0

16

RedMax 582122001

CABLE.ASSY.BRAKE.CABLE.LONG
(Superseded to 539132174)

$

$

Not available

17

RedMax 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 539990643

HCS 1/4-20X7/8 GR5

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 539108396

HCS 5/16-18 X 2 1/2 TPBLT
(Superseded to 596437101)

$3.99

$

In Stock, only 2 left!

0

20

RedMax 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 11

0

21

RedMax 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, only 2 left!

0

22

RedMax 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

24

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

25

RedMax 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

31

RedMax 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

32

RedMax 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

33

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 539107897

NUT 5/16-18 HEX JAM ZD

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

36

RedMax 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

37

RedMax 539990122

WASHER 3/8 SAE FLAT

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

RedMax 532197802

SWITCH.INTRLCK.CLUTCH.

Note: NOT SHOWN

$18.99

$

In Stock, Qty 7

0
