CZT 52 (967671301-00) - RedMax 52" Zero-Turn Riding Mower (2017-09) MOWER DECK / CUTTING DECK Parts Diagram

52" Zero-Turn Riding Mower

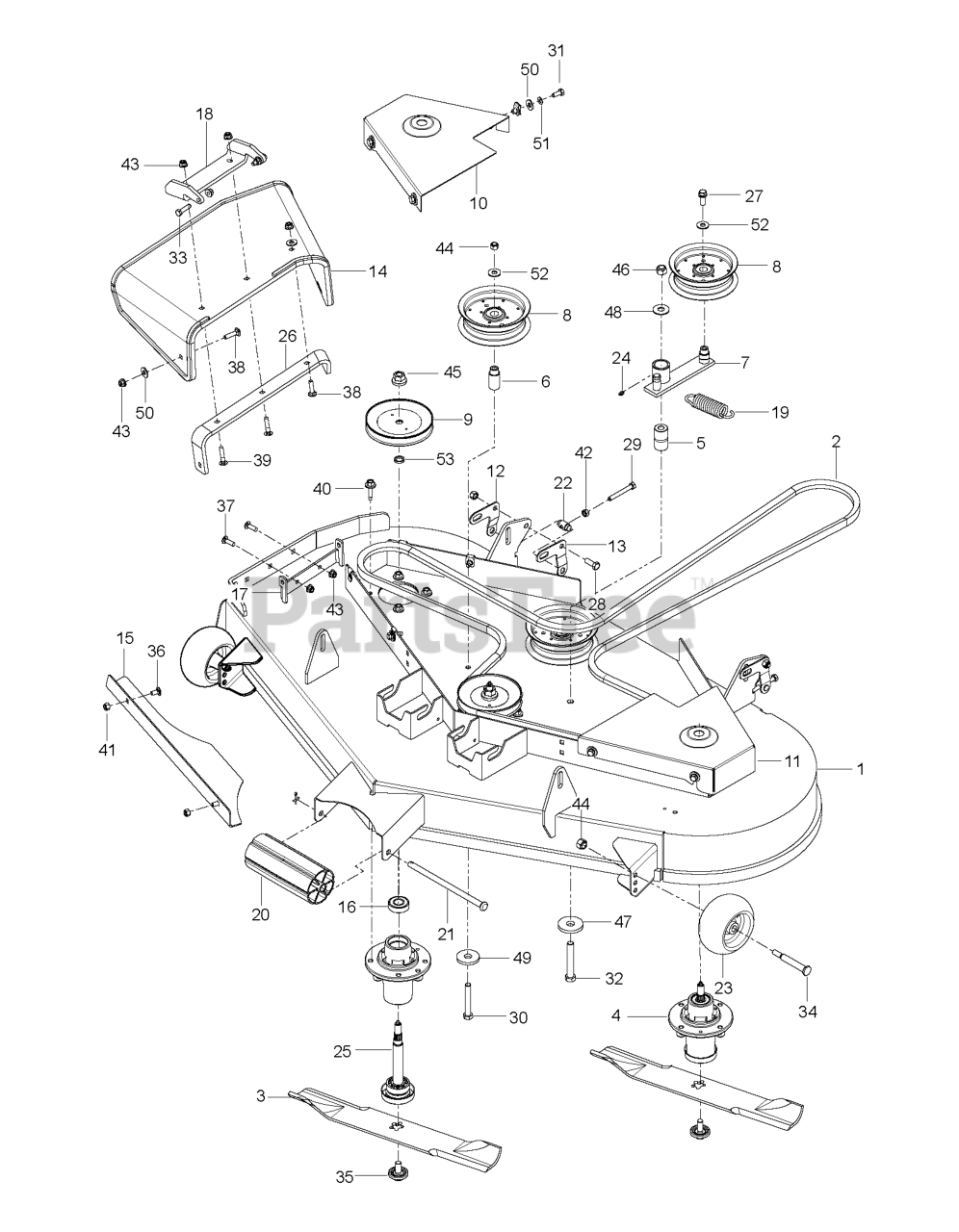

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

RedMax 581505304

DECK.SVC.52'W/DCLS.REDMAX.672

$1595.99

$

Usually ships in 3-10 days

0

2

RedMax 522811301

BELT, B, 148.5

$97.99

$

In Stock, only 2 left!

0

3

RedMax 539112079

BLADE, 18"

$26.99

$

In Stock, Qty 20+

0

4

RedMax 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

5

RedMax 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

6

RedMax 539112169

IDLER BUSHING
(Superseded to 596841501)

$9.49

$

In Stock, Qty 20+

0

7

RedMax 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

8

RedMax 539132728

PULLEY, IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

9

RedMax 532173436

PULLEY MANDREL

$17.99

$

In Stock, Qty 20+

0

10

RedMax 577260303

SHIELD BELT RH 52" SNAPPER RED

$31.99

$

Usually ships in 3-10 days

0

11

RedMax 577260403

SHIELD BELT LH 52" SNAPPER RED

$31.99

$

Usually ships in 3-10 days

0

12

RedMax 584859402

BRACKET.RT.PNT.MS431

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 584859404

BRACKET.LH.PNT.MS431

$4.99

$

In Stock, only 1 left!

0

14

RedMax 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

15

RedMax 539112417

CONFINEMENT PLATE, 52"
(Superseded to 593565002)

$31.99

$

Usually ships in 3-10 days

0

16

RedMax 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

17

RedMax 581606106

BRACKET MZT CHUTE SNAPPER RED

$17.99

$

Usually ships in 3-10 days

0

18

RedMax 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

19

RedMax 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

20

RedMax 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

21

RedMax 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

22

RedMax 539131859

TRUNION, PITCH
(Superseded to 596565501)

$12.99

$

In Stock, only 1 left!

0

23

RedMax 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 20+

0

24

RedMax 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

25

RedMax 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$28.99

$

In Stock, Qty 10

0

26

RedMax 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

27

RedMax 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 18

0

28

RedMax 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

29

RedMax 539108396

HCS 5/16-18 X 2 1/2 TPBLT
(Superseded to 596437101)

$3.99

$

In Stock, only 2 left!

0

30

RedMax 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

$3.99

$

In Stock, Qty 10

0

31

RedMax 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, only 2 left!

0

32

RedMax 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

35

RedMax 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

36

RedMax 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

37

RedMax 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 1 left!

0

38

RedMax 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

41

RedMax 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

42

RedMax 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

43

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

RedMax 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

45

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

46

RedMax 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

47

RedMax 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$10.99

$

In Stock, Qty 15

0

48

RedMax 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

49

RedMax 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 20+

0

50

RedMax 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

51

RedMax 539990187

WASHER 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 7

0

53

RedMax 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8
