CZT 52 (967671301-00) - RedMax 52" Zero-Turn Riding Mower (2017-09) ENGINE PLATE Parts Diagram

52" Zero-Turn Riding Mower

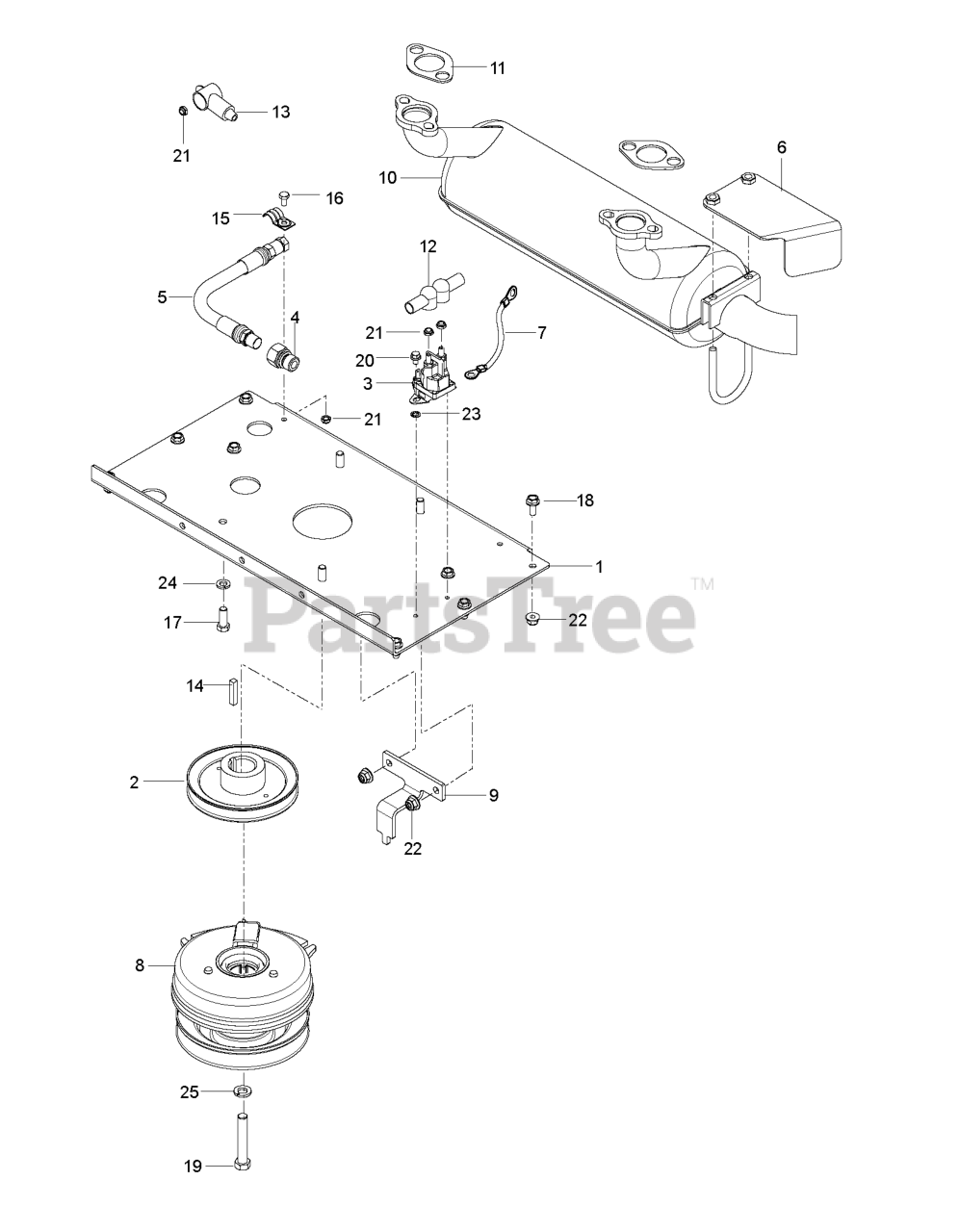

ENGINE PLATE Parts Diagram

  • Title
1

RedMax 586651402

PLATE.PNT.ENGINE.E-DIP

$37.99

$

Usually ships in 3-10 days

0

2

RedMax 574811001

PULLEY, V, 1.125 BORE

$53.99

$

Usually ships in 3-10 days

0

3

RedMax 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

4

RedMax 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599003)

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$31.99

$

In Stock, only 1 left!

0

6

RedMax 579150901

SHIELD MUFFLER

$21.99

$

Usually ships in 3-10 days

0

7

RedMax 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

8

RedMax 574607001

CLUTCH 200 FT LB

$484.99

$

In Stock, only 1 left!

0

9

RedMax 575017302

STOP, CLUTCH, BLACK

$14.99

$

Usually ships in 3-10 days

0

10

RedMax 525750201

MUFFLER.26HP.KAW.FX651V-730V

$227.99

$

Usually ships in 3-10 days

0

11

RedMax 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

$2.49

$

In Stock, Qty 20+

0

12

$44.99

$

Usually ships in 3-10 days

0

13

RedMax 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

14

RedMax 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

15

$3.99

$

In Stock, only 1 left!

0

16

RedMax 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 11

0

18

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

20

RedMax 539990302

HWST 1/4C X 3/8

$

$

Not available

21

RedMax 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

23

RedMax 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

24

RedMax 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

25

RedMax 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, Qty 20+

0
