CZT 48 x (967671601-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) PARKING BRAKE Parts Diagram

48" Zero-Turn Riding Mower

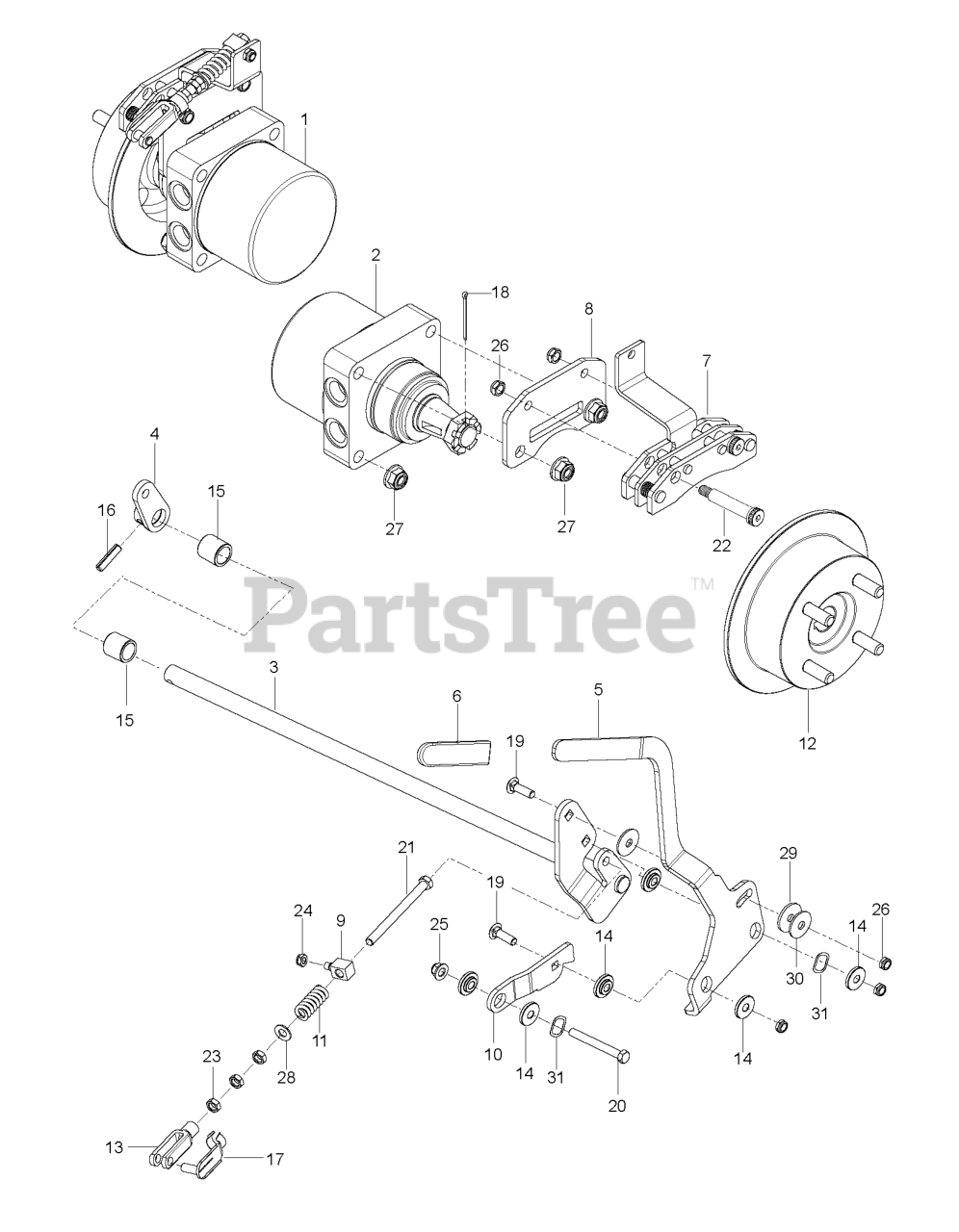

PARKING BRAKE Parts Diagram

  • Title

1

RedMax 575224601

MOTOR, TL0240, RT

$1253.99

$

Usually ships in 3-10 days

0

2

RedMax 539110823

TL15 WHEEL MOTOR

$1139.99

$

Usually ships in 3-10 days

0

3

RedMax 525851201

SHAFT, BRAKE WLDMT
(Superseded to 596521801)

$84.99

$

Usually ships in 3-10 days

0

4

RedMax 510025901

ARM, RT BRAKE

$157.99

$

Usually ships in 3-10 days

0

5

RedMax 515980002

LEVER.BRAKE.BLACK

$66.99

$

Usually ships in 3-10 days

0

6

RedMax 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

7

RedMax 539133047

CALIPER

$120.99

$

In Stock, only 2 left!

0

8

RedMax 525851601

PLATE, CALIPER

$21.99

$

Usually ships in 3-10 days

0

9

RedMax 525851401

SWIVEL, BRAKE
(Superseded to 525851402)

$5.99

$

Usually ships in 3-10 days

0

10

RedMax 515980301

LINK, FOLLOWER
(Superseded to 515980302)

$24.99

$

Usually ships in 3-10 days

0

11

RedMax 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

12

RedMax 525848701

HUB, DISC BRAKE, W/STUDS

$250.99

$

In Stock, only 1 left!

0

13

RedMax 539977465

YOKE-3/8-24 PLTD
(Superseded to 596739901)

$34.99

$

Usually ships in 3-10 days

0

14

RedMax 539132161

BUSHING, BRAKE

$6.49

$

In Stock, only 1 left!

0

15

RedMax 510089201

BUSHING, SLEEVE 3/4 X 1.0

$14.99

$

In Stock, only 4 left!

0

16

RedMax 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

17

RedMax 522705901

PIN, CLEVIS SPRING, 3/8
(Superseded to 596919501)

$7.49

$

In Stock, Qty 5

0

18

RedMax 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

19

RedMax 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 539923463

HCS 3/8-16 X 3-1/4 GR5 ZD
(Superseded to 596637501)

$2.49

$

Usually ships in 3-10 days

0

21

RedMax 539104984

HCS 3/8F X SPECIAL
(Superseded to 596438401)

$26.99

$

Usually ships in 3-10 days

0

22

RedMax 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$3.49

$

Usually ships in 3-10 days

0

25

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

26

RedMax 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

27

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

28

RedMax 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

29

RedMax 525490901

WASHER, FRICTION, 1/8

$7.99

$

Usually ships in 3-10 days

0

30

RedMax 539912063

CONE WASHER

$6.99

$

Usually ships in 3-10 days

0

31

RedMax 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0
