CZT 48 x (967671601-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) MOWER LIFT / DECK LIFT Parts Diagram

48" Zero-Turn Riding Mower

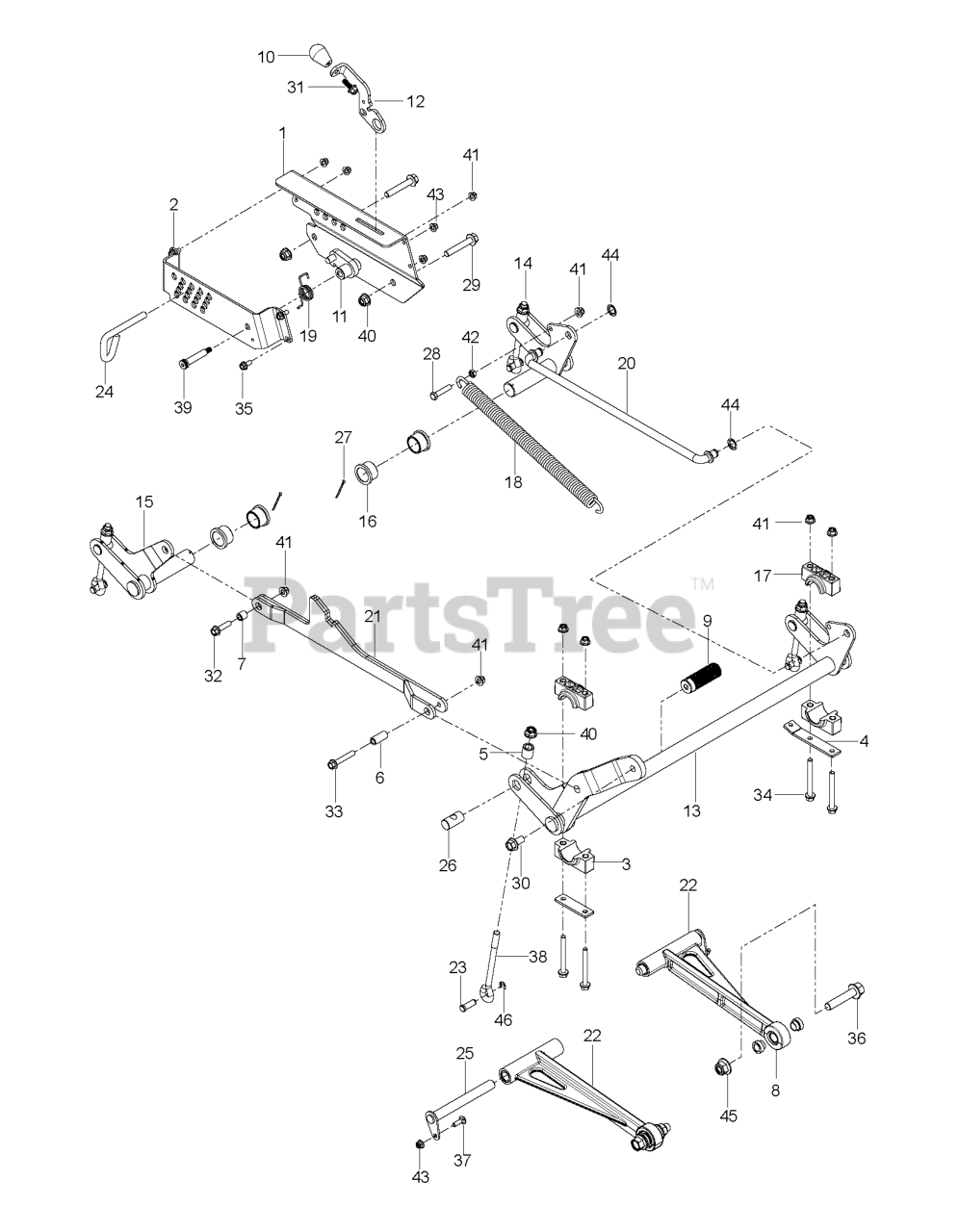

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
1

RedMax 576480003

PLATE HEIGHT SNAPPER RED X672

$43.99

$

Usually ships in 3-10 days

0

2

RedMax 576480103

PLATE HEIGHT SNAPPER RED X672

$31.99

$

Usually ships in 3-10 days

0

3

RedMax 525822201

PLATE, PILLOW BLACK

$21.99

$

Usually ships in 3-10 days

0

4

RedMax 576646701

PLATE, SPRING ANCHOR

$9.49

$

Usually ships in 3-10 days

0

5

RedMax 576485801

SPACER, EYEBOLT
(Superseded to 576485802)

$4.99

$

In Stock, only 3 left!

0

6

RedMax 576623101

SPACER, FRONT LIFT STRAP
(Superseded to 576623102)

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 576623001

SPACER, REAR LIFT STRAP
(Superseded to 576623002)

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 510362501

SPACER, STRUT

$7.49

$

Usually ships in 3-10 days

0

9

RedMax 510408301

PEDAL, DECK HEIGHT
(Superseded to 510408302)

$34.99

$

Usually ships in 3-10 days

0

10

RedMax 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

11

RedMax 510406801

LATCH, TRANSPORT WLDMT
(Superseded to 510406802)

$24.99

$

Usually ships in 3-10 days

0

12

RedMax 576638901

LEVER, TRANSPORT RELEASE

$22.99

$

Usually ships in 3-10 days

0

13

RedMax 576479201

SHAFT DECK LIFT FT
(Superseded to 583623801)

$250.99

$

Usually ships in 3-10 days

0

14

RedMax 576479901

SHAFT, LIFT LEFT REAR

$145.99

$

Usually ships in 3-10 days

0

15

RedMax 576479401

SHAFT, LIFT RIGHT REAR

$157.99

$

Usually ships in 3-10 days

0

16

RedMax 510089401

BUSHING, FLANGE 1.25 X 1.0

$20.99

$

Usually ships in 3-10 days

0

17

RedMax 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

18

RedMax 576676601

SPRING, EXTENSION

$30.99

$

Usually ships in 3-10 days

0

19

RedMax 510376601

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

20

RedMax 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

21

RedMax 576622601

WELDMT, DECK STRAP
(Superseded to 576622602)

$363.99

$

Usually ships in 3-10 days

0

22

RedMax 510106501

ASSEMBLY, STRUT

$121.99

$

Usually ships in 3-10 days

0

23

RedMax 510090101

PIN, 7/16 CLEVIS
(Superseded to 596919401)

$5.99

$

In Stock, only 2 left!

0

24

RedMax 510016501

PIN, HEIGHT

$14.99

$

Usually ships in 3-10 days

0

25

RedMax 515988201

PIN, STRUT

$24.99

$

Usually ships in 3-10 days

0

26

RedMax 576485601

PIN, TRUNION, EYEBOLT
(Superseded to 576485602)

$6.49

$

Usually ships in 3-10 days

0

27

RedMax 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

28

RedMax 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 874490848

HFFS 1/2-13 X 3 GD 5 ZD

$1.99

$

Usually ships in 3-10 days

0

30

RedMax 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

31

RedMax 525612801

HHFS 3/8-16 X 1 GRD 5 ZD
(Superseded to 525612802)

$3.99

$

In Stock, Qty 5

0

32

RedMax 576621601

HHFS 3/8-16 X 1.50 GR5 ZD
(Superseded to 576621602)

$2.49

$

Usually ships in 3-10 days

0

33

RedMax 874490636

HHFS 3/8-16 X 2-1/4 GR 5 ZD

$1.99

$

Usually ships in 3-10 days

0

34

RedMax 874490652

HHFS 3/8-16 X 3.5 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 874451048

HHFS 5/8-11 X 3.0 GD 8 ZD

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 576479001

EYEBOLT, DECK LIFT
(Superseded to 576479002)

$7.49

$

Usually ships in 3-10 days

0

39

RedMax 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

41

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

42

RedMax 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

43

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

44

RedMax 539109304

NUT 5/8 PUSH
(Superseded to 532429164)

$6.49

$

In Stock, only 2 left!

0

45

RedMax 525829101

NUT 5/8-11 FLG NYLOC ZD
(Superseded to 525829102)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 522705201

RING, E, 7/16

$4.99

$

In Stock, only 1 left!

0
