CZT 2650 (7800382) - Simplicity Axion 50" Zero-Turn Mower, 26hp 50" Mower Deck - Housing & Arbor Group Parts Diagram

Axion 50" Zero-Turn Mower, 26hp

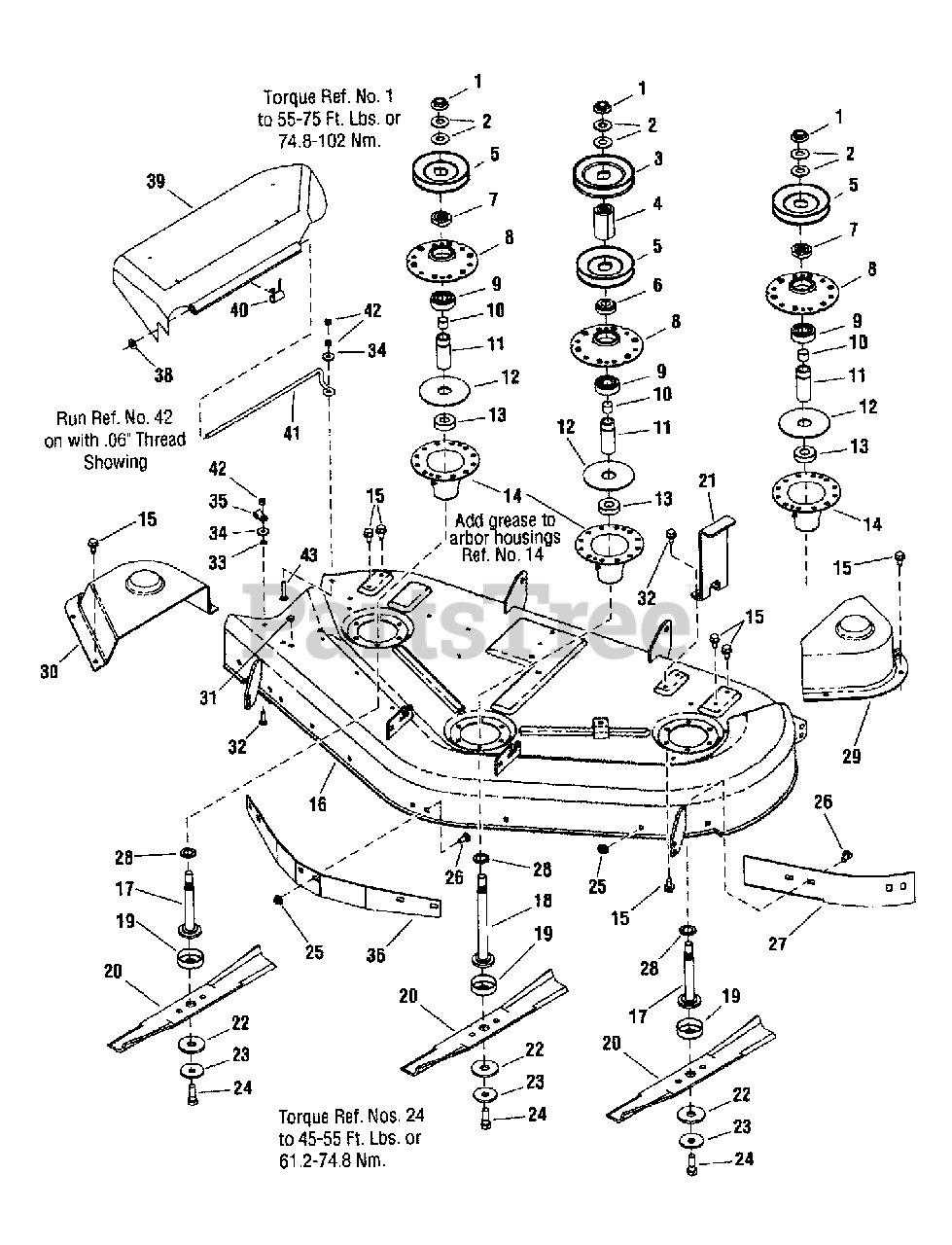

50" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, 9/16-18 Hex Flange (non-locking)

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1732951SM

PULLEY, Deep Groove, 4.6

$19.99

$

In Stock, Qty 20+

0

4

Simplicity 1713158SM

HUB, Double Pulley

$18.99

$

In Stock, Qty 20+

0

5

Simplicity 1713098SM

PULLEY

$19.99

$

In Stock, Qty 20+

0

6

Simplicity 1713533SM

HUB, Double Pulley

$9.99

$

In Stock, Qty 20+

0

7

Simplicity 1713197SM

HUB, Pulley, Center & R.H.

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1655729ASM

HOUSING, Arbor Top

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 7013313SM

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

10

Simplicity 1715724SM

SPACER, Bearing Sleeve

$9.49

$

In Stock, Qty 20+

0

11

Simplicity 1732544SM

SPACER, Powdered Metal

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 1707335SM

GASKET, Foam Poly

$5.99

$

In Stock, Qty 20+

0

13

Simplicity 1705897SM

BALL BEARING, 11/16 x 1-9/16 x 15/32 Long

$8.49

$

In Stock, Qty 20+

0

14

Simplicity 1713338ASM

HOUSING, Arbor Bottom w/Lube Fitting

Note: includes 1704314 Lube Fitting

$41.99

$

In Stock, Qty 20+

0

15

Simplicity 7090361SM

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap

$

$

Not available

16

Simplicity 1733347CSM

WELDMENT, 50" Mower Housing (orange)
(Superseded to 1687768YP)

$1401.99

$

Usually ships in 2-12 days

0

17

Simplicity 1713195SM

SHAFT, Arbor Short

$31.99

$

In Stock, Qty 8

0

18

Simplicity 1713612SM

SHAFT, Arbor Long

$

$

Not available

19

Simplicity 1713196SM

SHIELD, Grass Lower Arbor Heat Treated

$9.49

$

In Stock, Qty 20+

0

20

Simplicity 1726453SM

BLADE, Mower, 50" Deck
(Superseded to 1726453YP)

$24.99

$

In Stock, Qty 20+

0

21

Simplicity 1733308ASM

UPSTOP

$30.99

$

Usually ships in 2-12 days

0

22

Simplicity 1713089SM

WASHER, 11/16 x 2" Hex

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

24

Simplicity 2823471SM

SCREW, 7/16-14 x 1-1/4" Hex Head Cap, GR8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1927557SM

NUT, 5/16-18 Hex Flange Lock Large Black

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 1931333SM

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

27

Simplicity 1724538ASM

BAFFLE, Anti-Blowout

$45.99

$

In Stock, only 1 left!

0

28

Simplicity 1713619SM

WASHER, Cup

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1729666SM

COVER, Arbor

$43.99

$

In Stock, only 1 left!

0

30

Simplicity 1715673SM

COVER, Arbor

$38.99

$

In Stock, only 1 left!

0

31

Simplicity 1705115SM

PLUG, Hole (for.344 Square Hole)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1931318SM

BOLT, 1/4-20 x 7/8" Round Head Square Neck, GR5

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1960518SM

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1960353SM

WASHER, Large (1/4 I.D. x 5/8 O.D. x .134/.109 Thick)
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

35

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1734181ASM

BAFFLE, Front 44 & 50" Decks

$43.99

$

Usually ships in 2-12 days

0

38

Simplicity 1919326SM

WASHER, 5/16"

$4.49

$

In Stock, Qty 6

0

39

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 1 left!

0

40

Simplicity 7101082SM

SPRING, Torsion Chute 44" & 50" Decks
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

41

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

42

Simplicity 1920397SM

NUT, 1/4" Hex Lock Esna Light
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 1960633SM

BOLT, 1/4-20 x 1-1/2" Round Head Square Neck, GR5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0
