CZT 2142 (7800381) - Simplicity Axion 42" Zero-Turn Mower, 21hp Lift Group - 42" Deck Parts Diagram

Axion 42" Zero-Turn Mower, 21hp

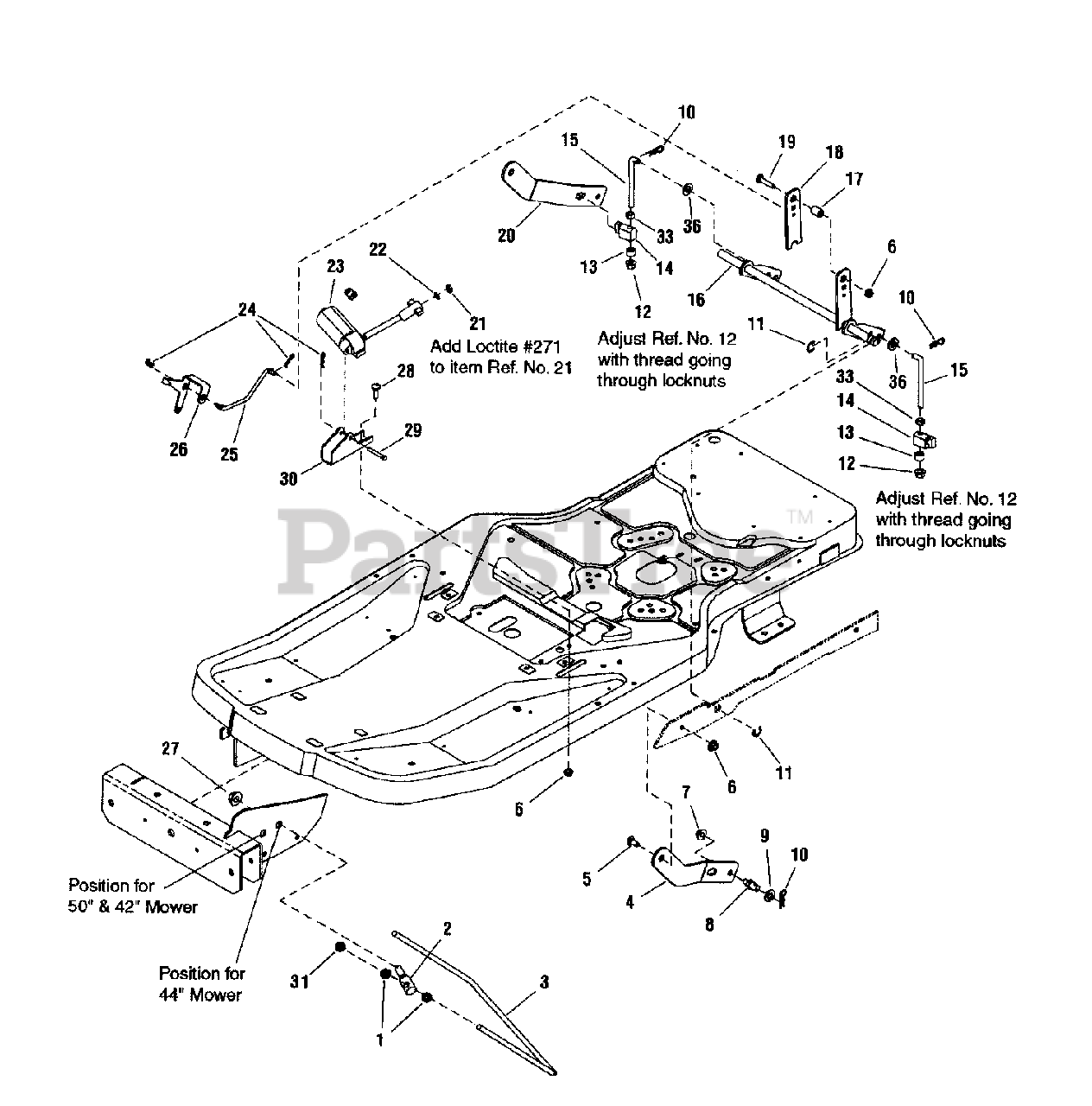

Lift Group - 42" Deck Parts Diagram

  • Title

1

Simplicity 1922007SM

NUT, 7/16-14 Hex Jam

$7.99

$

Usually ships in 2-12 days

0

2

Simplicity 1734042SM

TRUNNION, 1/2-13 Thread

$17.99

$

Usually ships in 2-12 days

0

3

Simplicity 1733381SM

ROD, Bail (7/16-14 Thread, 2 Places)

$46.99

$

In Stock, only 1 left!

0

4

Simplicity 1733535ASM

ARM, Mower Lift L.H.

$

$

Not available

5

Simplicity 009X67MA

SHOULDER BOLT, 5/16-18

$5.49

$

In Stock, only 3 left!

0

6

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Simplicity 1960251SM

NUT, 3/8-16 Hex Center Lock Jam
(Superseded to 703230)

$4.99

$

In Stock, Qty 12

0

8

Simplicity 094067MA

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

9

Simplicity 1960170SM

WASHER, 1/2" Flat (0.51 I.D. x 1.00 O.D. x .10 Thick)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1960074SM

CLIP, Hair Pin .093 Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1704420SM

RING, External (Klipring) for .625 Dia. Shaft

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960687SM

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1666294SM

SPACER, .385 I.D. x .6697 O.D. x .455 Long, Powdered Metal

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1731894SM

TRUNNION, Powdered Metal

$9.99

$

In Stock, Qty 7

0

15

Simplicity 1734217SM

ROD, Mower Lift, 3/8-16 Thread

$14.99

$

In Stock, Qty 6

0

16

Simplicity 1733356ASM

WELDMENT, Lift Shaft

$112.99

$

Usually ships in 2-12 days

0

17

Simplicity 1673796SM

SPACER, .328 I.D. x .625 O.D. x .781 Long (Powdered metal)

$24.99

$

Usually ships in 2-12 days

0

18

Simplicity 1734336ASM

ARM, Lift Trunnion

$62.99

$

Usually ships in 2-12 days

0

19

Simplicity 1931337SM

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

20

Simplicity 1733536ASM

ARM, Mower Lift R.H.
(Superseded to 1733536BMYP)

$86.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960757SM

NUT, 1/4-20 Hex, L.H. Thread

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 1921319SM

WASHER, 1/4" Flat (.27 I.D. x .62 O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1733513SM

MOTOR, Mini-Actuator (Electric)
(Superseded to 7600123YP)

$159.99

$

Usually ships in 2-12 days

0

24

Simplicity 1722460SM

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

25

Simplicity 1733572SM

ROD, Height-of-Cut Indicator

$11.99

$

In Stock, only 1 left!

0

26

Simplicity 1733454SM

INDICATOR, Height-of-Cut

$19.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930644SM

NUT, HEX FLANGE 1/2-13 Hex Flange Two Way Lock

$3.49

$

In Stock, Qty 6

0

28

Simplicity 1931335SM

BOLT, 5/16-18 x 1" Round Head Short Square Neck, GR5
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

29

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1733533ASM

BRACKET, Electric Motor Mount
(Superseded to 1733533BMYP)

$9.99

$

Usually ships in 2-12 days

0

31

Simplicity 1918213SM

NUT, 7/16-14 Hex

$4.99

$

In Stock, only 2 left!

0

33

Simplicity 1916950SM

NUT, HEX 3/8-16 Hex
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1924940SM

WASHER, .375 Flat (.41 I.D. x .87 O.D.)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
