CZT 19481 KWV (7800019) - Snapper 48" Zero-Turn Mower, 19hp LIFT SYSTEM ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

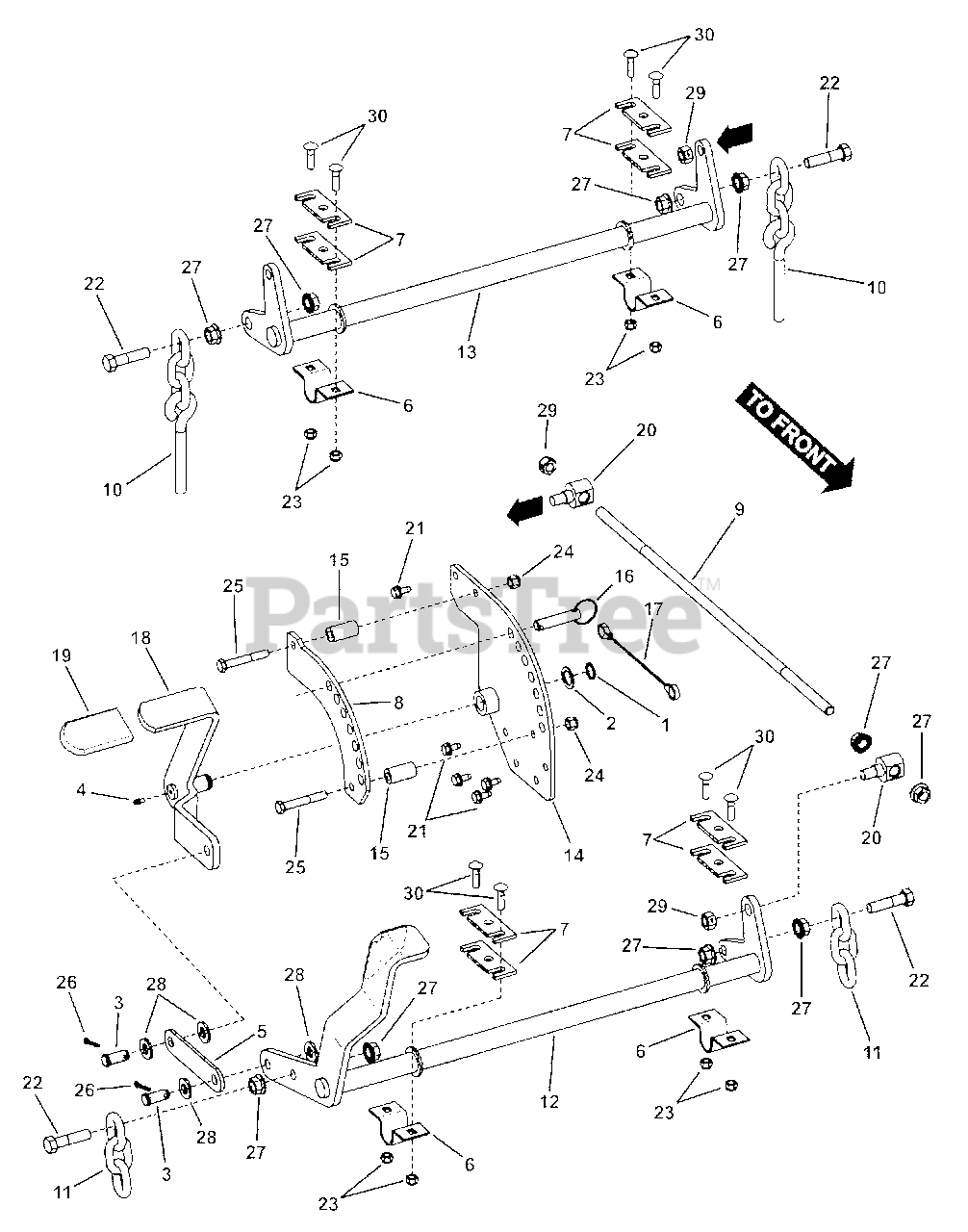

LIFT SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Snapper 7010746

RING, 3/4" External Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 19

0

2

Snapper 7010935

WASHER, .77 I.D. Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7012802

PIN, 1/2 x 1-1/8" Clevis
(Superseded to 7012802SM)

$5.99

$

In Stock, only 2 left!

0

4

Snapper 7014669

LUBE FITTING, 3/16"
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7043200

LINK, Lift
(Superseded to 7043200YP)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 7043803

BRACKET, Deck Support
(Superseded to 7043803YP)

$9.49

$

Usually ships in 2-12 days

0

7

Snapper 7044870

SHIM PLATE
(Superseded to 7044870YP)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7045115

PLATE, Height Support
(Superseded to 7045115YP)

$50.99

$

Usually ships in 2-12 days

0

9

Snapper 7046156

TIE ROD, Lift (1/2-13 thread)

$

$

Not available

10

Snapper 7053562

ASSY, Chain and Eyebolt

$

$

Not available

11

Snapper 7059173

CHAIN LINKS

$

$

Not available

12

Snapper 7072731

WELDMENT, Deck Lift Front
(Superseded to 7072731YP)

$216.99

$

Usually ships in 2-12 days

0

13

Snapper 7072909

WELDMENT, Deck Lift Rear
(Superseded to 7072909YP)

$136.99

$

Usually ships in 2-12 days

0

14

Snapper 7073429

WELDMENT, Deck Handle Support
(Superseded to 7073429YP)

$131.99

$

Usually ships in 2-12 days

0

15

Snapper 7074580

SPACER, Lift Adjuster
(Superseded to 7074580YP)

$50.99

$

Usually ships in 2-12 days

0

16

Snapper 7074716

CLIP, 1/2" Roll Pin

$

$

Not available

17

Snapper 7075086

TETHER STRAP
(Superseded to 7075086YP)

$9.49

$

In Stock, only 1 left!

0

18

Snapper 7075320

WELDMENT, Lift Arm
(Superseded to 7075320YP)

$136.99

$

Usually ships in 2-12 days

0

19

Snapper 7075330

GRIP (Plastic Cover)
(Superseded to 7075330SM)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper 7075782

SWIVEL, Rod (1/2-13 thread)

Note: or 44858

$

$

Not available

21

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

22

Snapper 7090543

SCREW, 1/2-13 x 2" Hex Head Cap, GR 5
(Superseded to 703817)

$5.99

$

Usually ships in 2-12 days

0

23

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

26

Snapper 7091516

COTTER PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0

27

Snapper 7091544

NUT, 1/2-13 Hex Flange Lock, GR 5
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7091587

WASHER, .531 I.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

29

Snapper 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

30

Snapper 7091928

BOLT, 5/16-18 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0
