CZT 19481 KWV (7800019) - Snapper 48" Zero-Turn Mower, 19hp FUEL TANK ASSEMBLY, RH (Series 0) Parts Diagram

48" Zero-Turn Mower, 19hp

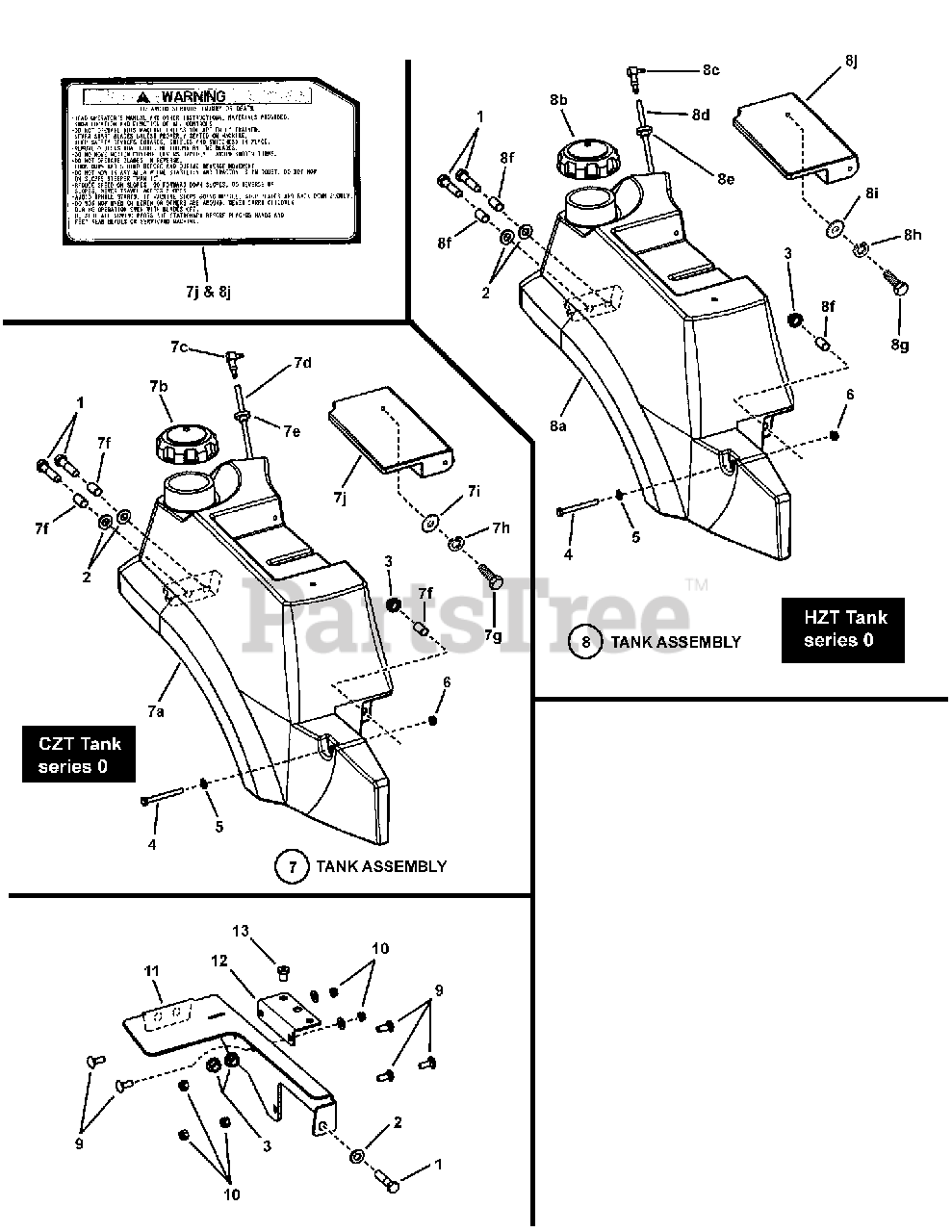

FUEL TANK ASSEMBLY, RH (Series 0) Parts Diagram

  • Title

1

Snapper 7092089

SCREW, 7/16-14 x 2" Hex Head Cap, GR 5
(Superseded to 7092089YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7090250

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

3

Snapper 5025125

NUT, 7/16-14 HEX NYLON LOCK
(Superseded to 5025125YP)

$3.49

$

In Stock, Qty 12

0

4

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7050444

ASSEMBLY, R.H. Tank CZT (incl. 10 items shown below)
(Superseded to 7100214YP)

$569.99

$

Usually ships in 2-12 days

0

7a

Snapper 7042925

FUEL TANK, RH

Note: (SNAPPER PRO printed on tank)

$

$

Currently unavailable

7b

Snapper 7075135

CAP, Fuel, 3-1/2"
(Superseded to 5101651SM)

Note: Kelch part no. 201906

$30.99

$

In Stock, Qty 20+

0

7c

Snapper 7074835

ELBOW, 90-degree
(Superseded to 7074835YP)

Note: Dapco part no. 11942

$14.99

$

Usually ships in 2-12 days

0

7d

Snapper 7046804

DIP TUBE, .261 I.D. x 24-1/4"
(Superseded to 7046326YP)

$31.99

$

Usually ships in 2-12 days

0

7e

Snapper 7012337

GROMMET, Dip Tube
(Superseded to 1654930SM)

Note: Dapco part no. 10672

$7.99

$

In Stock, Qty 20+

0

7f

SPACER

$

$

Not available

7g

Snapper 7090825

SCREW, 1/4-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

7h

Snapper 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

7i

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

7j

Snapper 7046324

LID, Fuel Tank
(Superseded to 7046324YP)

Note: NOTE: Warning text is printed on part.

$61.99

$

Usually ships in 2-12 days

0

8

Snapper 7050446

ASSEMBLY, R. H. Tank HZT (incl. 10 items shown below)
(Superseded to 7100216YP)

$569.99

$

Usually ships in 2-12 days

0

8a

Snapper 7078036

FUEL TANK, RH
(Superseded to 7100216YP)

Note: (SNAPPER printed on tank)

$569.99

$

Usually ships in 2-12 days

0

8b

Snapper 7075135

CAP, Fuel, 3-1/2"
(Superseded to 5101651SM)

Note: Kelch part no. 201906

$30.99

$

In Stock, Qty 20+

0

8c

Snapper 7074835

ELBOW, 90-degree
(Superseded to 7074835YP)

Note: Dapco part no. 11942

$14.99

$

Usually ships in 2-12 days

0

8d

Snapper 7046804

DIP TUBE, .261 I.D. x 24-1/4"
(Superseded to 7046326YP)

$31.99

$

Usually ships in 2-12 days

0

8e

Snapper 7012337

GROMMET, Dip Tube
(Superseded to 1654930SM)

Note: Dapco part no. 10672

$7.99

$

In Stock, Qty 20+

0

8f

SPACER

$

$

Not available

8g

Snapper 7090825

SCREW, 1/4-20 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

8h

Snapper 7027223

WASHER, 1/4" Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

8i

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

8j

Snapper 7046324

LID, Fuel Tank
(Superseded to 7046324YP)

Note: NOTE: Warning text is printed on part.

$61.99

$

Usually ships in 2-12 days

0

9

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

10

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7053518

WELDMENT, R.H. Tank Bracket
(Superseded to 7053518YP)

$153.99

$

Usually ships in 2-12 days

0

12

Snapper 7074687

BRACKET, Auxiliary Fuel Valve
(Superseded to 7074687YP)

$13.99

$

Usually ships in 2-12 days

0

13

Snapper 7091909

WELL-NUT, 1/4-20 x 53/64
(Superseded to 7091909YP)

$3.99

$

Usually ships in 2-12 days

0
