CZT 19481 KWV (7800019) - Snapper 48" Zero-Turn Mower, 19hp FUEL TANK ASSEMBLY, LH Parts Diagram

48" Zero-Turn Mower, 19hp

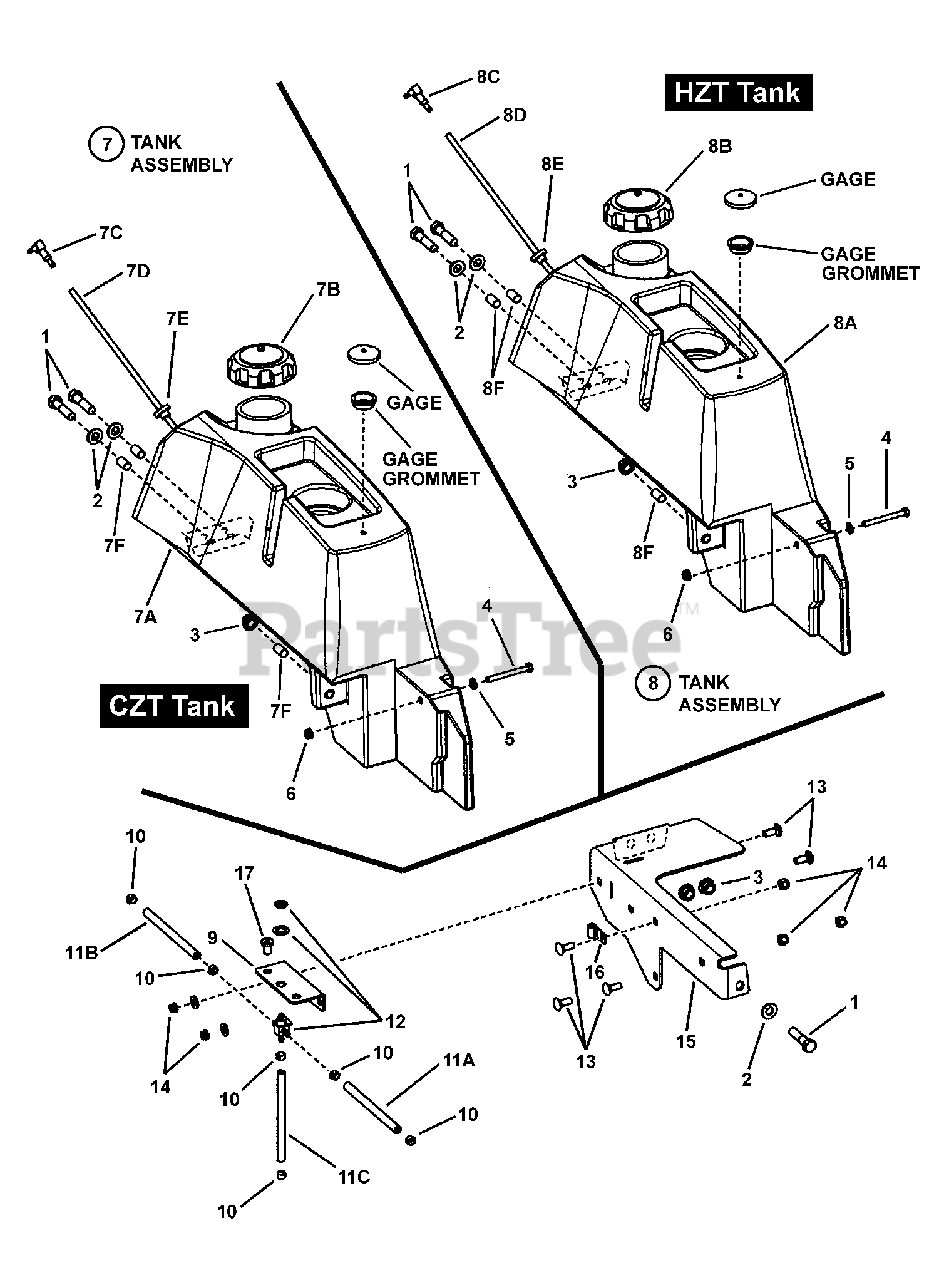

FUEL TANK ASSEMBLY, LH Parts Diagram

  • Title

1

Snapper 7092089

SCREW, 7/16-14 x 2" Hex Head Cap, GR 5
(Superseded to 7092089YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7090250

WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

3

Snapper 5025125

NUT, 7/16-14 HEX NYLON LOCK
(Superseded to 5025125YP)

$3.49

$

In Stock, Qty 12

0

4

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

6

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7050443

ASSEMBLY, L.H. Tank CZT (incl. 6 items shown below)

$

$

Not available

7A

Snapper 7042924

FUEL TANK, LH

Note: (SNAPPER PRO printed on tank)

$

$

Currently unavailable

7B

Snapper 7075135

CAP, Fuel, 3-1/2"
(Superseded to 5101651SM)

Note: Kelch part no. 201906

$30.99

$

In Stock, Qty 20+

0

7C

Snapper 7074835

ELBOW, 90-degree
(Superseded to 7074835YP)

Note: Dapco part no. 11942

$14.99

$

Usually ships in 2-12 days

0

7D

Snapper 7046804

DIP TUBE, .261 I.D. x 24-1/4"
(Superseded to 7046326YP)

$31.99

$

Usually ships in 2-12 days

0

7E

Snapper 7012337

GROMMET, Dip Tube
(Superseded to 1654930SM)

Note: Dapco part no. 10672

$7.99

$

In Stock, Qty 20+

0

7F

SPACER

$

$

Not available

8

Snapper 7050445

ASSEMBLY, L. H. Tank HZT (incl. 6 items shown below)
(Superseded to 7050445YP)

$336.99

$

Usually ships in 2-12 days

0

8A

Snapper 7078035

FUEL TANK, LH

Note: (SNAPPER printed on tank)

$

$

Currently unavailable

8B

Snapper 7075135

CAP, Fuel, 3-1/2"
(Superseded to 5101651SM)

Note: Kelch part no. 201906

$30.99

$

In Stock, Qty 20+

0

8C

Snapper 7074835

ELBOW, 90-degree
(Superseded to 7074835YP)

Note: Dapco part no. 11942

$14.99

$

Usually ships in 2-12 days

0

8D

Snapper 7046804

DIP TUBE, .261 I.D. x 24-1/4"
(Superseded to 7046326YP)

$31.99

$

Usually ships in 2-12 days

0

8E

Snapper 7012337

GROMMET, Dip Tube
(Superseded to 1654930SM)

Note: Dapco part no. 10672

$7.99

$

In Stock, Qty 20+

0

8F

SPACER

$

$

Not available

9

Snapper 7074687

BRACKET, Auxiliary Fuel Valve
(Superseded to 7074687YP)

$13.99

$

Usually ships in 2-12 days

0

10

Snapper 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

11A

Snapper 7078221

FUEL HOSE, 1/4" I. D. x 49" (RH)
(Superseded to 7078221YP)

$13.99

$

Usually ships in 2-12 days

0

11B

Snapper 7033693

FUEL HOSE, 1/4" I.D. x 17" long

$

$

Currently unavailable

11C

Snapper 7074690

FUEL HOSE, 1/4" I.D. x 1' Long
(Superseded to 7074690YP)

$6.49

$

Usually ships in 2-12 days

0

12

Snapper 7044681

ASSEMBLY, 3-Way Fuel Valve
(Superseded to 7044681YP)

$50.99

$

In Stock, only 3 left!

0

13

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

14

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7053476

WELDMENT, L.H. Tank Bracket
(Superseded to 7053476YP)

$125.99

$

Usually ships in 2-12 days

0

16

Snapper 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7091909

WELL-NUT, 1/4-20 x 53/64
(Superseded to 7091909YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

Note: not shown

$4.99

$

Usually ships in 2-12 days

0
