CZT 19481 KWV (7800019) - Snapper 48" Zero-Turn Mower, 19hp CONTROL PANEL ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

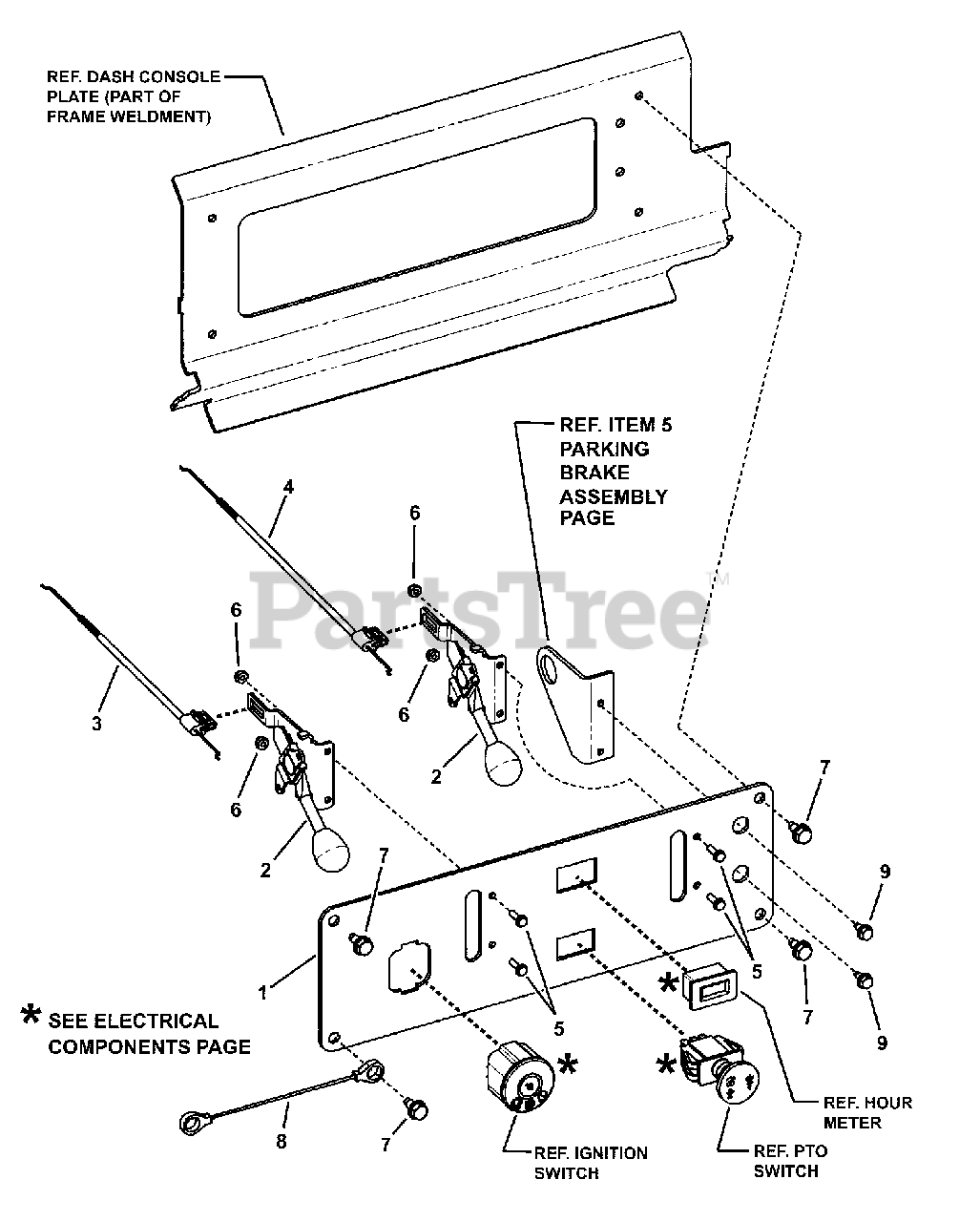

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Snapper 7043390

DASH CONSOLE, Black
(Superseded to 7043390YP)

$43.99

$

Usually ships in 2-12 days

0

2

Snapper 7074801

CONTROL LEVER, Throttle/Choke
(Superseded to 7074801YP)

$56.99

$

In Stock, only 2 left!

0

3

Snapper 7074804

CONTROL CABLE, Throttle (53.99" long)
(Superseded to 7074804YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper 7078143

CHOKE CABLE, Briggs, HZT (58.49" long)
(Superseded to 7078143YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7075046

CONTROL CABLE, Choke (Kawasaki)(53.49" long)
(Superseded to 7075046YP)

$31.99

$

In Stock, only 3 left!

0

5

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Self-Tap
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

8

Snapper 7075086

TETHER STRAP
(Superseded to 7075086YP)

Note: also shown on Lift System Assembly Page

$9.49

$

In Stock, only 1 left!

0

9

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539 (also shown on Parking Brake Assembly Page)

$3.99

$

In Stock, only 1 left!

0
