CZT 19480 KWV (85672) - Snapper 48" Zero-Turn Mower, 19hp SEAT ASSEMBLY (Milsco) Parts Diagram

48" Zero-Turn Mower, 19hp

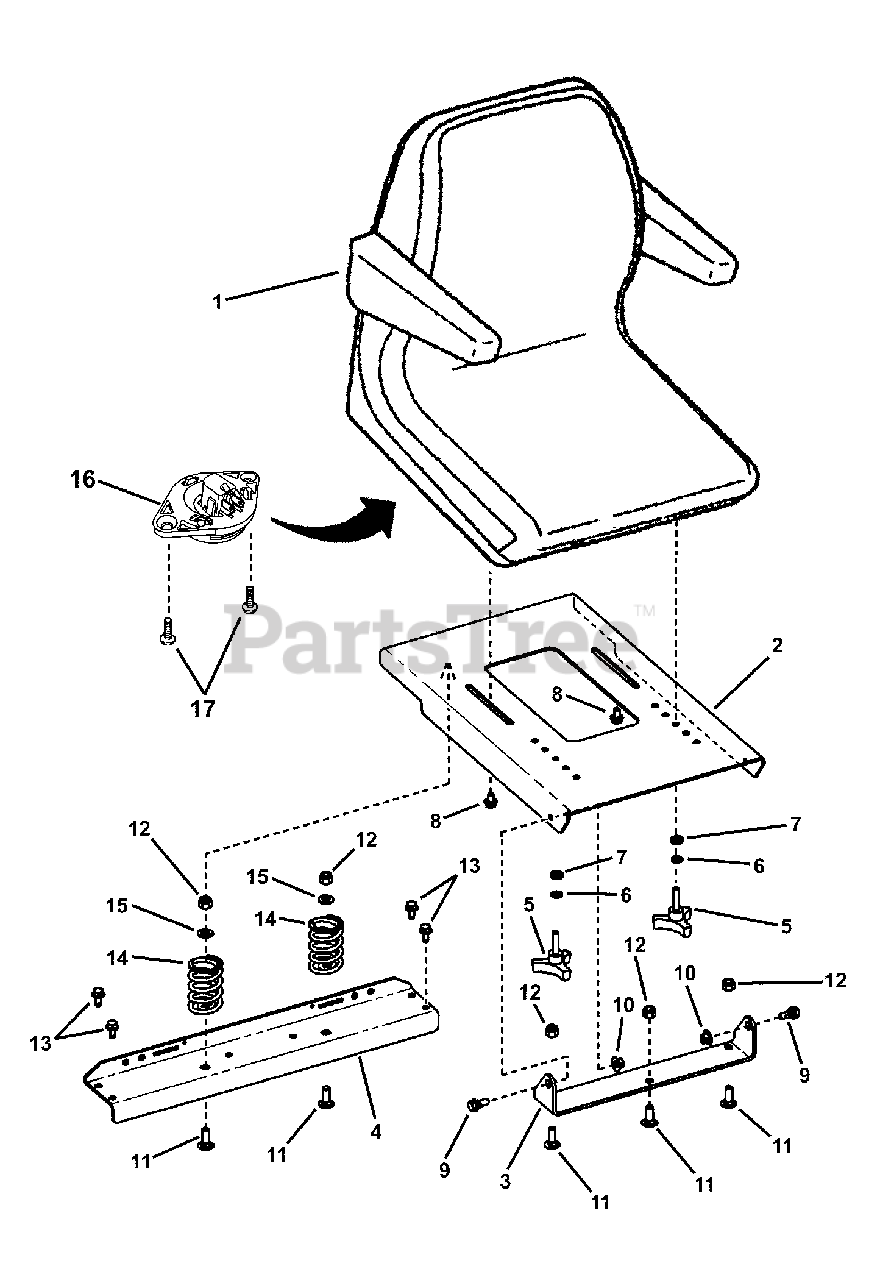

SEAT ASSEMBLY (Milsco) Parts Diagram

  • Title
1

Snapper 7071841

* SEAT (Milsco) w/ Urban Gray Vinyl
(Superseded to 7071841YP)

Note: (Milsco # 06632A) used on CZT19480KWV

$552.99

$

Usually ships in 2-12 days

0

2

Snapper 7046303

SEAT PLATE
(Superseded to 7046303YP)

$108.99

$

Usually ships in 2-12 days

0

3

Snapper 7046269

PIVOT BRACKET, Seat Hinge
(Superseded to 7046269YP)

$38.99

$

Usually ships in 2-12 days

0

4

Snapper 7045149

CROSS PLATE
(Superseded to 7045149YP)

$45.99

$

Usually ships in 2-12 days

0

5

Snapper 7023191

KNOB, Three Prong (5/16-18)
(Superseded to 7023191SM)

$6.99

$

In Stock, only 2 left!

0

6

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7013849

SPACER, .33 x .63 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7091038

SCREW, 5/16-18 x 1/2" Hex Washer Machine
(Superseded to 7091038YP)

Note: w/Nyloc Patch

$4.49

$

In Stock, Qty 9

0

9

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

10

Snapper 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

11

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

14

Snapper 7074218

SPRING, Compression- Seat Support
(Superseded to 7074218SM)

$

$

Not available

15

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 1716368

ASSEMBLY, Seat Switch (NC)
(Superseded to 5100540)

Note: (includes switch p/n 17590)

$32.99

$

In Stock, only 1 left!

0

17

Snapper 1960536

SCREW, HEX WSHR HD PLAST .250 X .500 BLK
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0
