CZT 19480 KWV (85672) - Snapper 48" Zero-Turn Mower, 19hp PARKING BRAKE ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

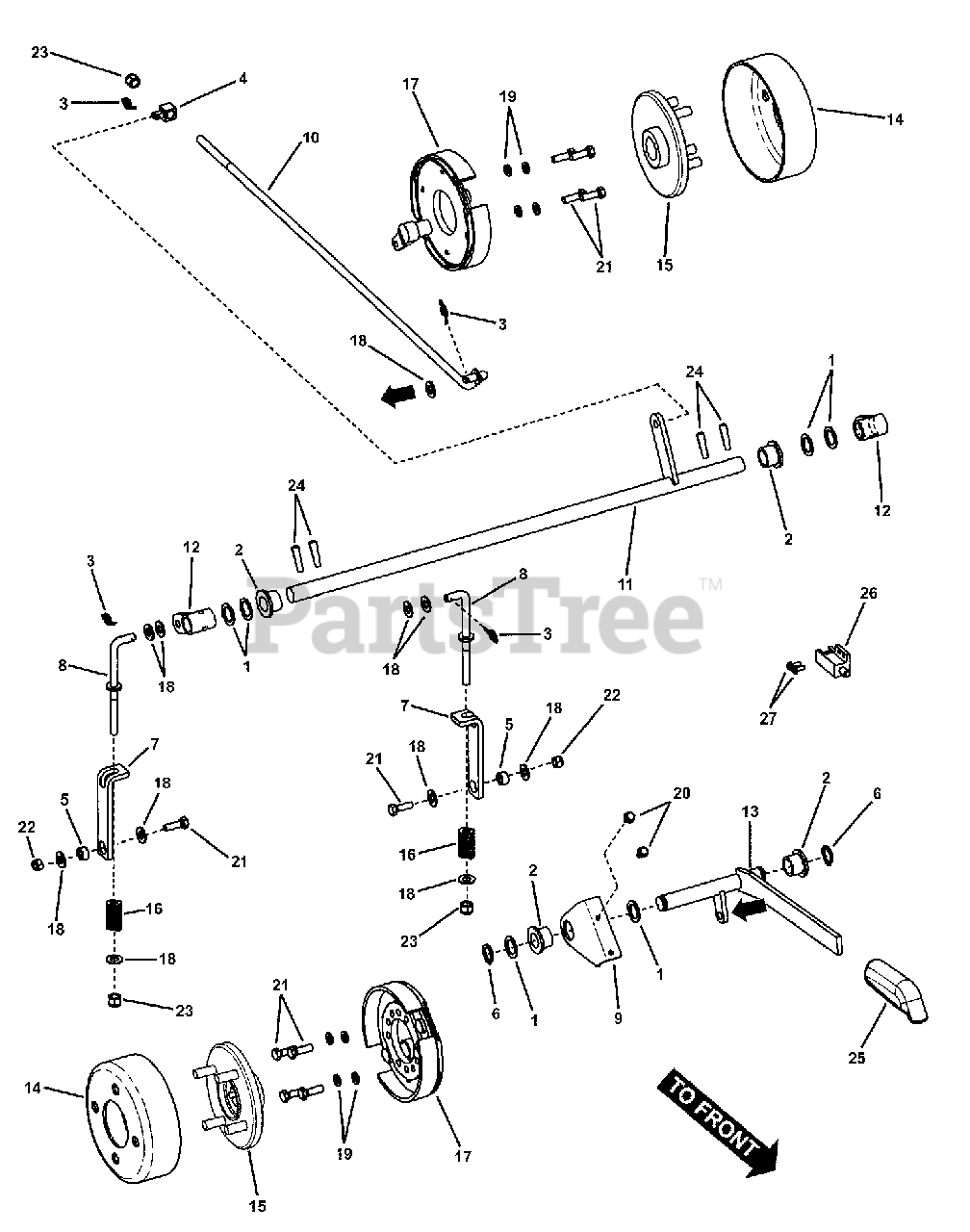

PARKING BRAKE ASSEMBLY Parts Diagram

  • Title

1

Snapper 7010935

WASHER, .77 I.D. Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7015363

BEARING, 3/4" I.D. Flange
(Superseded to 7015363SM)

$

$

Not available

3

Snapper 7091593

PIN, 3/8" Self Locking Cotter
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 14

0

4

Snapper 7024586

SWIVEL, Brake Link-PM
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7028620

SPACER, .340 I.D. x .63 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7010746

RETAINING RING, 3/4" External
(Superseded to 703975)

Note: Was 29738, WALDES #5160-75

$3.99

$

In Stock, Qty 19

0

7

Snapper 7041915

BRACKET, Brake
(Superseded to 7041915YP)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper 7046299

ROD, Brake Adjustment (3/8-16 thread)
(Superseded to 7046299YP)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper 7046692

BRACKET, Brake Support
(Superseded to 7046692YP)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 7046835

LINKAGE, Park Brake (3/8-16 thread)
(Superseded to 7046835YP)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper 7072727

WELDMENT, Brake Rod
(Superseded to 7072727YP)

$84.99

$

Usually ships in 2-12 days

0

12

Snapper 7072728

WELDMENT, Brake Hub Rear
(Superseded to 7072728YP)

$39.99

$

Usually ships in 2-12 days

0

13

Snapper 7072813

WELDMENT, Brake Handle
(Superseded to 7072813YP)

$63.99

$

Usually ships in 2-12 days

0

14

Snapper 7078222

BRAKE DRUM
(Superseded to 7078222YP)

$34.99

$

Usually ships in 2-12 days

0

15

Snapper 7078223

ASSEMBLY, Brake Hub
(Superseded to 7078223YP)

$128.99

$

Usually ships in 2-12 days

0

16

Snapper 7078238

SPRING, Brake
(Superseded to 7078238YP)

$20.99

$

Usually ships in 2-12 days

0

17

Snapper 7078252

BRAKE ASSY, (6 inch)
(Superseded to 7078252YP)

$182.99

$

Usually ships in 2-12 days

0

18

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 1 left!

0

21

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: Was 90636

$3.49

$

In Stock, Qty 16

0

22

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7092091

GROOVE PIN, 1/4 x 1-1/4" long
(Superseded to 7092091SM)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 1722302

HANDLE GRIP (Simplicity)
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

26

Snapper 7023355

SWITCH- DPDT (NC/NO)
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

27

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0
