CZT 19480 KWV (85672) - Snapper 48" Zero-Turn Mower, 19hp 48" SPINDLE ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

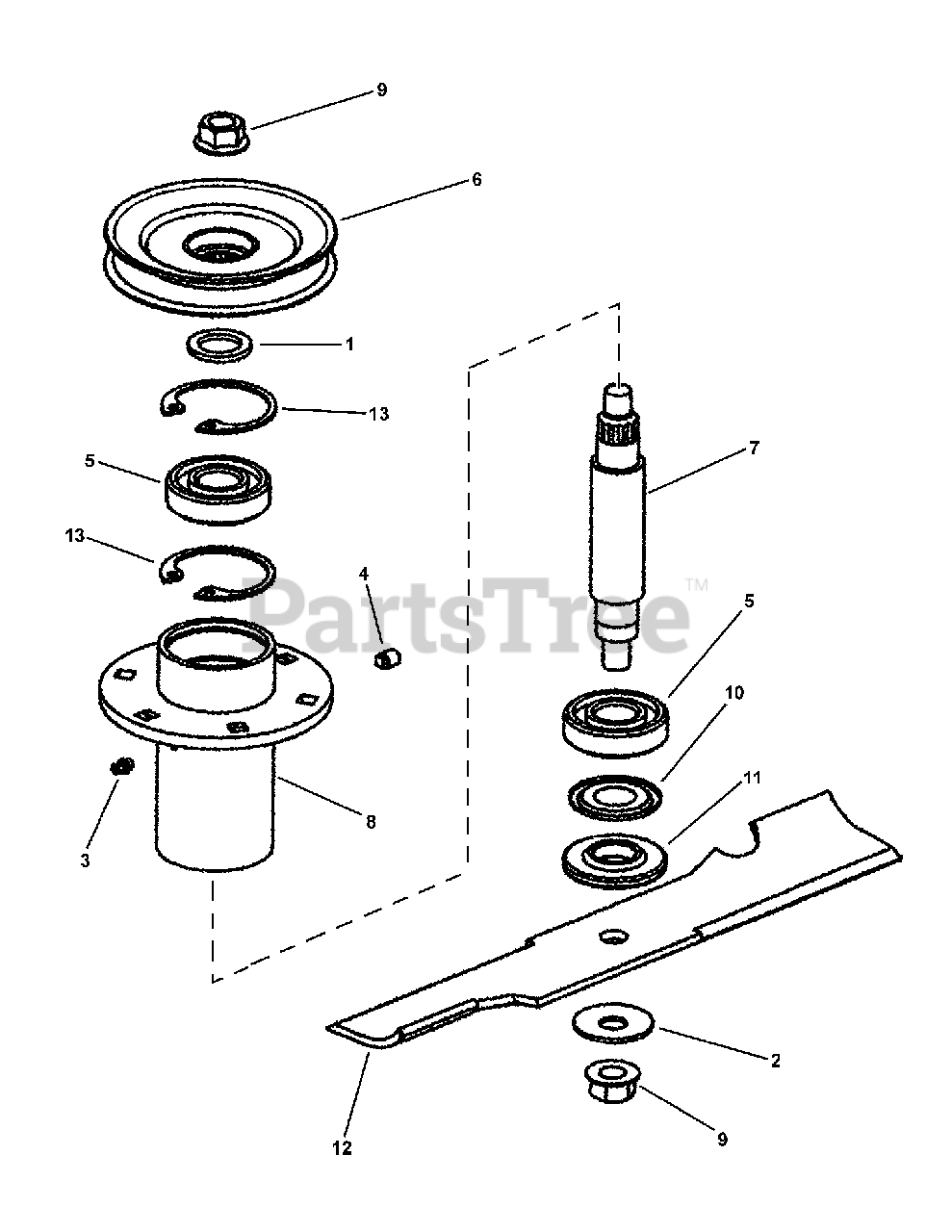

48" SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Snapper 7013370

WASHER
(Superseded to 7013370YP)

Note: for brg. Pre-seal kit

$

$

Not available

2

Snapper 7016440

WASHER, Beveled
(Superseded to 7016440SM)

$8.49

$

In Stock, Qty 20+

0

3

Snapper 7076998

LUBE FITTING, 1/4-28 Thread Forming
(Superseded to 703153)

Note: Was 29275, ALEMITE #3038-B

$3.99

$

In Stock, Qty 8

0

4

Snapper 7029384

GREASE VENT, Spindle
(Superseded to 7029384YP)

Note: ALEMITE #321839

$14.99

$

In Stock, only 2 left!

0

5

Snapper 7029422

BALL BEARING
(Superseded to 7029422YP)

$

$

Not available

6

Snapper 7034885

PULLEY, Driven 48" CZT
(Superseded to 7034885YP)

$62.99

$

In Stock, only 4 left!

0

7

Snapper 7045086

SHAFT, Spindle
(Superseded to 7045086YP)

$

$

Not available

8

Snapper 7045092

WELDMENT, 48" Spindle
(Superseded to 7045092YP)

$187.99

$

In Stock, only 1 left!

0

9

Snapper 7063237

NUT, 5/8-11 Hex Flange Lock, GR 5
(Superseded to 7063237YP)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7063238

SEAL, Nylos
(Superseded to 7063238YP)

$58.99

$

In Stock, only 2 left!

0

11

Snapper 7074401

WASHER, Spindle
(Superseded to 7074401YP)

$

$

Not available

12

Snapper 7075771

BLADE, 16-1/2"
(Superseded to 7075771BZYP)

$28.99

$

Usually ships in 2-12 days

0

13

Snapper 7091154

RETAINING RING, Internal
(Superseded to 7091154YP)

Note: TRUARC N5000-244

$4.49

$

In Stock, Qty 13

0
