CZT 19480 KWV (7085672) - Snapper 48" Zero-Turn Mower, 19hp TWIN STICK CONTROL ASSEMBLY (L.H.) Parts Diagram

48" Zero-Turn Mower, 19hp

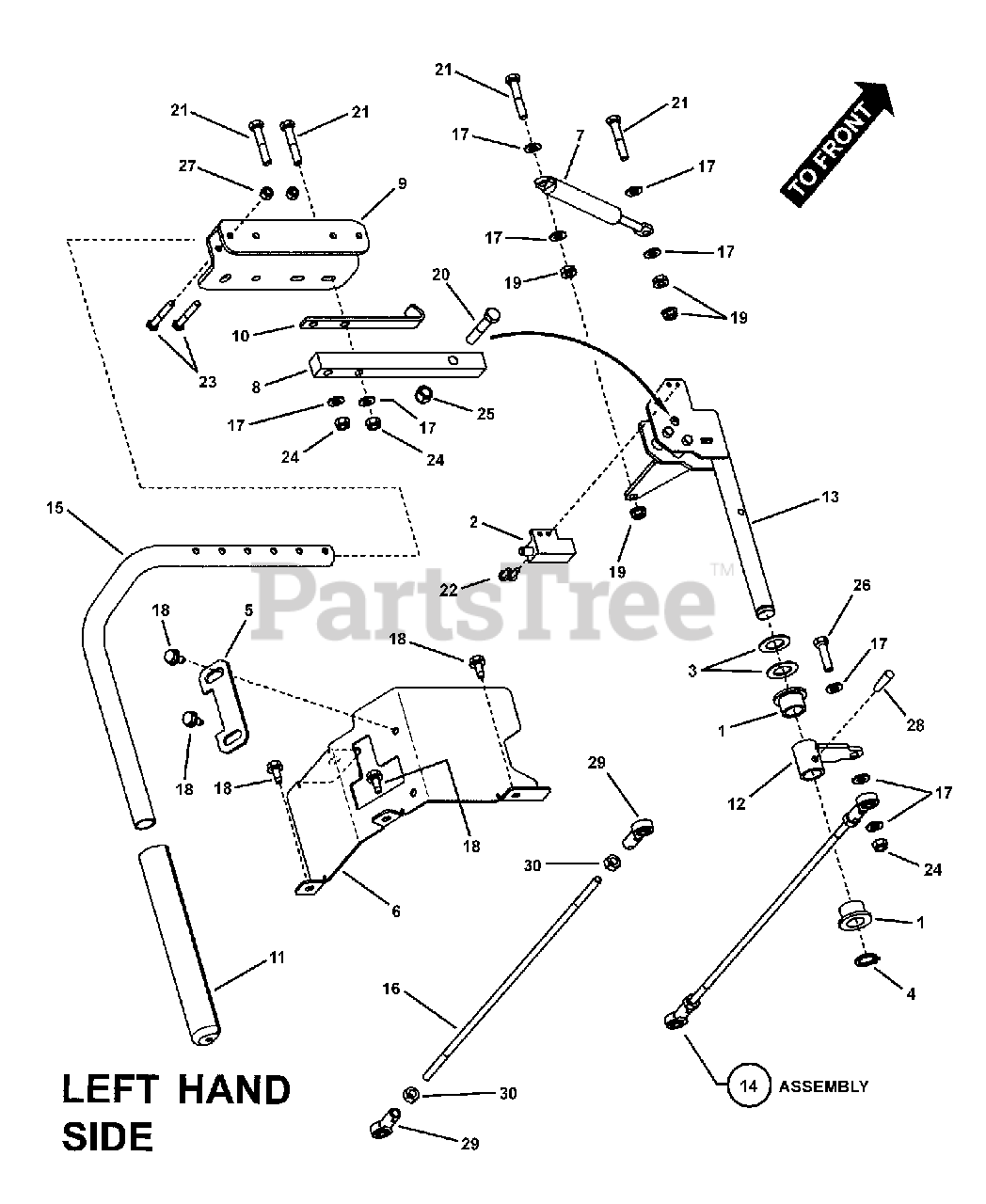

TWIN STICK CONTROL ASSEMBLY (L.H.) Parts Diagram

  • Title

1

Snapper Pro 7015363

BEARING, 3/4" I.D. Flange
(Superseded to 7015363SM)

$

$

Not available

2

Snapper Pro 7023355

SWITCH- DPDT (NC/NO)
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

3

Snapper Pro 7029617

WASHER, .77 I.D. Flat
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7029738

RETAINING RING, 3/4" External
(Superseded to 703975)

Note: WALDES #5160-75

$3.99

$

In Stock, Qty 19

0

5

Snapper Pro 7034566

PLATE, Speed Control
(Superseded to 7034566YP)

$6.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7041986

COVER, Left Hand
(Superseded to 7041986YP)

$53.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5022978

DAMPENER, Hydraulic
(Superseded to 5103511YP)

Note: C16-22472 SUPSA

$62.99

$

In Stock, Qty 16

0

8

Snapper Pro 7046587

TWIN BLOCK
(Superseded to 7046587YP)

$26.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7071825

BRACKET, Handle Adjustment
(Superseded to 7071825YP)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7071839

LEVER
(Superseded to 7071839YP)

$10.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7072212

GRIP, Twin Stick

$

$

Currently unavailable

12

Snapper Pro 7072780

WELDMENT, Stick Control
(Superseded to 7072780YP)

$49.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7072809

WELDMENT, Twin Stick
(Superseded to 7072809YP)

$88.99

$

Usually ships in 2-12 days

0

14

ASSEMBLY, Pump Control Linkage

Note: (Includes item #'s 16, 29 & 30)

$

$

Not available

15

Snapper Pro 7074661

HANDLEBAR, Twin Stick
(Superseded to 7074661YP)

$79.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7074144

LINKAGE, Pump Control (5/16-24 threads)
(Superseded to 7074144YP)

Note: per 7059118 linkage assembly

$11.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

18

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

19

Snapper Pro 7090585

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Snapper Pro 7090588

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

21

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

22

Snapper Pro 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

$3.49

$

In Stock, Qty 9

0

23

Snapper Pro 7091003

SCREW, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

26

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

27

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

28

Snapper Pro 7092091

GROOVE PIN, 1/4 x 1-1/4" long
(Superseded to 7092091SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 7027139

BALL JOINT, Pump Control Linkage (5/16-24 thread)

Note: per 7059118 linkage assembly

$

$

Currently unavailable

30

Snapper Pro 7091297

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

Note: per 7059118 linkage assembly

$3.99

$

In Stock, Qty 20+

0
