CZT 19480 KWV (7085672) - Snapper 48" Zero-Turn Mower, 19hp PUMPS, PULLEYS & MOTORS Parts Diagram

48" Zero-Turn Mower, 19hp

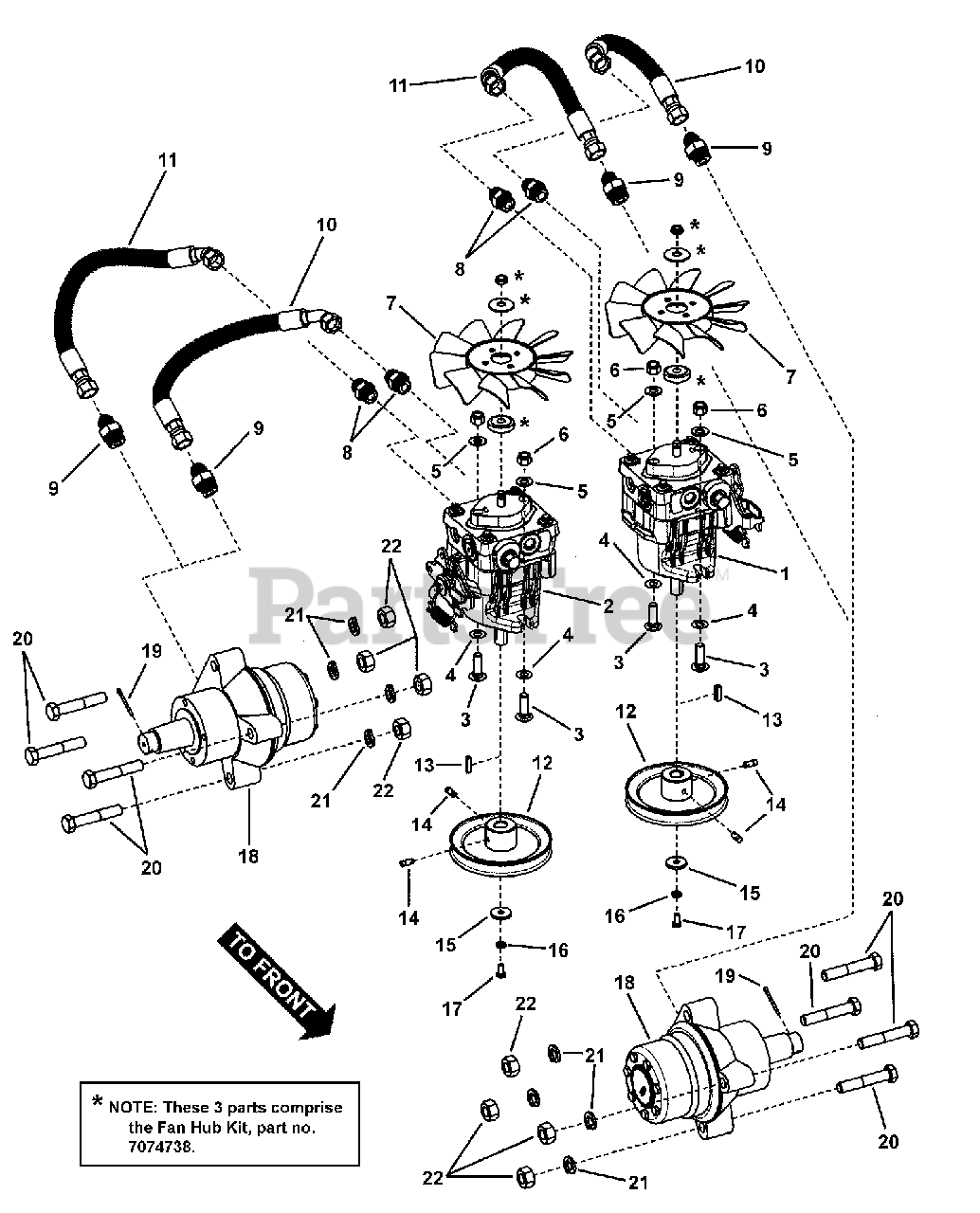

PUMPS, PULLEYS & MOTORS Parts Diagram

  • Title

1

Snapper Pro 7072522

PUMP, Hydro-Gear (Left Hand)
(Superseded to 7072522YP)

Note: BDP-10A-454 W/ RTN in Reverse (PG-3KCC-NC1X-XXX)

$1035.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7072521

PUMP, Hydro-Gear (Right Hand)
(Superseded to 7072521YP)

Note: BDP-10A-331, W/ RTN in Reverse (PG-34CC-NE1X-XXX)

$828.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage, GR 5

$

$

Not available

4

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7090122

WASHER, 3/8" SAE Flat

$

$

Not available

6

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 7074968

FAN, 7" Nylon, Counter-Clockwise
(Superseded to 7074968YP)

$37.99

$

In Stock, Qty 5

0

8

Snapper Pro 7034926

FITTING, Hydraulic
(Superseded to 7034926YP)

Note: Parker #8 F50X-S

$8.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 7035648

FITTING, Hydraulic
(Superseded to 7035648YP)

Note: Parker #8-10 F50X-S

$9.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 7034641

HOSE, 19" Hydraulic

Note: Parker #F4310637080808-19

$

$

Not available

11

Snapper Pro 7034667

HOSE, 22" Hydraulic
(Superseded to 7034667YP)

Note: Parker #F4310637080808-22

$131.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7100126

Pulley, Pump, Hydro Drive (5.00" O.D.)
(Superseded to 7100126YP)

Note: replaces 7078175 (4.50" O.D.)

$53.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7027199

KEY, M5 x M20
(Superseded to 7027199YP)

$3.49

$

In Stock, Qty 5

0

14

Snapper Pro 7091829

SET SCREW, 1/4-20 x 1/2" Socket Head w/ Patch Lock
(Superseded to 703139)

$3.49

$

In Stock, only 2 left!

0

15

Snapper Pro 7091627

WASHER, 1/4 x 1x 1/8" Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

16

Snapper Pro 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

17

Snapper Pro 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ

$2.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5023316

WHEEL MOTOR, Hydro Gear (HGM-12C-4005)
(Superseded to 5023316SM)

Note: Incl. Castle Nut & Woodruff Key (5/16 x 1" SAE J 502)

$

$

Not available

19

Snapper Pro 7091809

COTTER PIN, 1/8 x 1-1/4"
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

21

Snapper Pro 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

22

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

Snapper Pro 7074738

KIT, Fan Hub (Includes 1 each of 3 items shown below)
(Superseded to 7074738YP)

Note: (Hydro Gear p/n 7070632) for BDP-10A Pump w/Thru Shaft

$

$

Not available

HUB, Fan Mount

$

$

Not available

WASHER, Belleville, Fan Mount

$

$

Not available

NUT, Hex Nyloc

$

$

Not available
