CZT 19480 KWV (7085672) - Snapper 48" Zero-Turn Mower, 19hp ENGINE SUB-ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 19hp

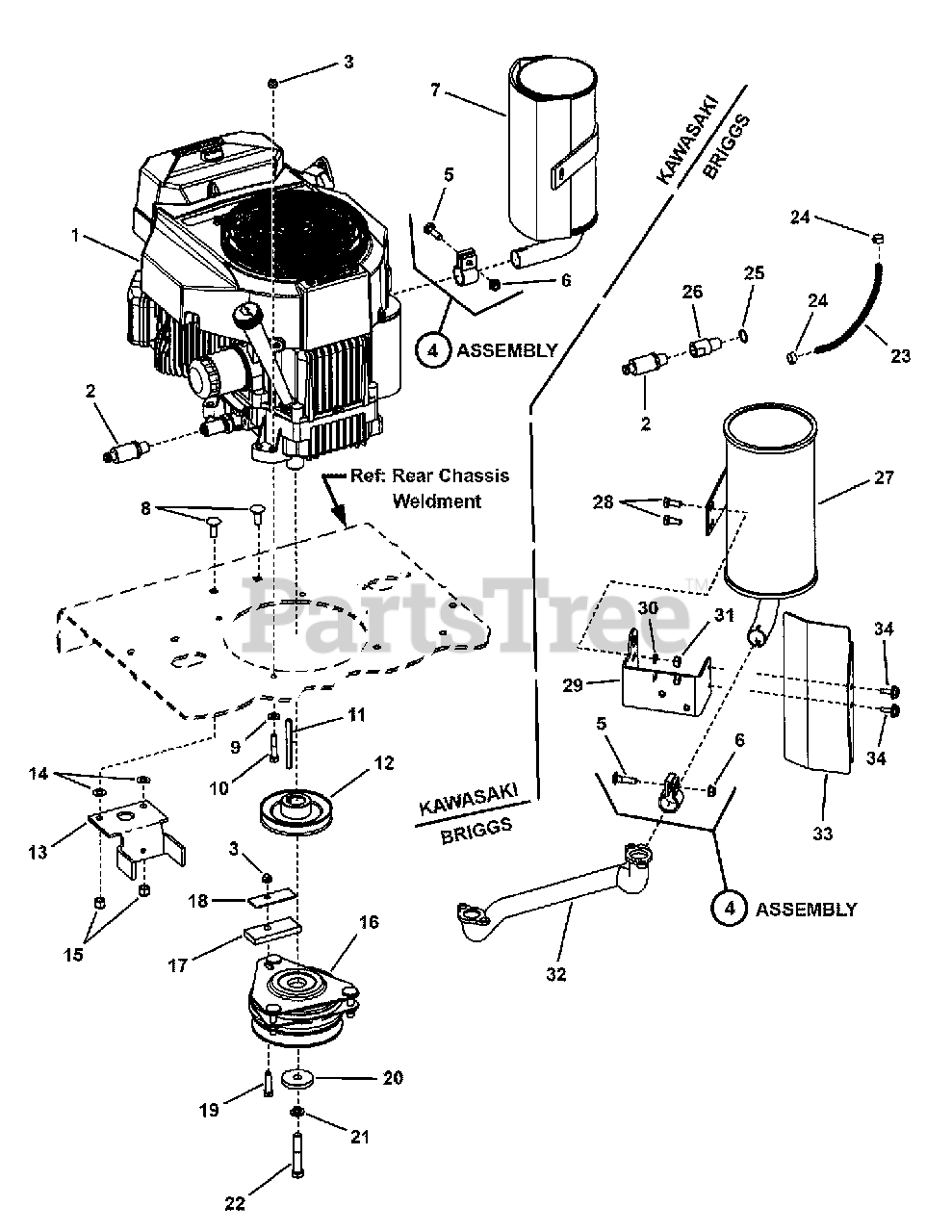

ENGINE SUB-ASSEMBLY Parts Diagram

  • Title

1

* ENGINE 19 HP Vert Shaft, Kawasaki Elec. Start Mod. FH580V-AS01

Note: (shown)

$

$

Not available

1

* ENGINE 19 HP Vert Shaft, Kawasaki Elec. Start Mod. FH580V-BS31R

Note: "KAI"

$

$

Not available

1

* ENGINE 21 HP Briggs & Stratton Mod. 385777-0115-E1

Note: (not shown)

$

$

Not available

2

Snapper Pro 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 8

0

3

Snapper Pro 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7078234

CLAMP ASSEMBLY
(Superseded to 691956)

Note: used on Briggs engines only

$15.99

$

In Stock, only 3 left!

0

5

Snapper Pro 7091928

BOLT, 5/16-18 x 1-1/4" Square Neck Carriage, GR 5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

6

Snapper Pro 7091601

NUT, 5/16-18 Hex Flange, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper Pro 7078154

MUFFLER

Note: used on Kawasaki engines only

$

$

Currently unavailable

8

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

9

Snapper Pro 7090188

WASHER, 5/16" Flat

$

$

Not available

10

Snapper Pro 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5

$

$

Not available

11

Snapper Pro 7078270

KEY, 1/4" Square x 3-1/4" Long
(Superseded to 7078270YP)

$5.49

$

In Stock, only 1 left!

0

12

Snapper Pro 7059099

PULLEY, Engine, Hydro Drive
(Superseded to 7059099YP)

$74.99

$

In Stock, only 2 left!

0

13

Snapper Pro 7034829

BRACKET, Clutch
(Superseded to 7034829YP)

$33.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

16

Snapper Pro 7075672

CLUTCH, Electric (Ogura Model # GT2.5-RM01)
(Superseded to 7075672YP)

$501.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 7029704

BUMPER, Electric Clutch
(Superseded to 7029704YP)

$23.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 7034448

WASHER, Rectangular Steel
(Superseded to 7034448YP)

$33.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

20

Snapper Pro 7075082

WASHER, .468 x 1.85 x .25 Flat

$12.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

22

Snapper Pro 7092071

SCREW, 7/16-20 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 7092071YP)

Note: with locking patch

$4.49

$

In Stock, only 2 left!

0

23

Snapper Pro 7078297

FUEL HOSE, 1/4" I. D. x 2-1/2"
(Superseded to 7078297YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 7029900

CLAMP, Fuel Line
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

25

Snapper Pro 7074954

O-RING
(Superseded to 7074954YP)

Note: Kawasaki p/n 670D-2016

$5.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 7022486

OIL DRAIN, Short (.375 NPT)

$

$

Currently unavailable

27

Snapper Pro 7078134

MUFFLER
(Superseded to 7078134YP)

Note: used on Briggs engines only

$128.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap, GR 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

29

Snapper Pro 7078141

BRACKET, Muffler (Briggs)
(Superseded to 7078141YP)

$23.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7090187

WASHER, 5/16" Split Lock

$

$

Not available

31

Snapper Pro 7091297

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

32

Snapper Pro 7078060

EXHAUST MANIFOLD, Vanguard
(Superseded to 7078060YP)

$84.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 7078136

HEAT SHIELD, Briggs
(Superseded to 7078136YP)

$22.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 7091016

SCREW, 1/4-20 x 5/8" Hex Head Self-Tap
(Superseded to 7091016YP)

Note: w/free spinning washer

$4.49

$

In Stock, Qty 5

0
